Removal Procedure

  1. Remove the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
  2. Recover the refrigerant from the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  3. Clean the valve seat area on the rear head.
  4. Remove the pressure relief valve (1).

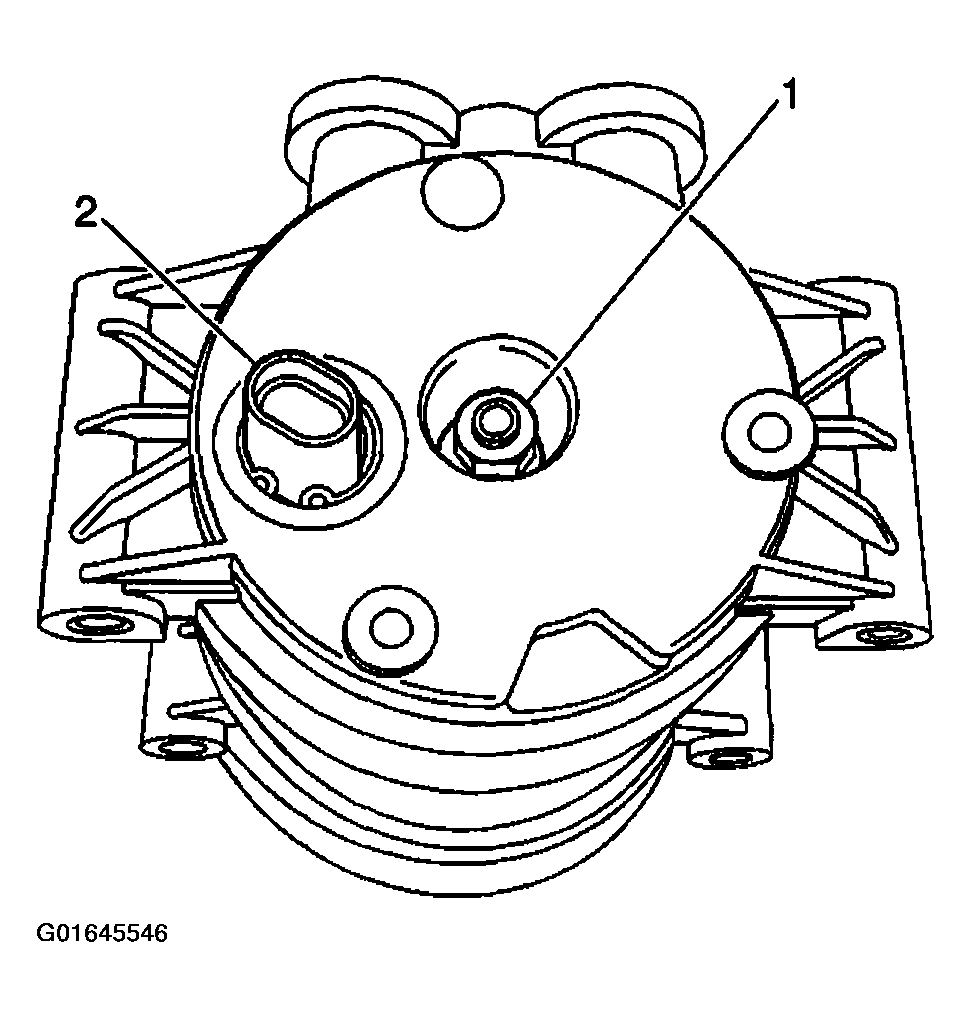

    Fig 1: Removing Compressor Pressure Relief Valve
    G01645546Courtesy of GENERAL MOTORS CORP.
