Installation Procedure

  1. Lubricate the O-ring of the new pressure relief valve (1) using new 525 viscosity refrigerant oil.
    NOTE: Refer to COMPONENT FASTENER TIGHTENING NOTICE in Cautions and Notices.
  2. Install the pressure relief valve (1).

    Tighten

    Tighten the pressure relief valve to 9 N.m (80 lb in).

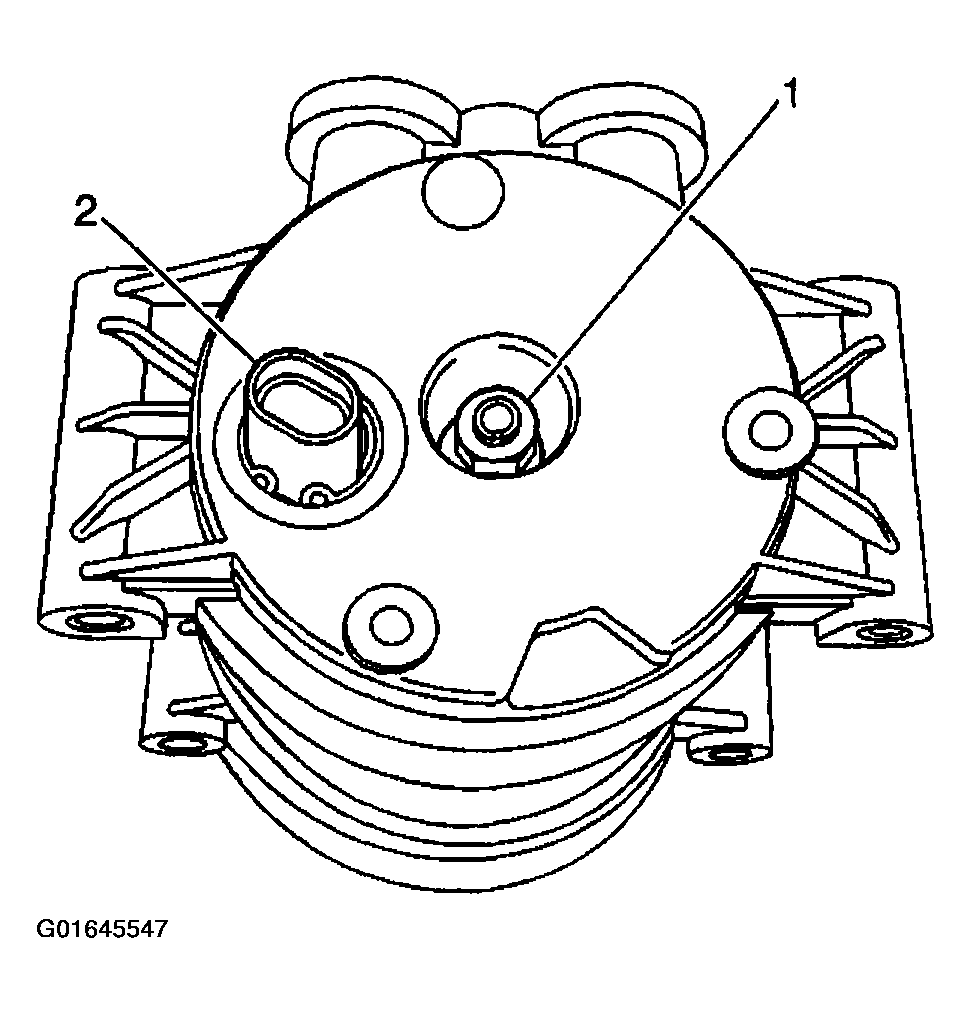

    Fig 1: Installing Compressor Pressure Relief Valve
    G01645547Courtesy of GENERAL MOTORS CORP.
  3. Evacuate and recharge the refrigerant system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  4. Leak test the fitting(s) of the repaired or reinstalled component using the J 39400-A.
  5. Install the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
