Installation Procedure
- Uncap or unplug all open connections.
- Install the compressor hose assembly to the vehicle.

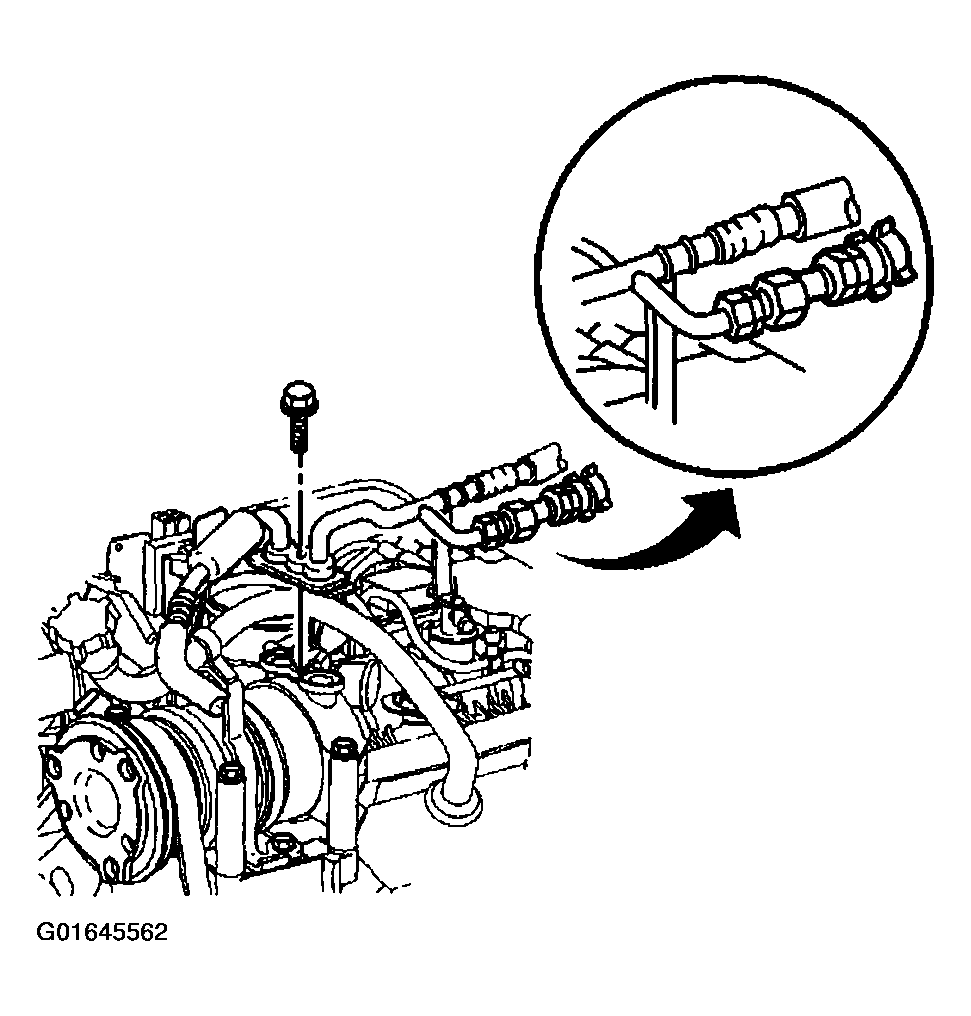

- Install transmission filler tube to the throttle cable bracket.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the bolt to the transmission filler tube to the oil indicator tube.
Tighten
Tighten the bolt to 12 N.m (106 lb in).
- Install new O-rings. Refer to O-RING REPLACEMENT .

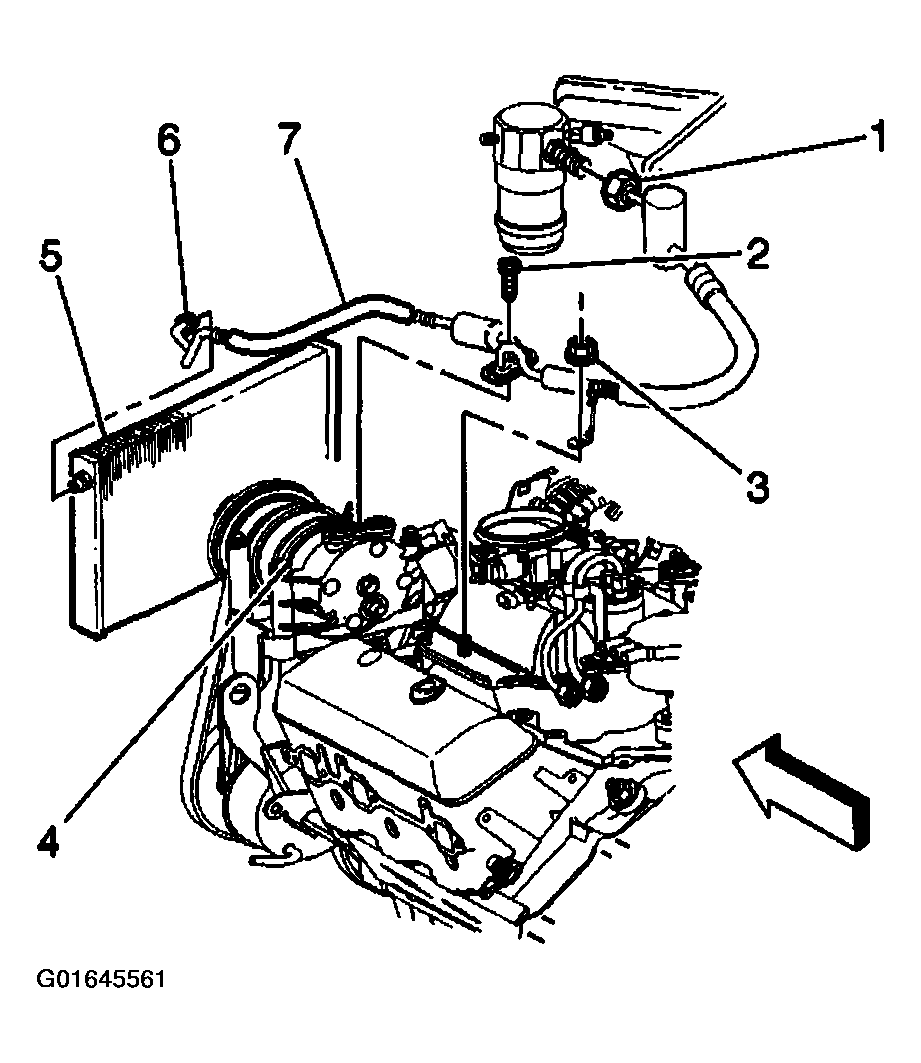

- Install the compressor hose assembly to the accumulator.
- Tighten the compressor hose assembly nut at the accumulator.
Tighten
Tighten the nut to 48 N.m (35 lb ft).
- Install new O-rings. Refer to O-RING REPLACEMENT .
- Install the compressor hose assembly to the condenser.
- Tighten the compressor hose assembly nut (6).
Tighten
Tighten the nut to 28 N.m (21 lb ft).
- Install the hose clamp bracket nut (3) to the engine stud.
Tighten
Tighten the nut to 5 N.m (44 lb in).
- Install new sealing washers. Refer to SEALING WASHER REPLACEMENT .
- Install the compressor hose assembly to the compressor.
- Tighten the compressor hose assembly bolt.
Tighten
Tighten the bolt to 34 N.m (25 lb ft).
- Install the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
- Install the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
- Evacuate and recharge the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
- Leak test the fittings of the component using the J 39400-A.
- Install the air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
