Installation Procedure

  1. Install the clutch coil to the compressor.
  2. Place the clutch coil assembly on the front head. Position the terminals (1) at the marked location.

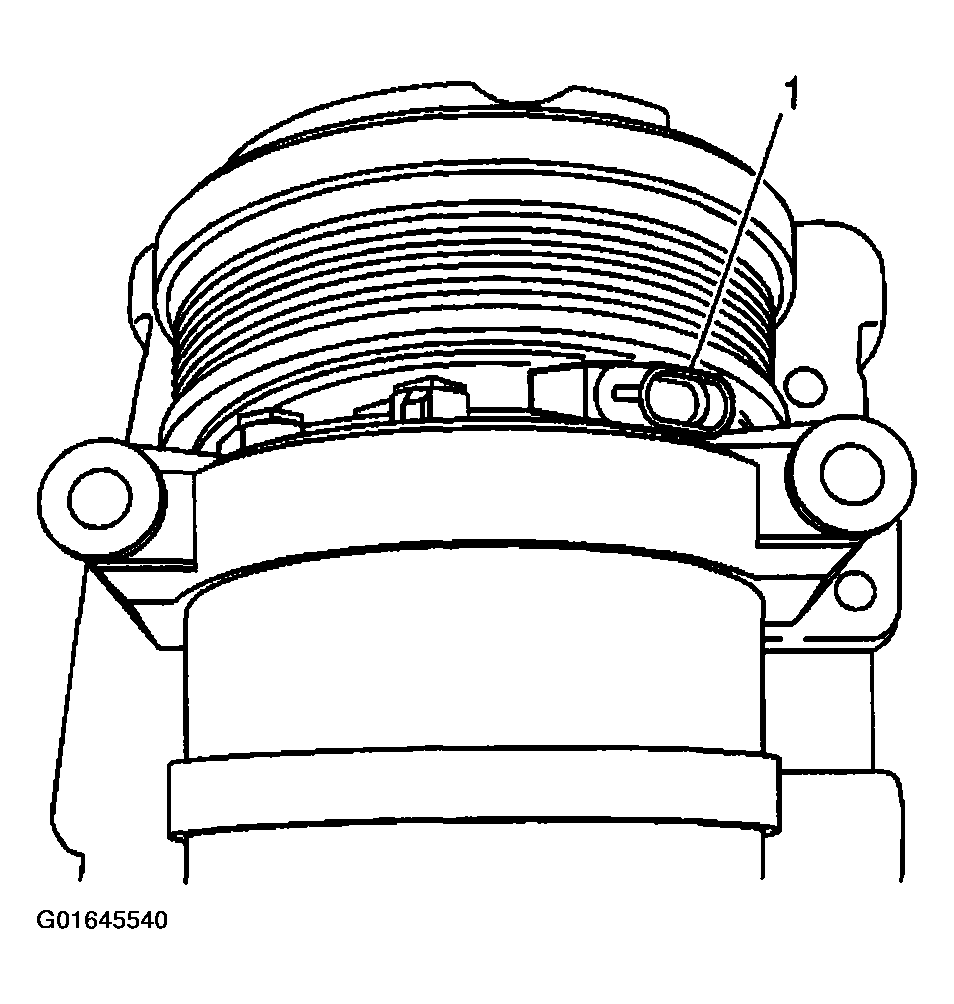

    Fig 1: Identifying Clutch Coil Assembly Terminals
    G01645540Courtesy of GENERAL MOTORS CORP.
  3. Place the J 33024  over the internal opening of the clutch coil housing (1).
  4. Align the J 33024  with the compressor front head.
  5. Center the J 8433-1  in the counter-sunk center hole of the J 33024.
  6. Install the two bolts and washers through the crossbar slots.
  7. Thread the bolts into the J 34992  in order to achieve full fixture thickness.
  8. Turn the center forcing screw of the J 8433-1  in order to force the clutch coil onto the front head. Ensure that the clutch coil and the J 33024  remain aligned during installation.

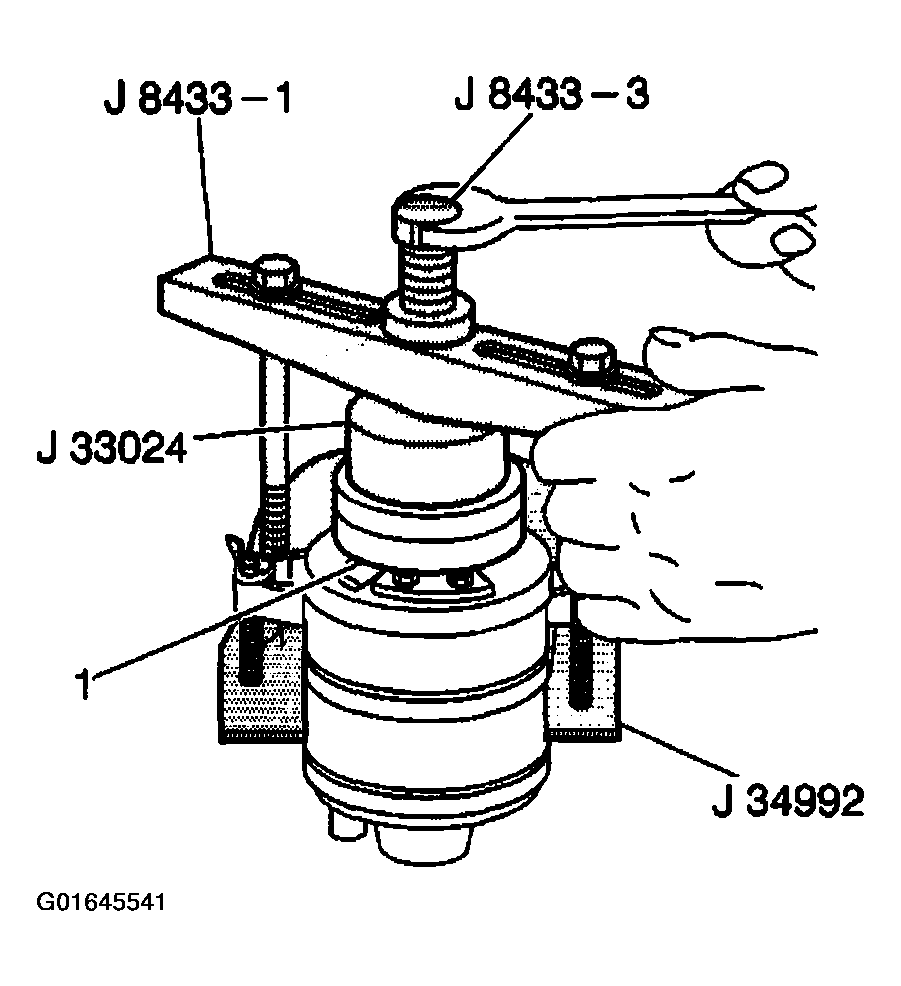

    Fig 2: Installing Clutch Coil Into Front Head
    G01645541Courtesy of GENERAL MOTORS CORP.
  9. When the coil is fully seated on the front head, mark the front head at 3 places 120 degrees apart.

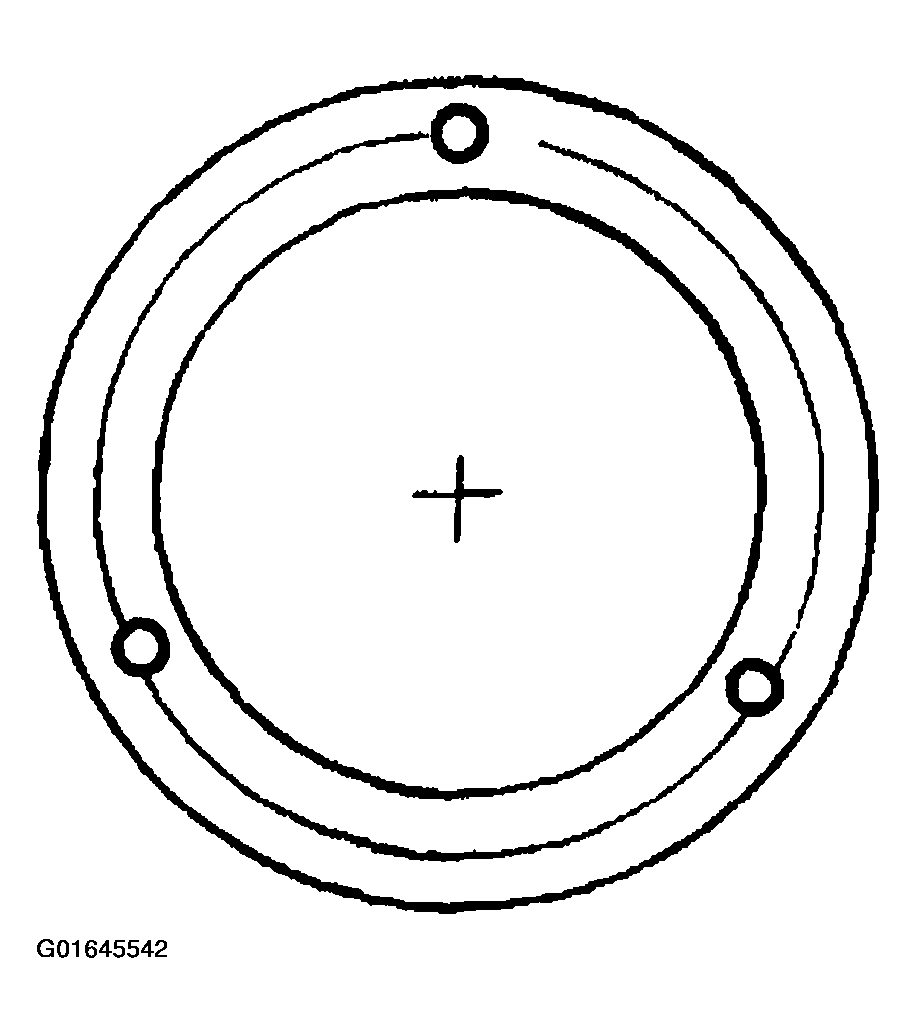

    Fig 3: Identifying Staking Locations On Front Head
    G01645542Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure that the stake size is only one-half the area of the punch tip. Ensure that the stake is only approximately 0.28-0.35 mm (0.010-0.015 in) deep.

  10. Use a 1/8 inch diameter drift punch (2) in order to stake the front head at 3 places 120 degrees apart (3), in order to ensure that the clutch coil (1) remains in position.

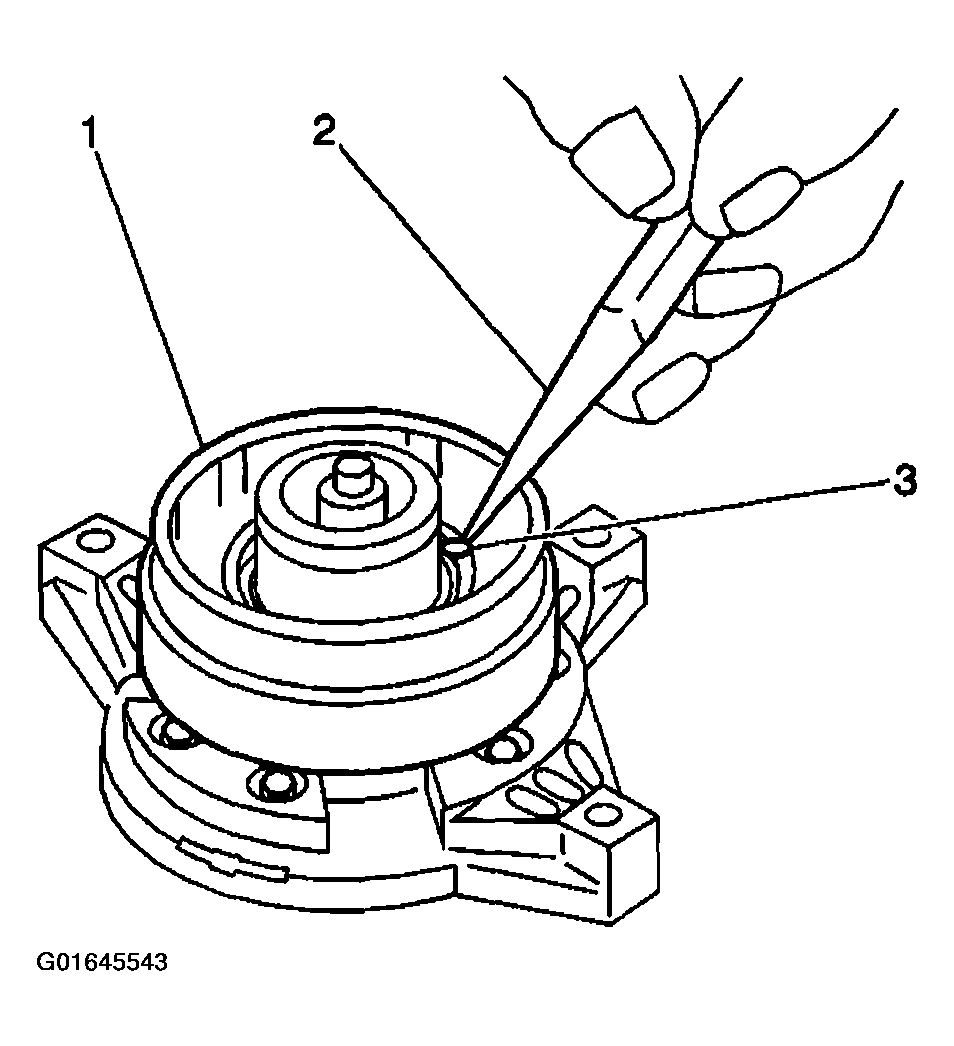

    Fig 4: Staking Front Head
    G01645543Courtesy of GENERAL MOTORS CORP.
  11. With the compressor mounted to the J 34992,  position the pulley rotor (1) and bearing assembly on the front head.

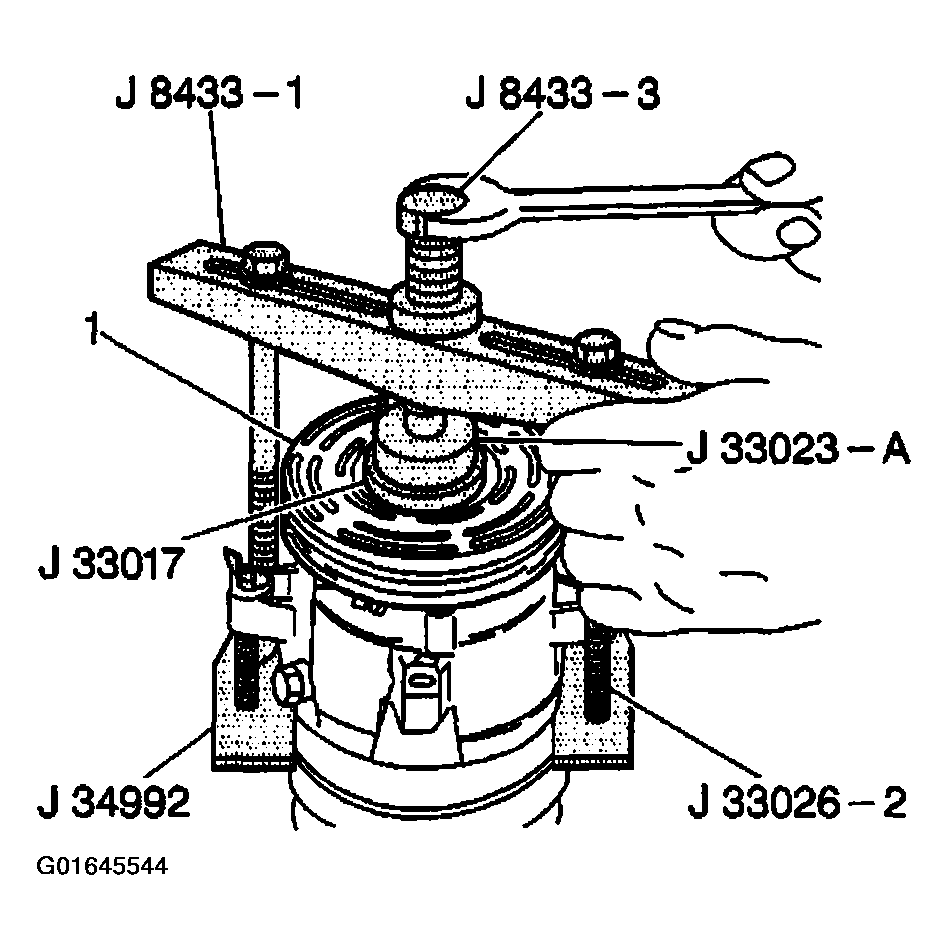

    Fig 5: Aligning Pulley Rotor & Bearing Assembly On Front Head
    G01645544Courtesy of GENERAL MOTORS CORP.
  12. Position the J 33017  and the J 33023-A  directly over the inner race of the bearing.
  13. Position the J 8433-1  on the J 33023-A.
  14. Assemble the two bolts and washers through the puller bar slots.
  15. Thread the bolts into the J 34992.  Ensure that the thread of the through bolts engages the full thickness of the J 34992.
  16. Tighten the center screw in the J 8433-1  in order to force the pulley rotor and bearing assembly onto the compressor front head.
  17. If the J 33017  slips off direct in-line contact with the inner race and bearing, perform the following steps:
    1. 17.1. Loosen the J 8433-3.
    2. 17.2. Realign the installer and the pilot in order to ensure that the J 33017  properly clears the front head.
  18. Use the J 6083  in order to install the following components:
    • The pulley rotor (1)
    • The retainer ring (2)

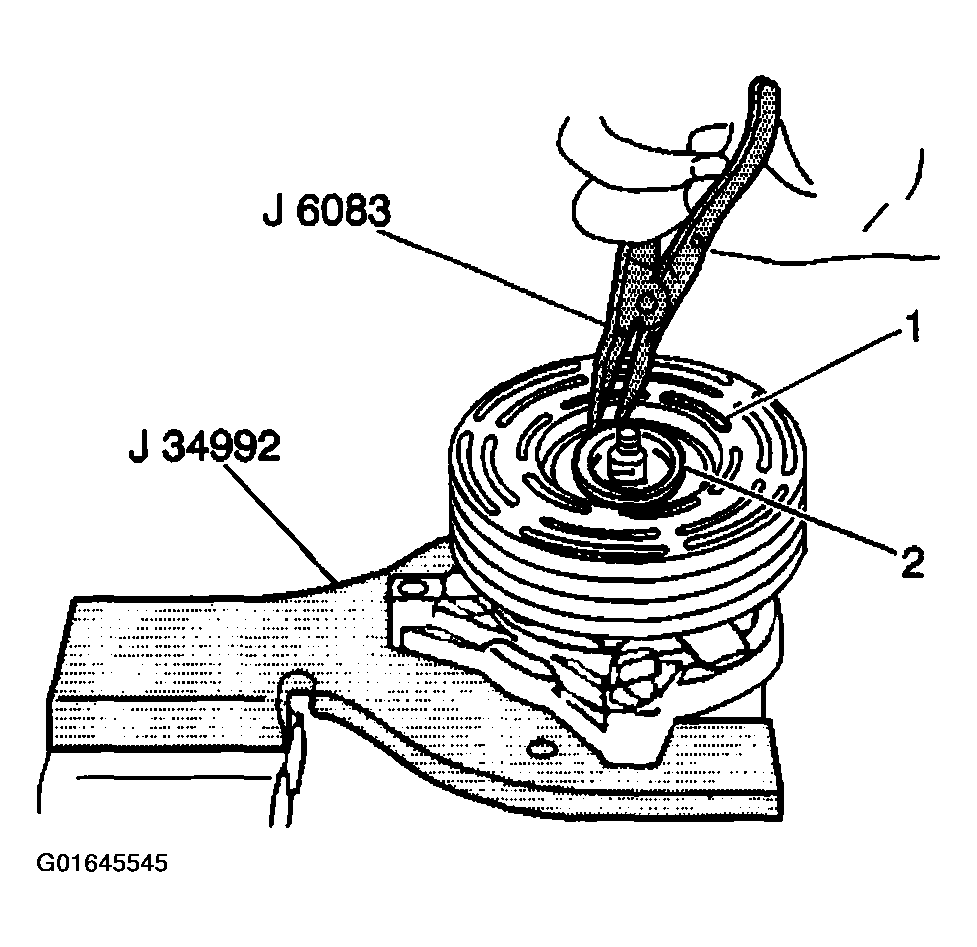

      • Fig 6: Installing Pulley Rotor & Retainer Ring
      G01645545Courtesy of GENERAL MOTORS CORP.
  19. Install the clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE/HUB ASSEMBLY REPLACEMENT .
  20. Install the compressor to the vehicle. Refer to COMPRESSOR REPLACEMENT .
  21. Evacuate and recharge the refrigerant system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  22. Leak test the fitting(s) of the repaired or reinstalled component using the J 39400-A.
