Removal Procedure

  1. Remove the left body side trim panel. Refer to TRIM PANEL REPLACEMENT LEFT BODY SIDE in Interior Trim.
  2. Remove the electrical connector.
  3. Remove the screws from the auxiliary heater blower motor resistor assembly.
  4. Remove the auxiliary heater blower motor resistor assembly (1) from the heater case.

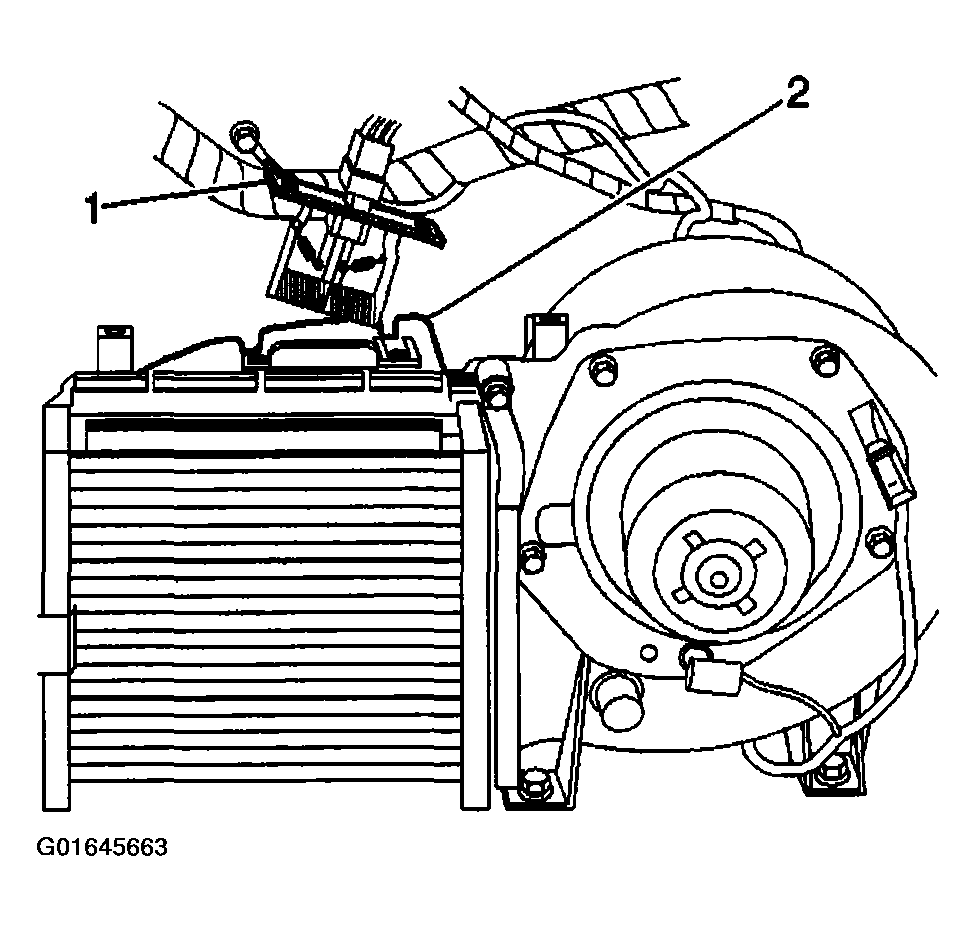

    Fig 1: Removing Blower Motor Resistor - Heater Auxiliary
    G01645663Courtesy of GENERAL MOTORS CORP.
