Installation Procedure

  1. Install the auxiliary heater blower motor resistor assembly (1) into the heater case.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  2. Install the auxiliary heater blower motor resistor assembly screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

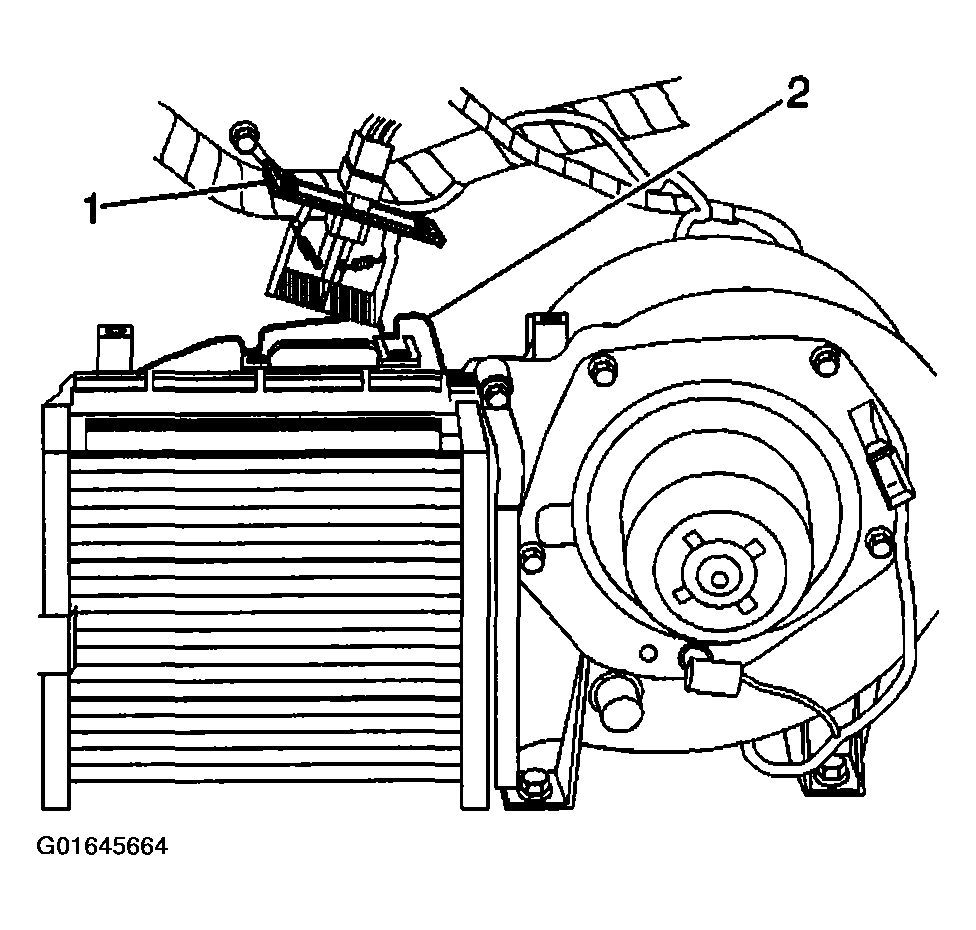

    Fig 1: Installing Blower Motor Resistor - Heater Auxiliary
    G01645664Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical connector.
  4. Install the left body side rear trim panel. Refer to TRIM PANEL REPLACEMENT LEFT BODY SIDE in Interior Trim.
