Removal Procedure

  1. Remove the left body side trim panel. Refer to TRIM PANEL REPLACEMENT LEFT BODY SIDE in Interior Trim.
  2. Remove the electrical connector.
  3. Remove the screws that retain the resistor (4) to the case.
  4. Remove the auxiliary A/C blower motor resistor assembly from the case.

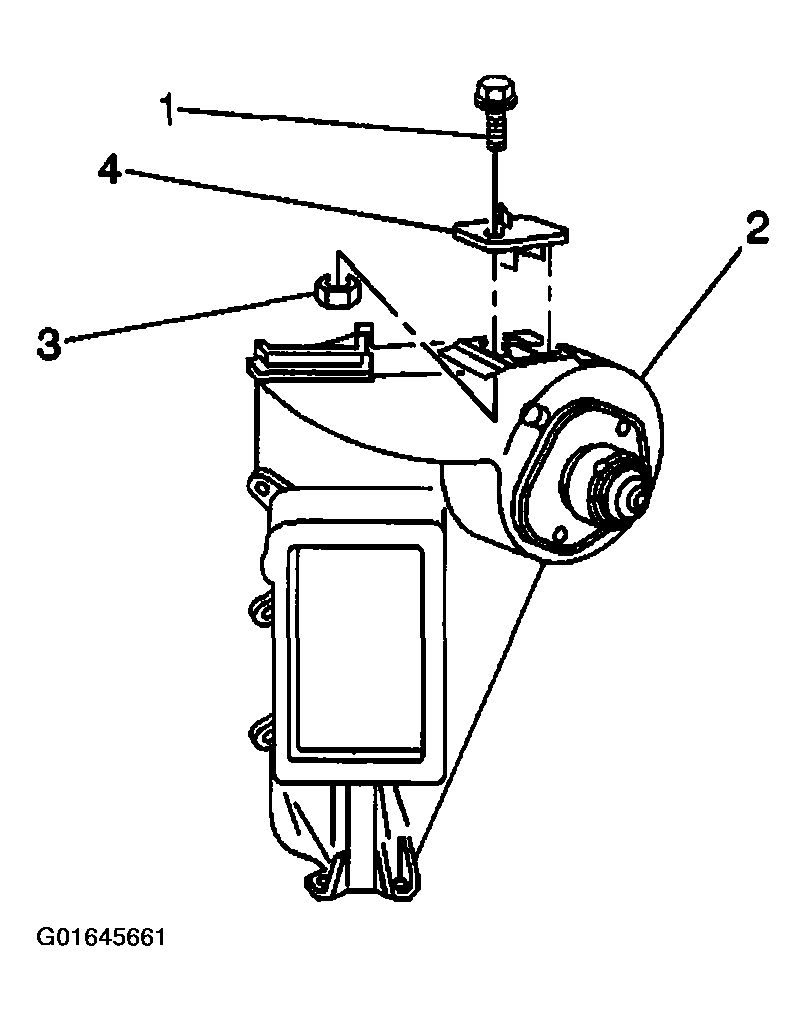

    Fig 1: Removing Blower Motor Resistor - Auxiliary Air Conditioning
    G01645661Courtesy of GENERAL MOTORS CORP.
