Installation Procedure

  1. Install the auxiliary A/C blower motor resistor assembly into the case.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.

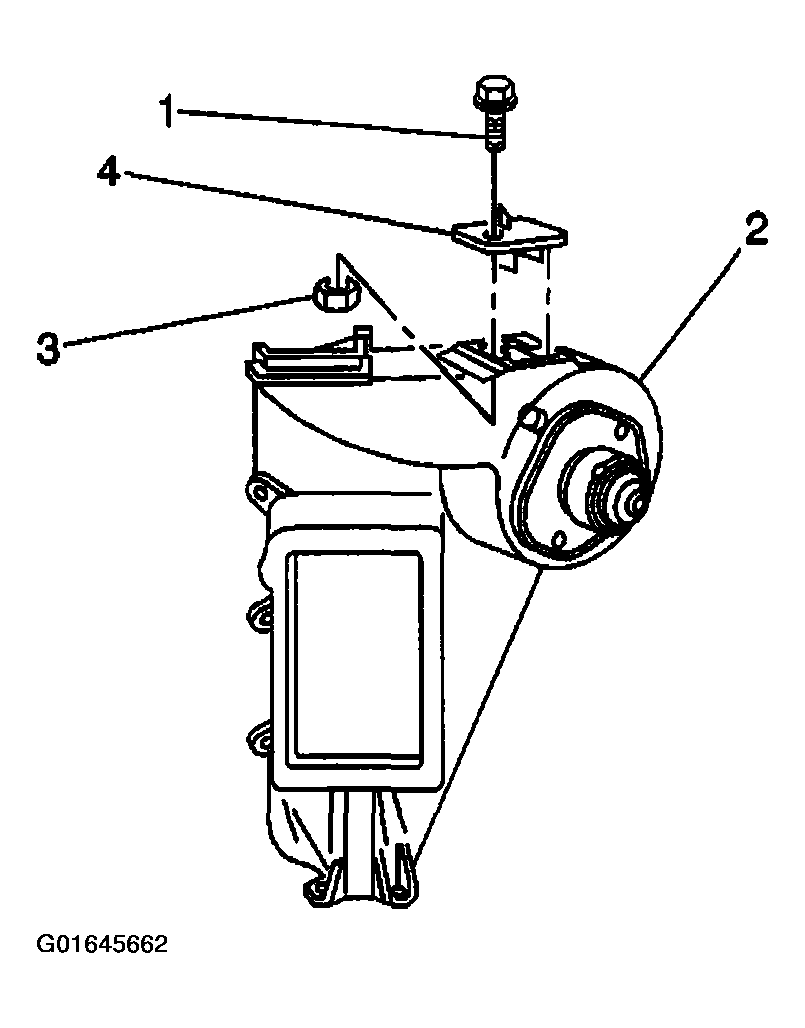

    Fig 1: Installing Blower Motor Resistor - Auxiliary Air Conditioning
    G01645662Courtesy of GENERAL MOTORS CORP.
  2. Install the screws that retain the resistor to the case.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the electrical connector.
  4. Install the left body side rear trim panel. Refer to TRIM PANEL REPLACEMENT LEFT BODY SIDE in Interior Trim.
