Removal Procedure

  1. Remove the air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
  2. Remove the windshield washers and the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  3. Disconnect the electrical connectors.
  4. Remove the screws from the blower motor resistor assembly.
  5. Remove the blower motor resistor assembly.

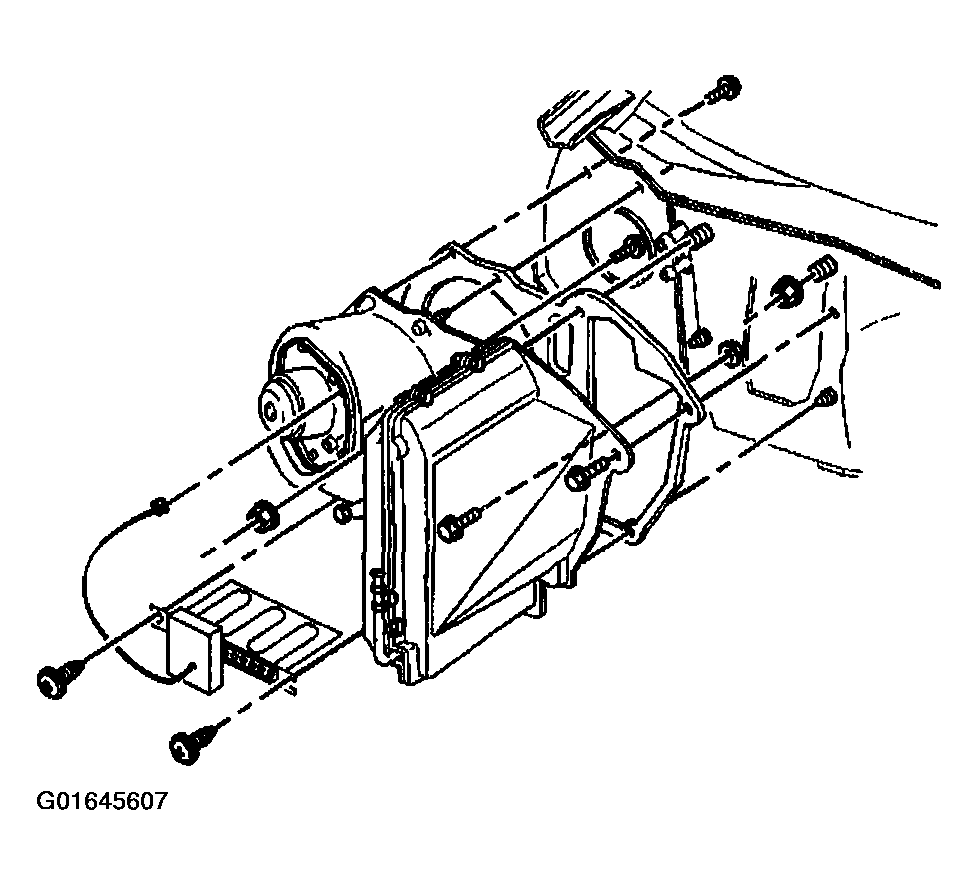

    Fig 1: Removing Blower Motor Resistor Assembly (YG6)
    G01645607Courtesy of GENERAL MOTORS CORP.
