Removal Procedure

Important:  The blower motor relay is an integral part of the blower motor resistor and can not be serviced separately from the resistor.

1. Remove the air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
2. Remove the windshield washers and the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
3. Disconnect the electrical connectors.
4. Remove the screws from the blower motor resistor assembly.
5. Remove the blower motor resistor assembly (4).

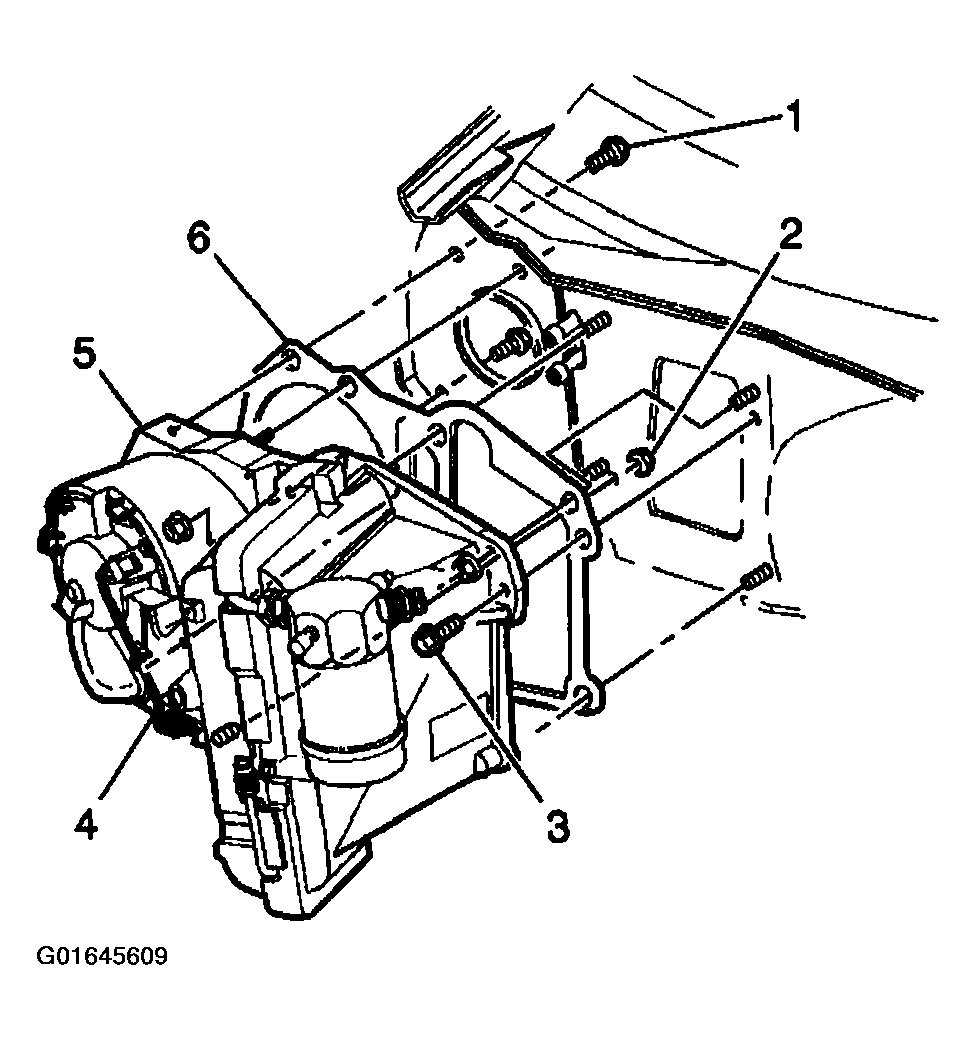

   Fig 1: Removing Blower Motor Resistor Assembly (C60)

   Courtesy of GENERAL MOTORS CORP.
