Installation Procedure

  1. Install the blower motor resistor assembly (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

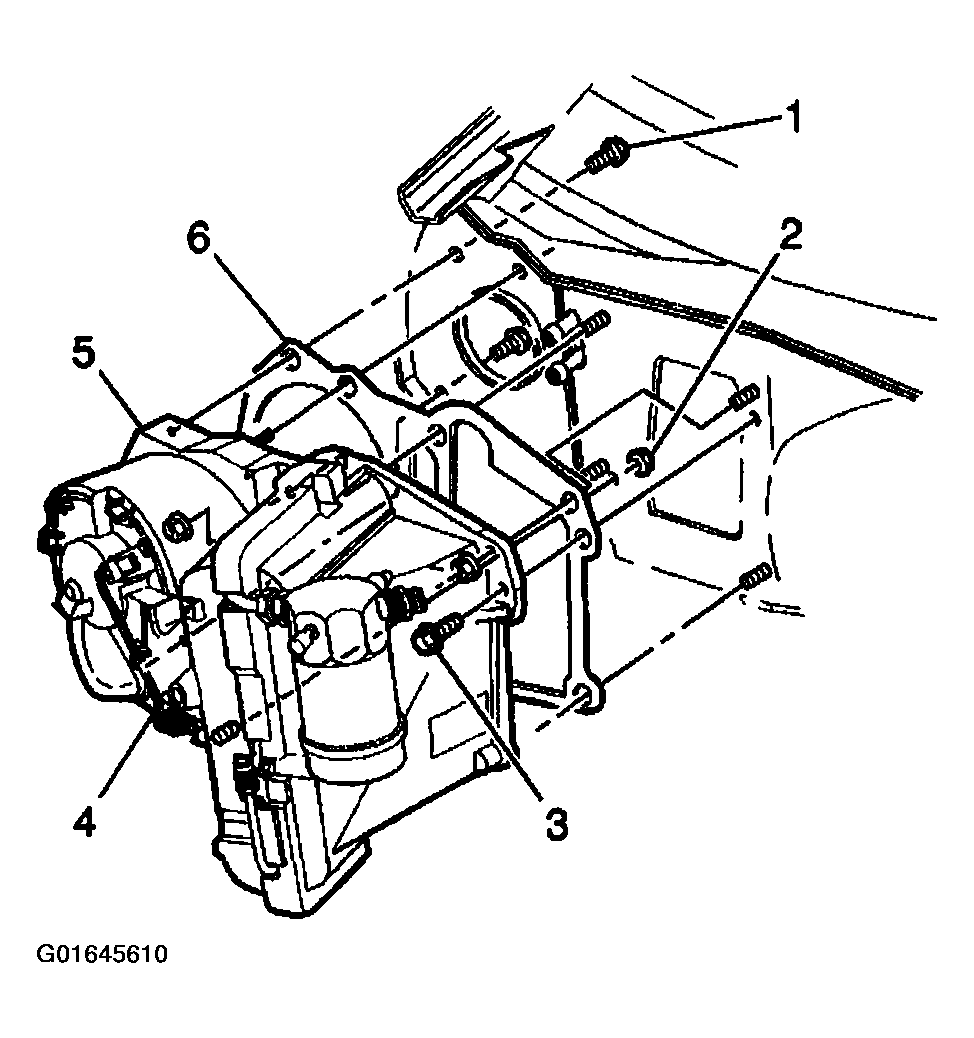

    Fig 1: Installing Blower Motor Resistor Assembly (C60)
    G01645610Courtesy of GENERAL MOTORS CORP.
  2. Install the screws to the blower motor resistor assembly.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Connect the electrical connectors.
  4. Install the windshield washers and the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  5. Install the air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
