Installation Procedure

  1. Install the blower motor to the case.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the blower motor to the case.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

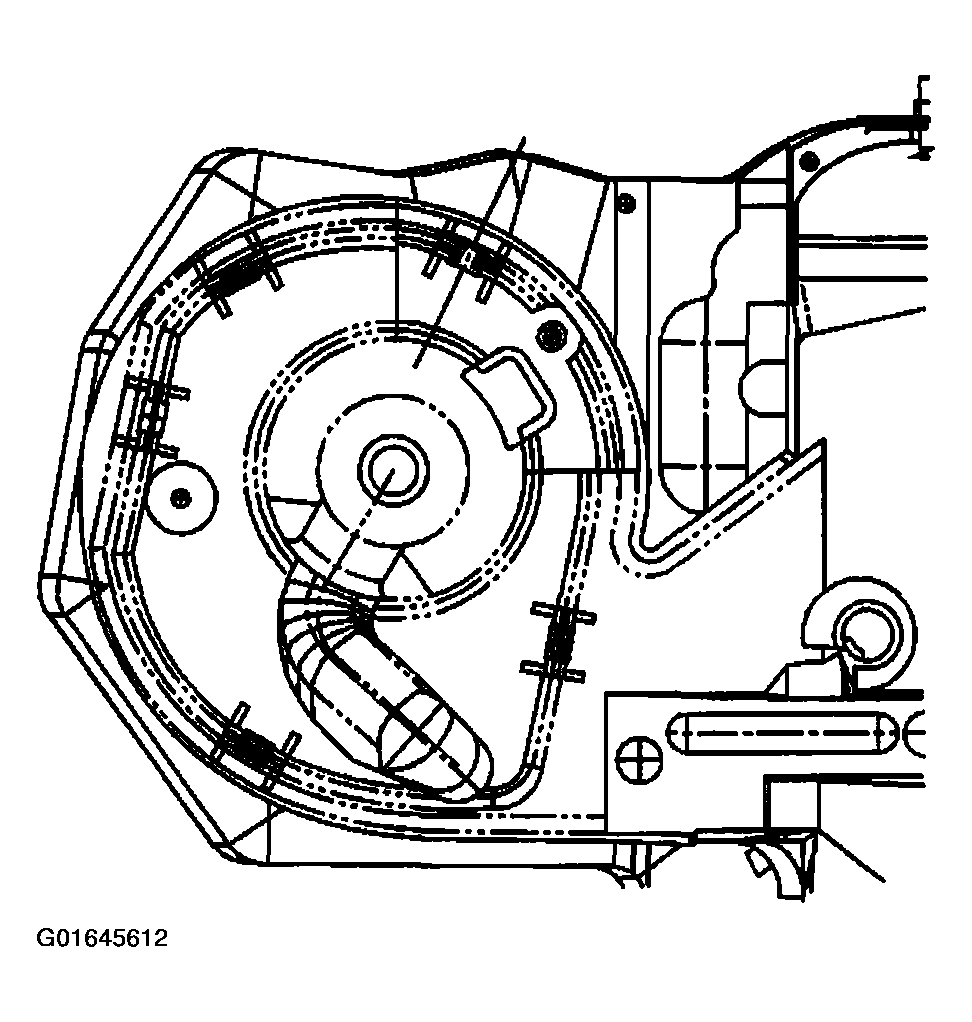

    Fig 1: View Of Blower Motor
    G01645612Courtesy of GENERAL MOTORS CORP.
  3. Install the cooling tube to the motor.
  4. Install the acoustic cover over the blower motor.
  5. Install the 2 screws that retain the cover to the case.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Attach the 5 clips to the 5 clip lands in order to hold the motor and the case acoustic covers together.
  7. Connect the blower motor electrical connector.
  8. Install the coolant recovery and the windshield washer fluid reservoir assembly. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
