Removal Procedure

  1. Remove the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.

    Important:  Note the location of the blower motor electrical connectors before disconnecting them.

  2. Disconnect the blower motor electrical connectors.
  3. Remove the retaining screws.

    Important:  Note the orientation of the blower motor assembly before removing the assembly from the case.

  4. Remove the blower motor assembly from the blower case.

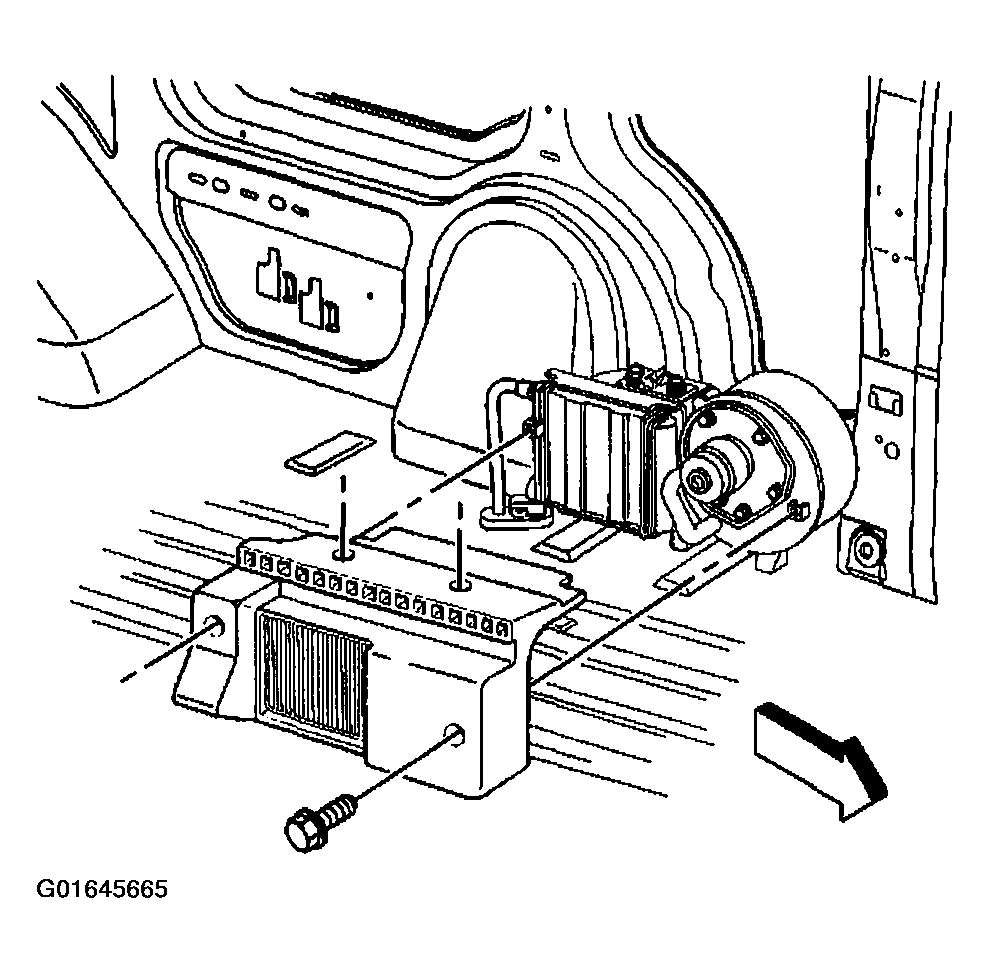

    Fig 1: Removing Blower Motor - Heater Auxiliary
    G01645665Courtesy of GENERAL MOTORS CORP.
