Installation Procedure

  1. Install the blower motor assembly to the blower case.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

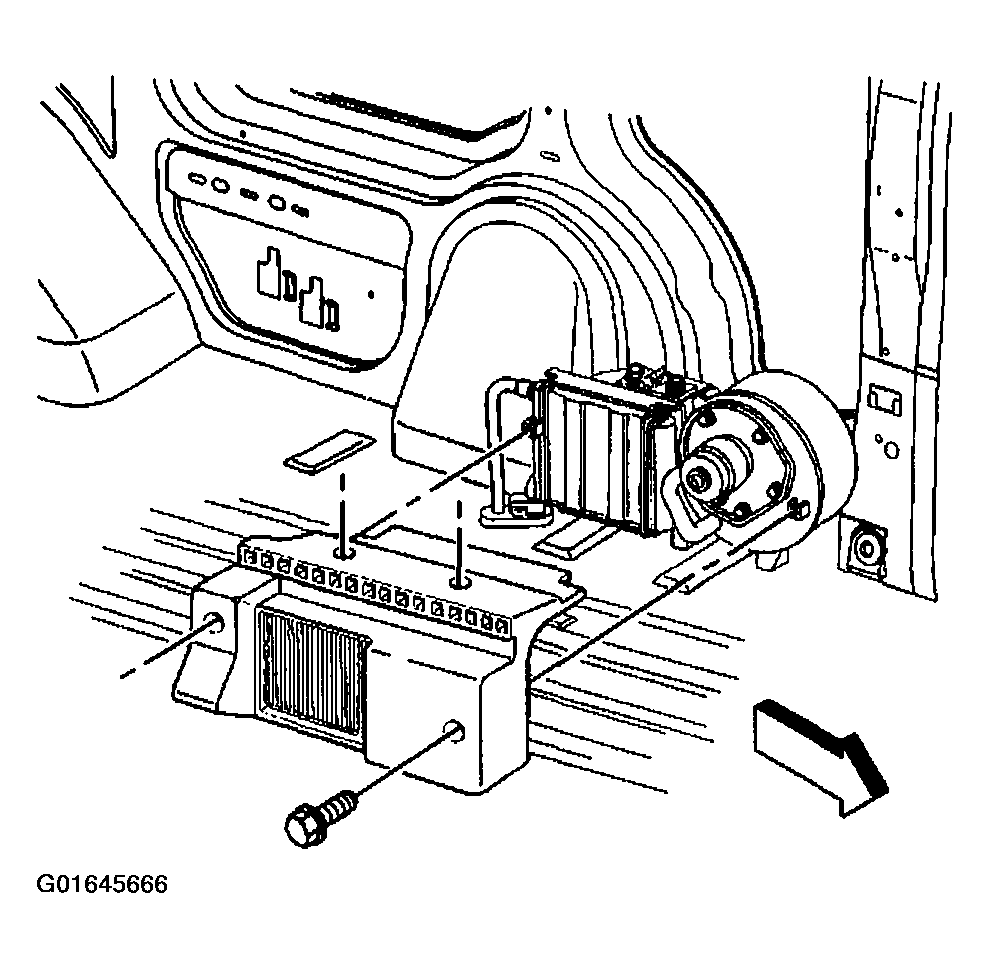

    Fig 1: Installing Blower Motor - Heater Auxiliary
    G01645666Courtesy of GENERAL MOTORS CORP.
  2. Install the blower motor retaining screws.

    Tighten

    Tighten the blower motor retaining screws to 4 N.m (35 lb in).

  3. Connect the blower motor electrical connectors.
  4. Install the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
