Removal Procedure

  1. Remove the left body side trim panel. Refer to TRIM PANEL REPLACEMENT LEFT BODY SIDE in Interior Trim.
  2. Remove the cooling tube from the case and the motor.
  3. Disconnect the electrical connectors.
  4. Remove the screws that retain the blower motor to the case.
  5. Remove the blower motor assembly from the case.

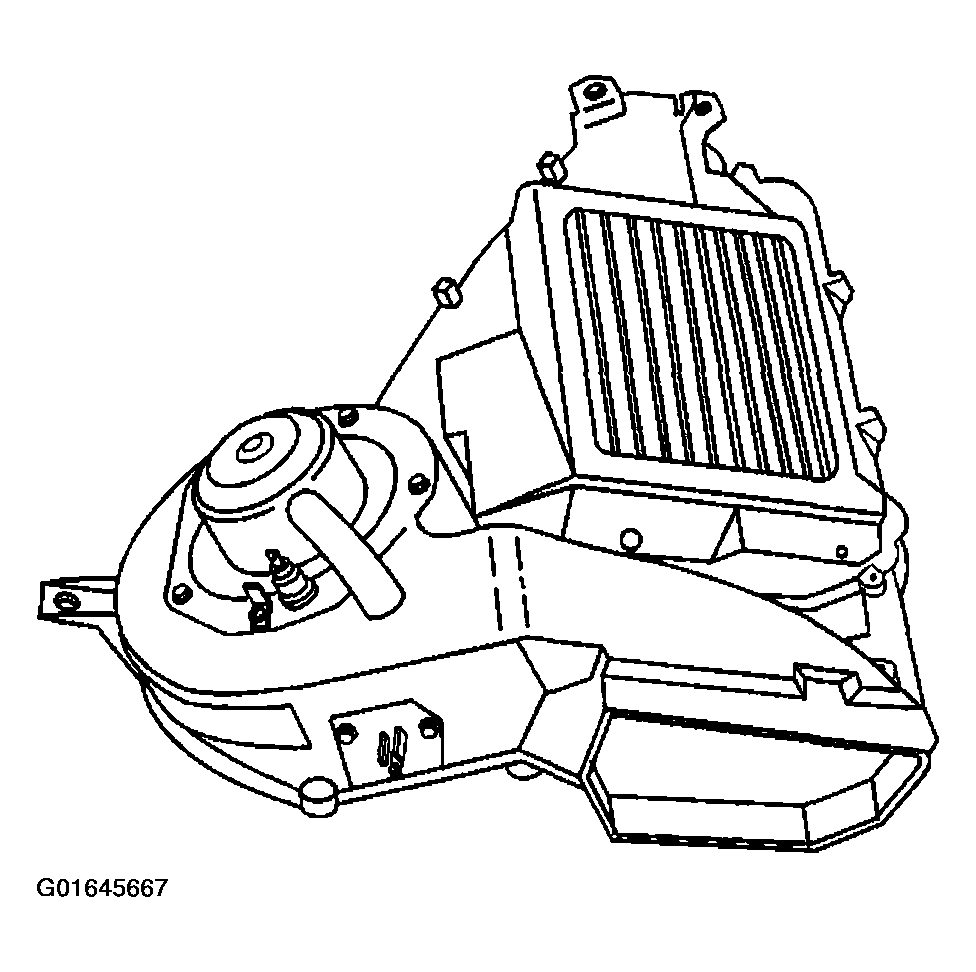

    Fig 1: Removing Auxiliary Air Conditioning Blower Motor
    G01645667Courtesy of GENERAL MOTORS CORP.
