Installation Procedure

  1. Install the blower motor assembly to the case.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.

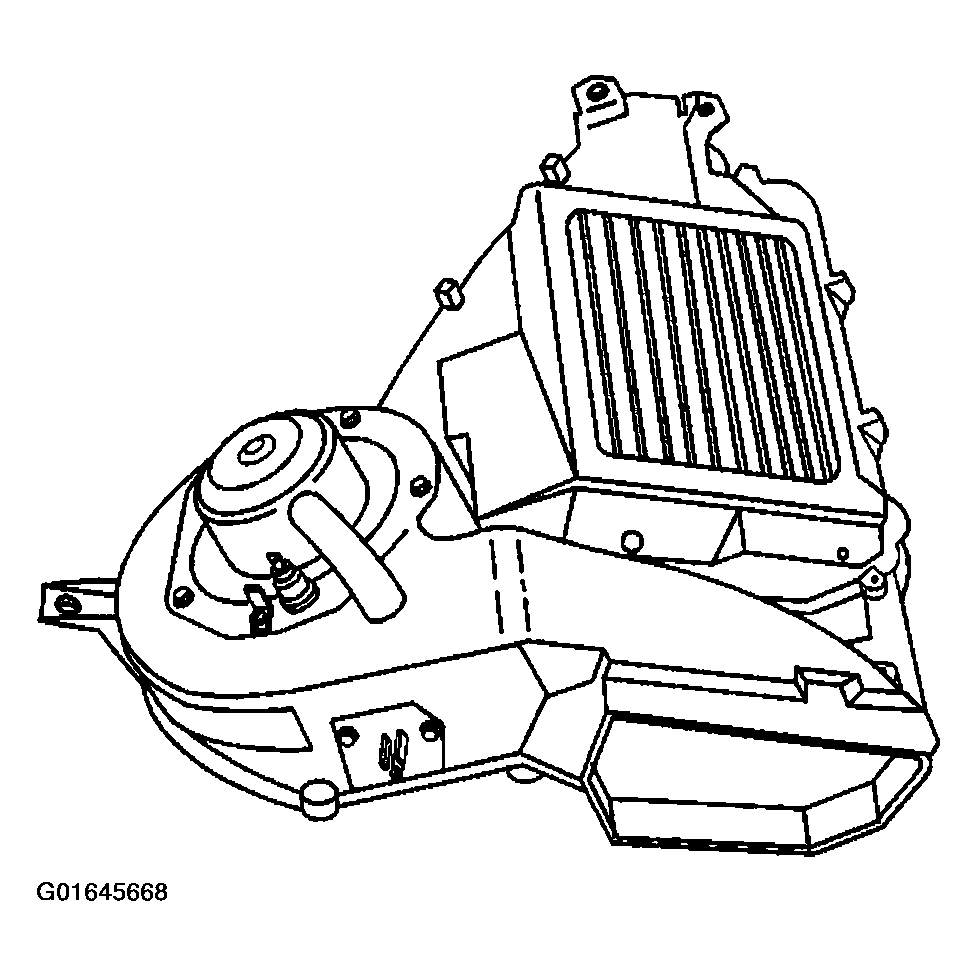

    Fig 1: Installing Auxiliary Air Conditioning Blower Motor
    G01645668Courtesy of GENERAL MOTORS CORP.
  2. Install the screws that retain the blower motor to the case.

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  3. Connect the electrical connectors.
  4. Install the cooling tube to the motor and to the case.
  5. Install the left body side rear trim panel. Refer to TRIM PANEL REPLACEMENT LEFT BODY SIDE in Interior Trim.
