Installation Procedure

  1. Install the air temperature door (1) to the heater case.

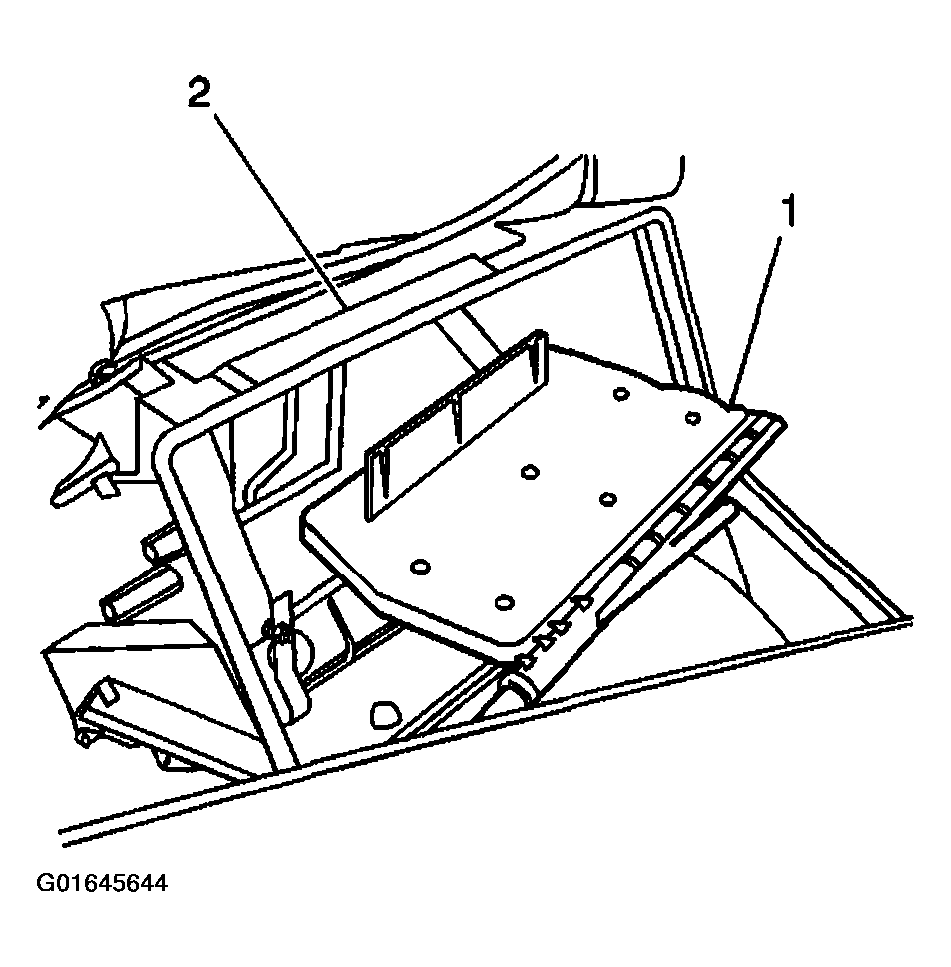

    Fig 1: Installing Air Temperature Door
    G01645644Courtesy of GENERAL MOTORS CORP.
  2. Install the air temperature actuator to the heater case. Refer to AIR TEMPERATURE ACTUATOR REPLACEMENT in HVAC Systems - Manual.
  3. Install the instrument panel assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages, and Console.
