Removal Procedure

  1. Remove the IP extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the floor air outlet duct from the air distributor.
  3. Remove the bucket seats. Refer to SEAT REPLACEMENT - BUCKET in Seats.
  4. Remove the front section of the carpet if equipped. Refer to MAT/CARPET REPLACEMENT FRONT FLOOR in Interior Trim.

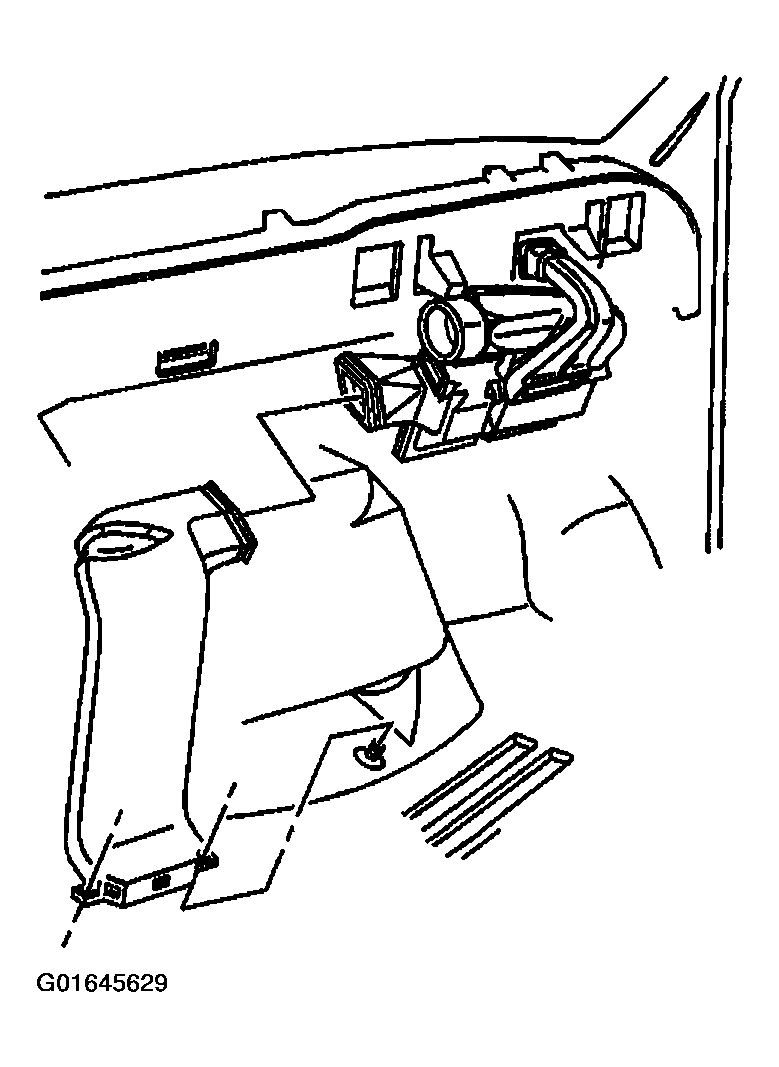

    Fig 1: Removing Rear Floor Air Outlet
    G01645629Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining nuts from the floor outlet duct, if equipped.
  6. Remove the floor air outlet from the ducts to the rear seat, if equipped.

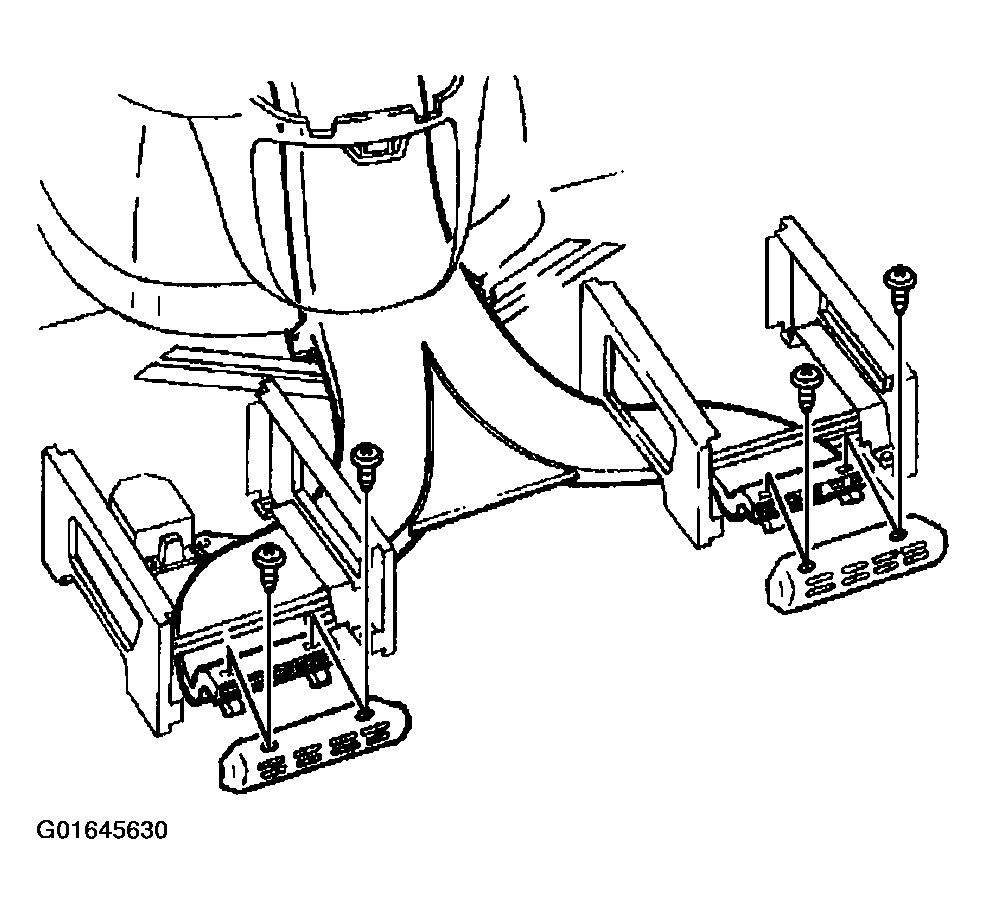

    Fig 2: Removing Center Floor Air Outlet
    G01645630Courtesy of GENERAL MOTORS CORP.
