Installation Procedure

  1. Install the floor air outlet to the ducts to the rear seat, if equipped.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining nuts to the floor outlet duct, if equipped.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

  3. Install the front section of the carpet if equipped. Refer to MAT/CARPET REPLACEMENT FRONT FLOOR in Interior Trim.
  4. Install the bucket seats. Refer to SEAT REPLACEMENT - BUCKET in Seats.

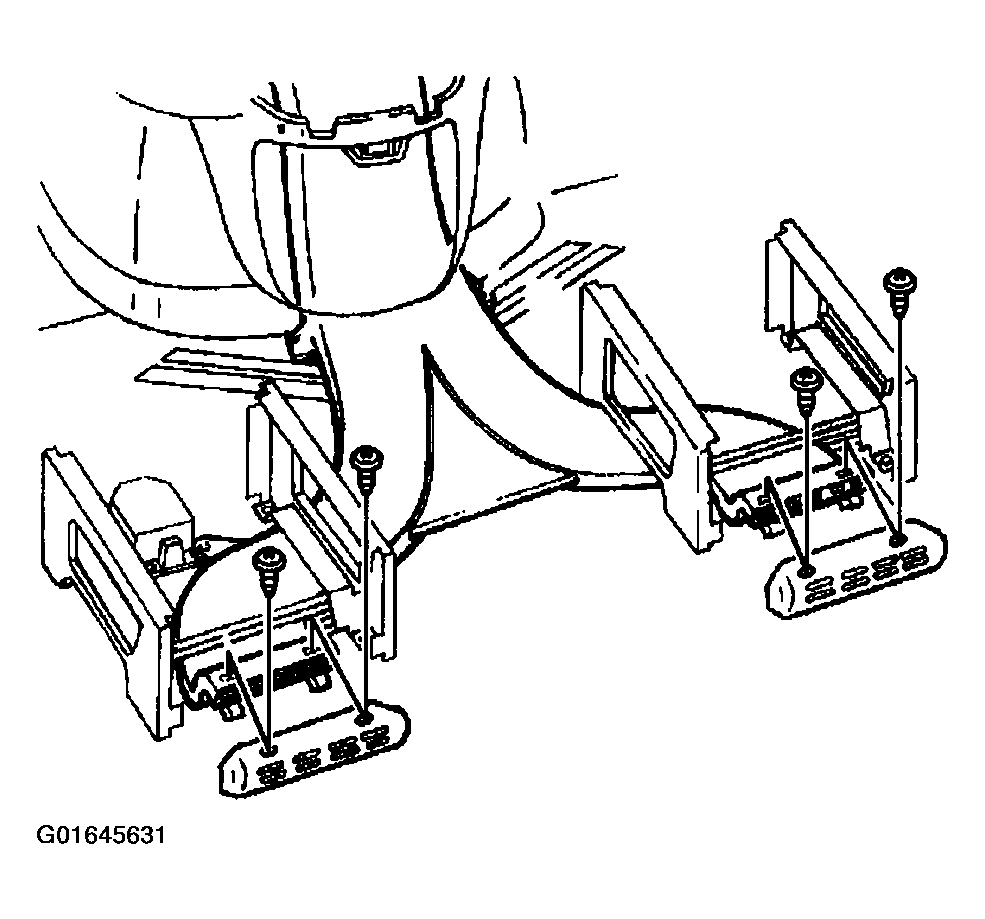

    Fig 1: Installing Center Floor Air Outlet
    G01645631Courtesy of GENERAL MOTORS CORP.
  5. Install the floor air outlet duct to the air distributor.
  6. Install the IP extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages, and Console.

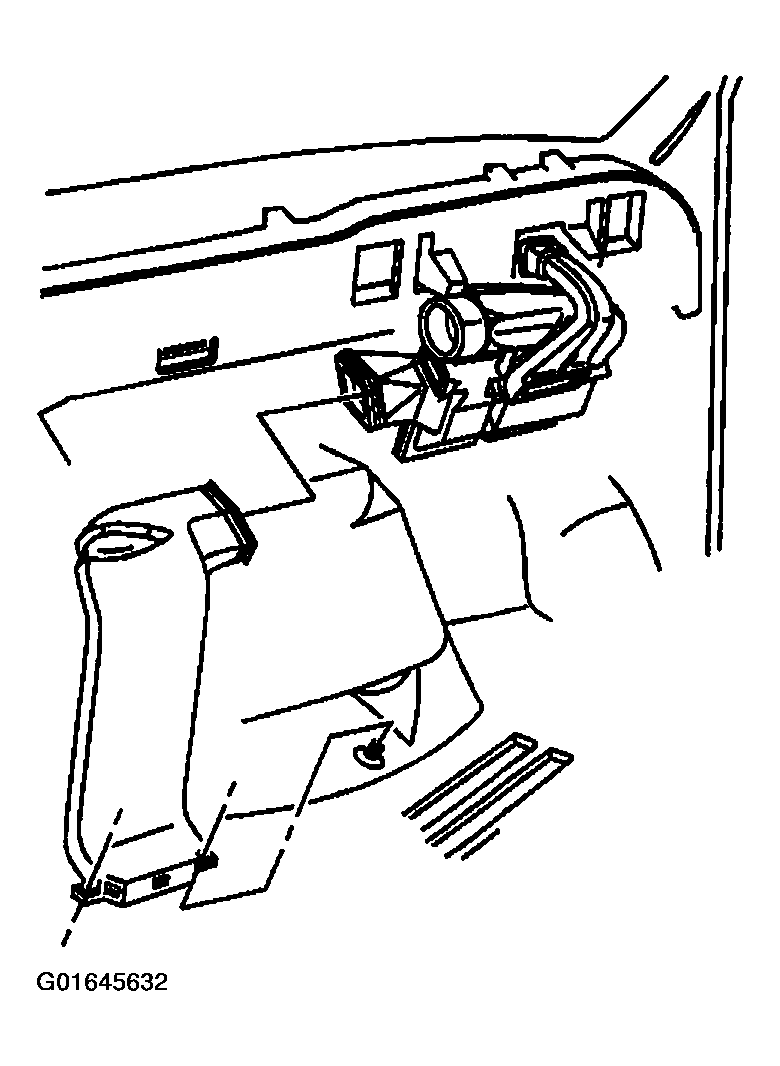

    Fig 2: Installing Rear Floor Air Outlet
    G01645632Courtesy of GENERAL MOTORS CORP.
