Removal Procedure

  1. Remove the instrument panel extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the driver side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  3. Remove the nuts that retain the knee bolster lap deflector to the instrument panel carrier (IPC).
  4. Remove the bolts that retain the knee bolster lap deflector to the IPC.

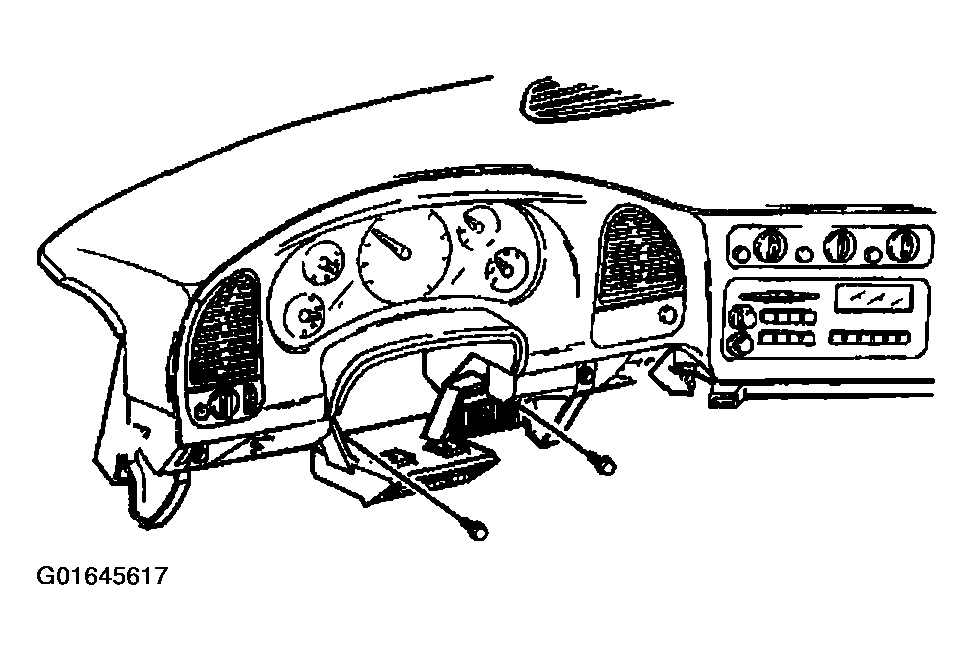

    Fig 1: Removing Knee Bolster Retaining Bolts
    G01645617Courtesy of GENERAL MOTORS CORP.
  5. Remove the knee bolster lap deflector from the vehicle.
