Installation Procedure

  1. Install the knee bolster lap deflector to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the knee bolster lap deflector to the IPC.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

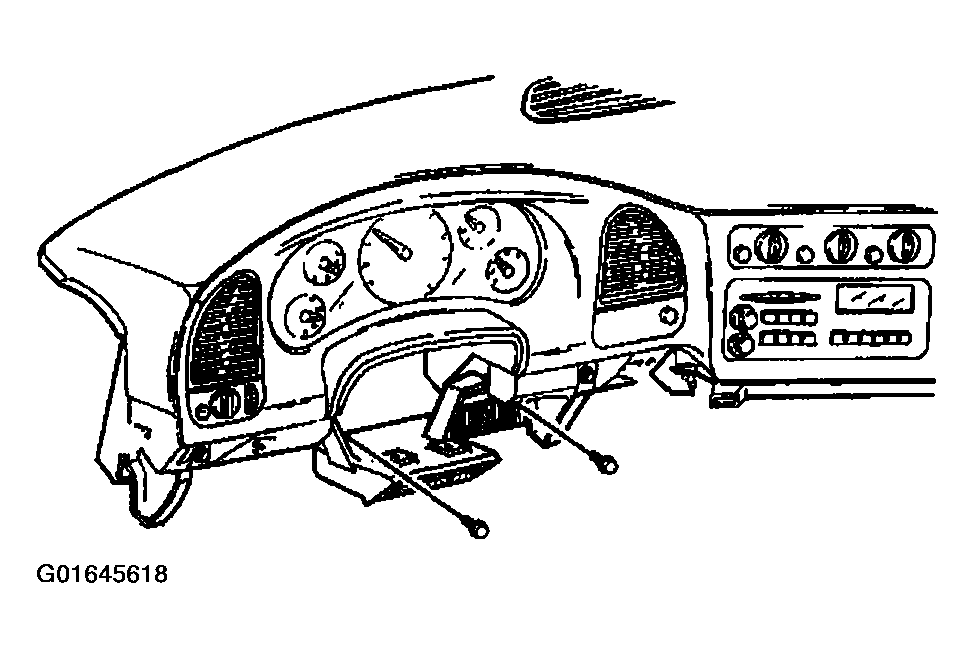

    Fig 1: Installing Knee Bolster Retaining Bolts
    G01645618Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts that retain the knee bolster lap deflector to the IPC.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Install the driver side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  5. Install the instrument panel extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT in Instrument Panel, Gages, and Console.
