Removal Procedure

  1. Remove the right side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
  2. Remove the screw that retains the air outlet vent to the I/P.

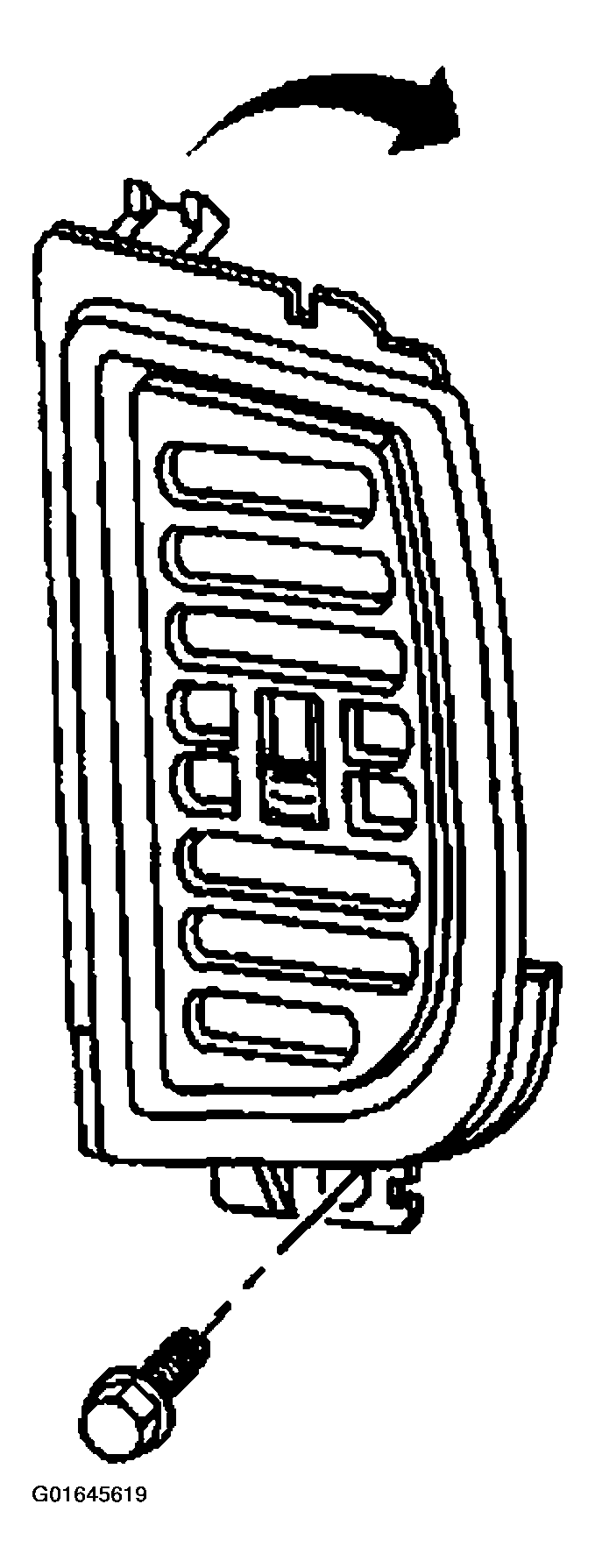

    Fig 1: Removing Air Outlet Vent & Screw
    G01645619Courtesy of GENERAL MOTORS CORP.
  3. Lift upward on the I/P assist handle.
  4. Remove the air outlet vent from the I/P.

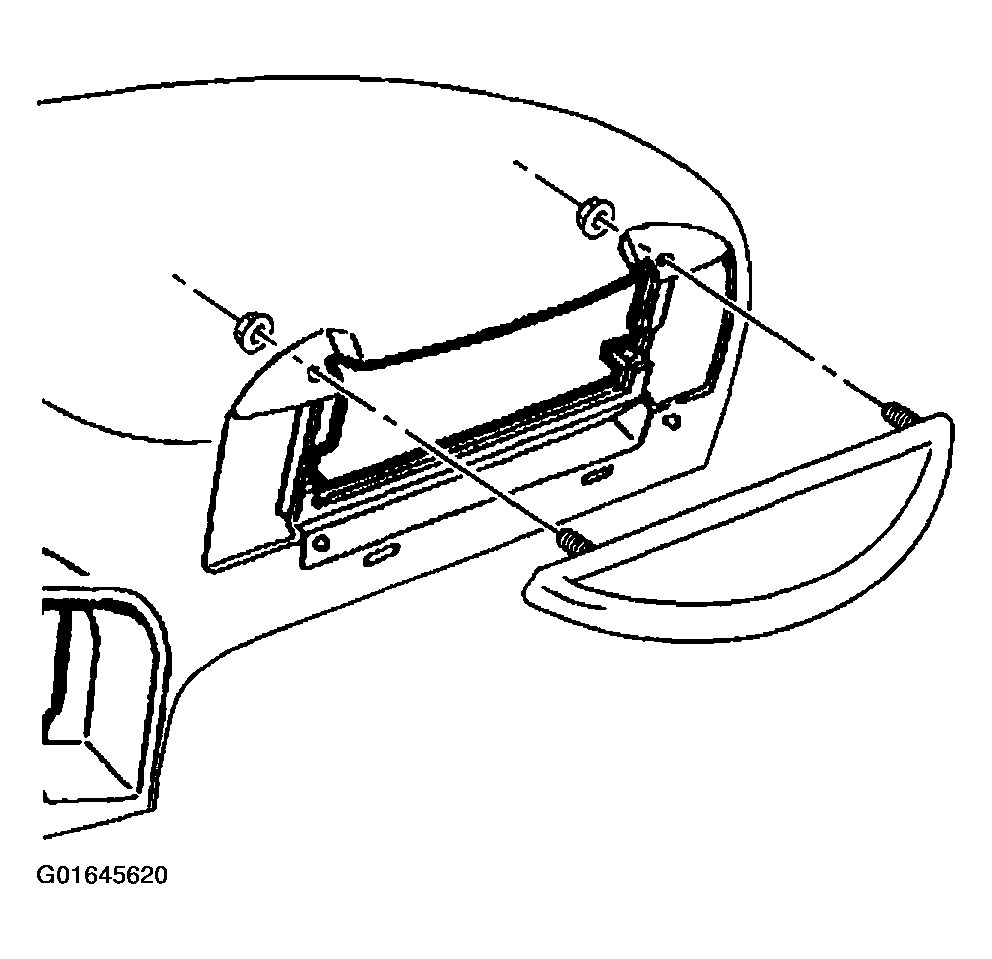

    Fig 2: Identifying I/P Assist Handle
    G01645620Courtesy of GENERAL MOTORS CORP.
