Installation Procedure

  1. Lift upward on the I/P assist handle.

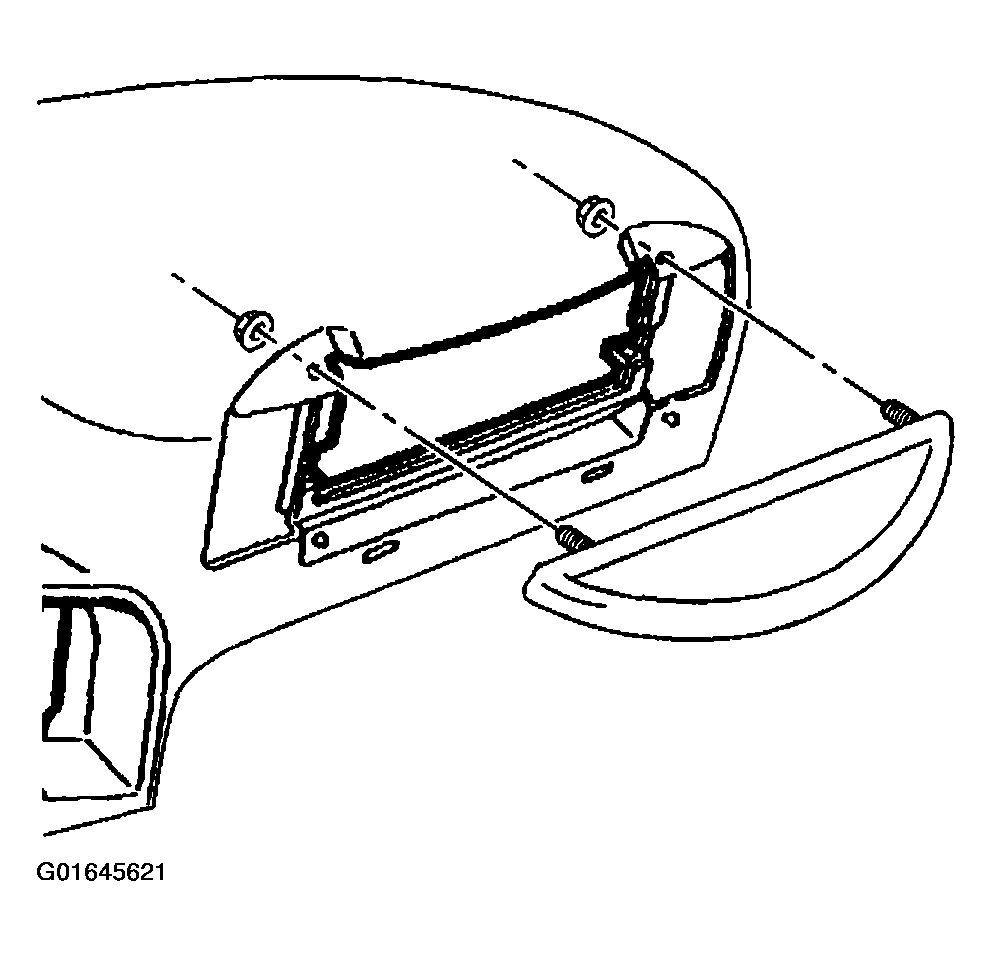

    Fig 1: Identifying I/P Assist Handle
    G01645621Courtesy of GENERAL MOTORS CORP.
  2. Install the air outlet vent to the I/P.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screw that retains the air outlet vent to the I/P.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

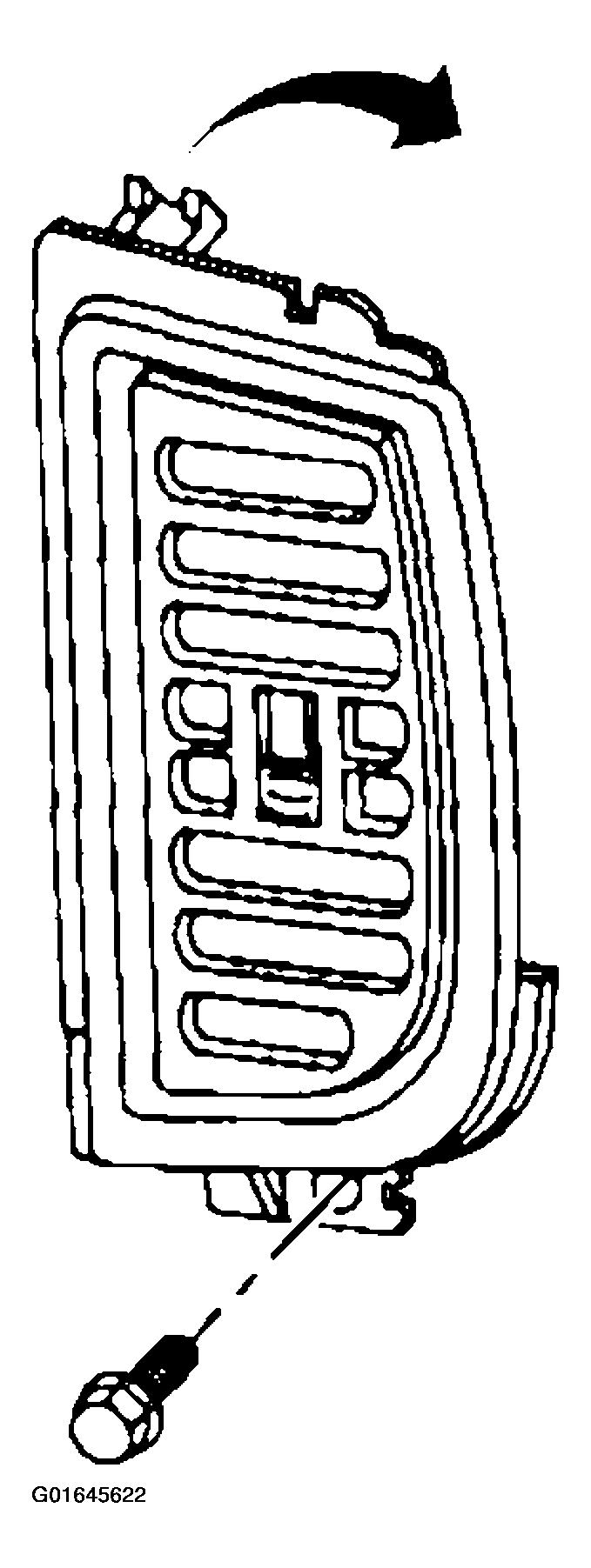

    Fig 2: Installing Air Outlet Vent & Screw
    G01645622Courtesy of GENERAL MOTORS CORP.
  4. Install the right side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
