Removal Procedure

  1. Remove the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
  2. Remove the air outlet duct from the vehicle.

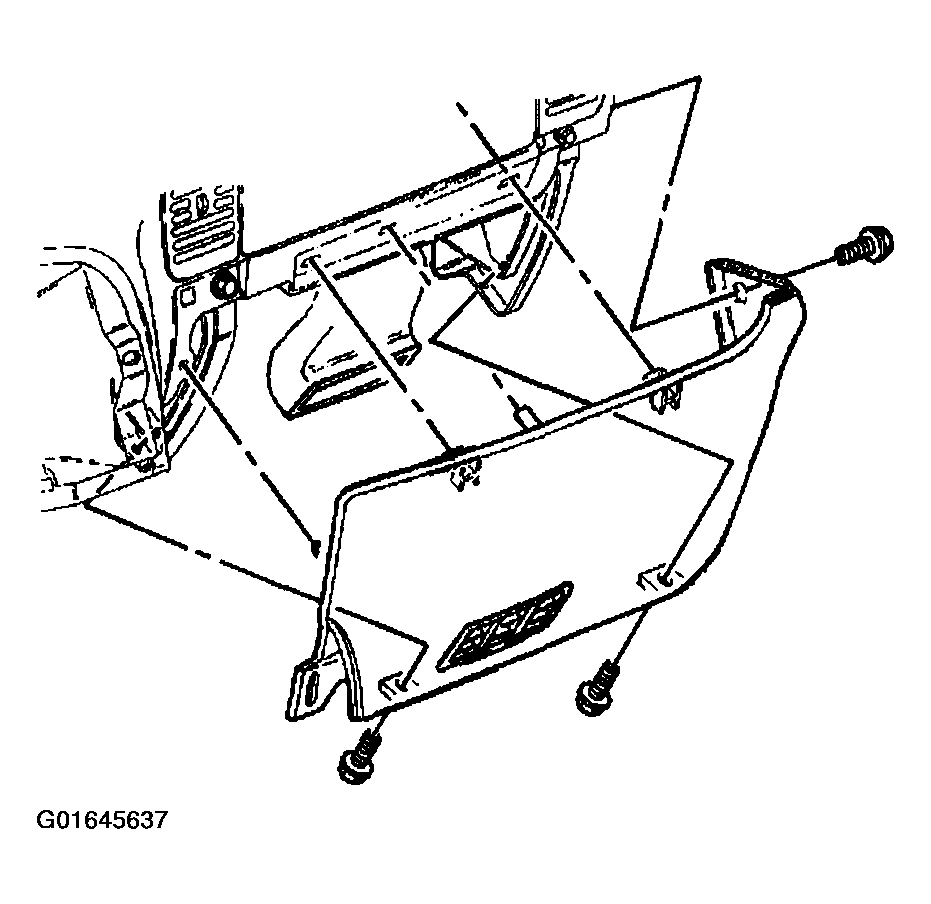

    Fig 1: Removing Right Lap Air Outlet Duct
    G01645637Courtesy of GENERAL MOTORS CORP.
