Installation Procedure

  1. Install the air outlet duct to the vehicle.

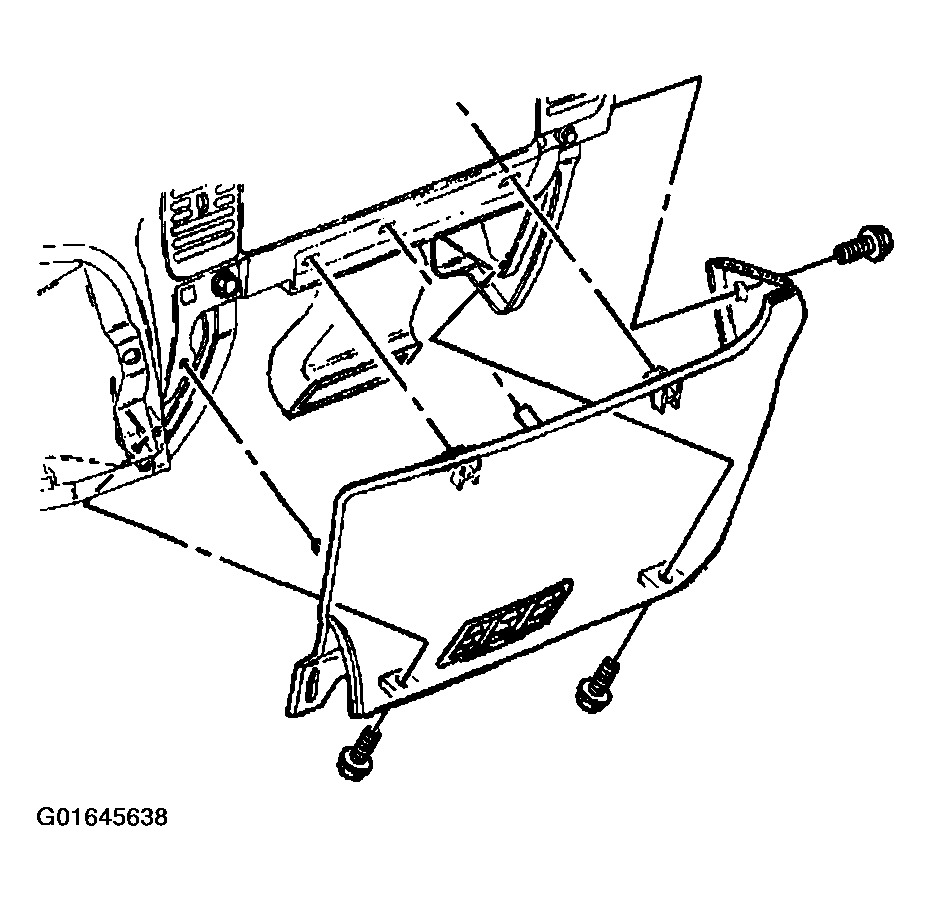

    Fig 1: Installing Right Lap Air Outlet Duct
    G01645638Courtesy of GENERAL MOTORS CORP.
  2. Install the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
