Removal Procedure

Important:  Do not remove the instrument panel.

  1. Roll the instrument panel down. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the screws that retain the duct.
  3. Remove the duct from the instrument panel.

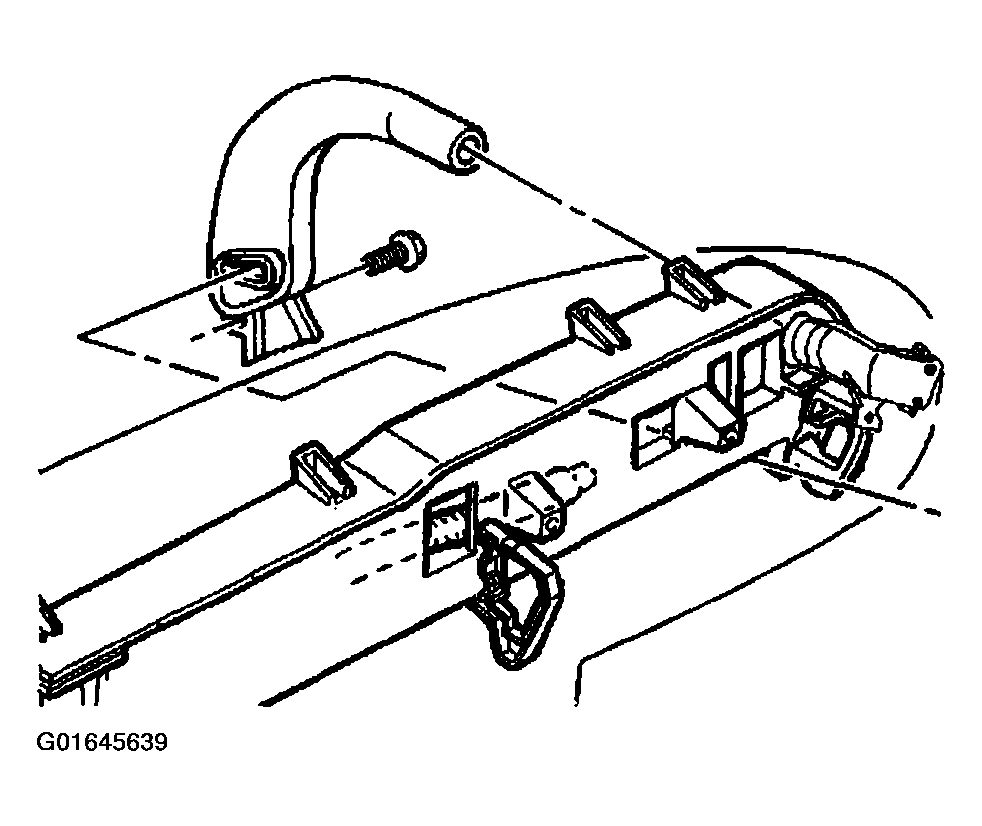

    Fig 1: Removing Right Defogger Air Outlet Duct
    G01645639Courtesy of GENERAL MOTORS CORP.
