Installation Procedure

  1. Install the duct to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

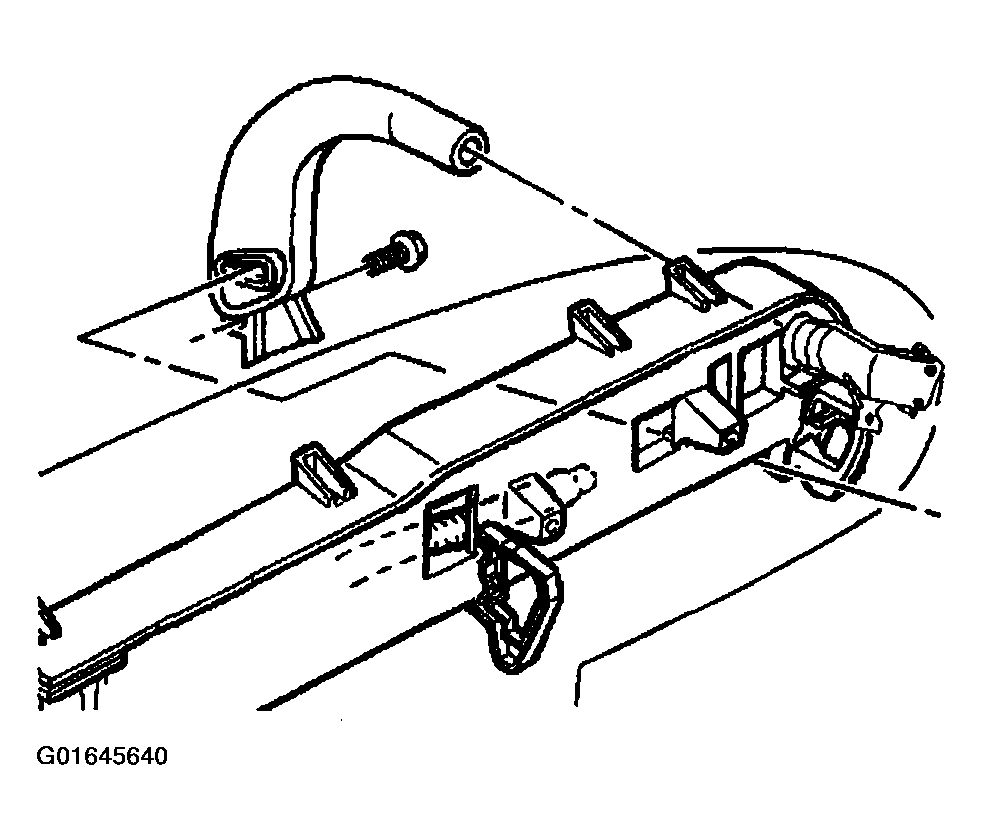

    Fig 1: Installing Right Defogger Air Outlet Duct
    G01645640Courtesy of GENERAL MOTORS CORP.
  2. Install the screws in order to retain the duct.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Roll the instrument panel up. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.
