Removal Procedure

  1. Remove the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  2. Remove the screws that retain the outlet duct.
  3. Remove the duct from the air distribution duct.

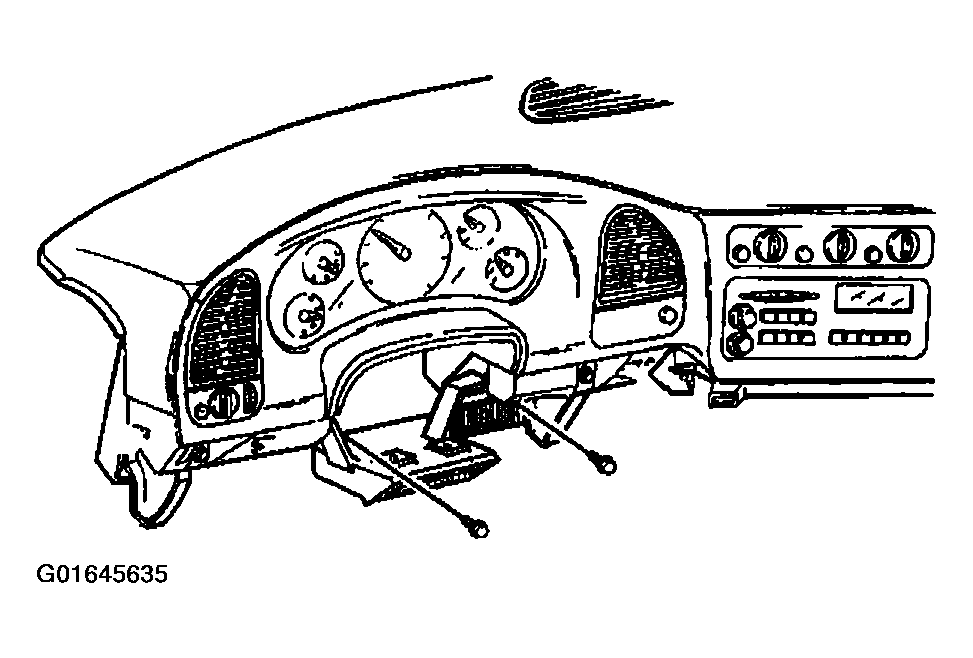

    Fig 1: Removing Air Outlet Duct Screws
    G01645635Courtesy of GENERAL MOTORS CORP.
