Installation Procedure

  1. Install the duct to the air distribution duct.
  2. Install the outlet duct.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

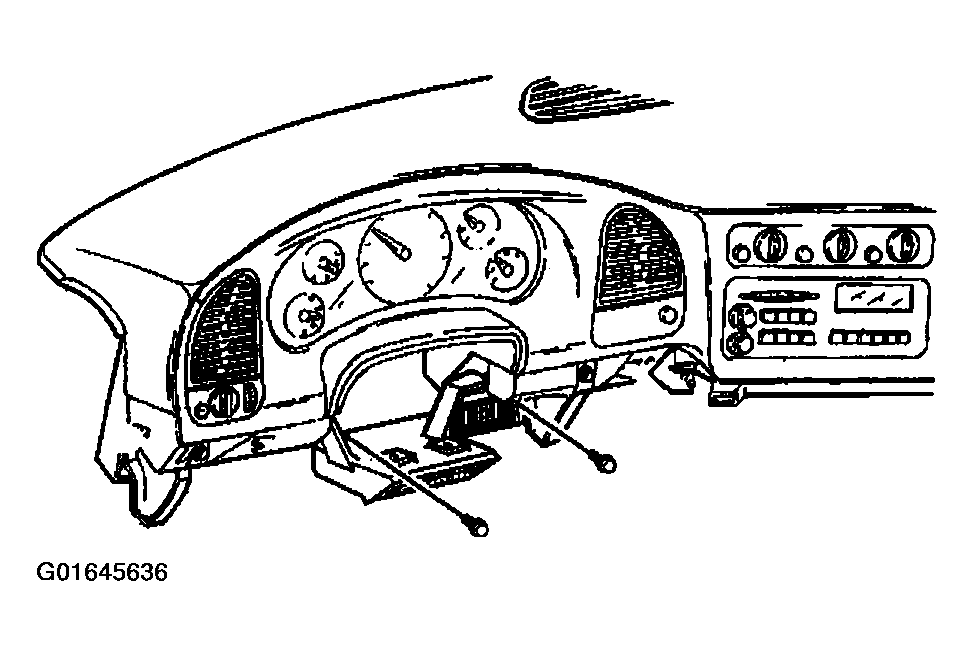

    Fig 1: Installing Air Outlet Duct Screws
    G01645636Courtesy of GENERAL MOTORS CORP.
  3. Install the screws that retain the outlet duct.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
