Removal Procedure

  1. Remove the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the windshield defroster duct. Refer to AIR OUTLET REPLACEMENT - DEFROSTER .
  3. Remove the screws that retain the air outlet duct to the instrument panel carrier.
  4. Remove the side window defroster ducts.
  5. Remove the air outlet duct from instrument panel.

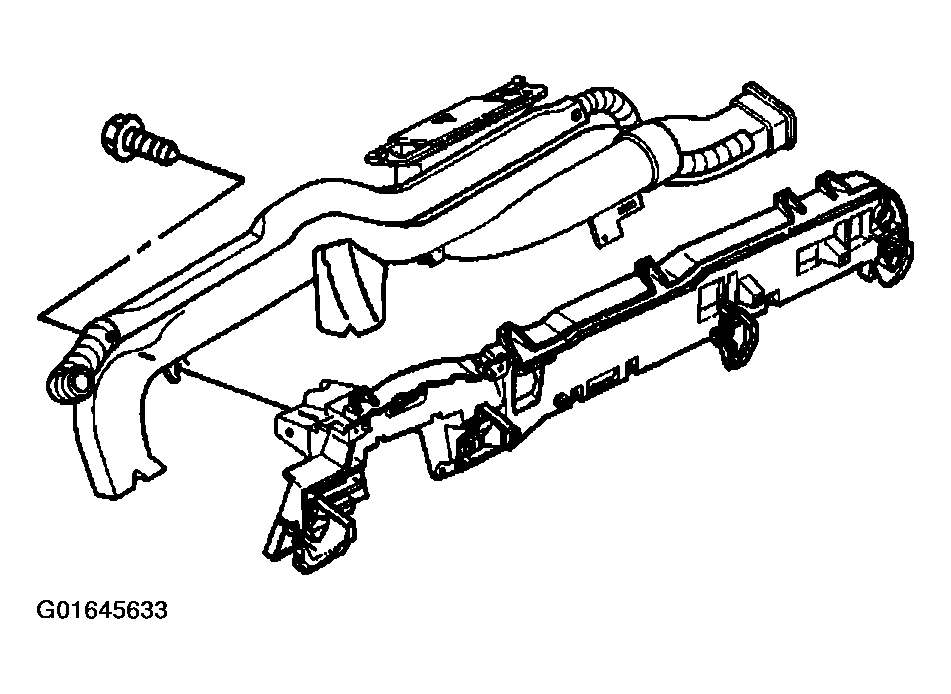

    Fig 1: Removing Air Outlet Duct From Instrument Panel
    G01645633Courtesy of GENERAL MOTORS CORP.
