Installation Procedure

  1. Install the air outlet duct to the instrument panel.

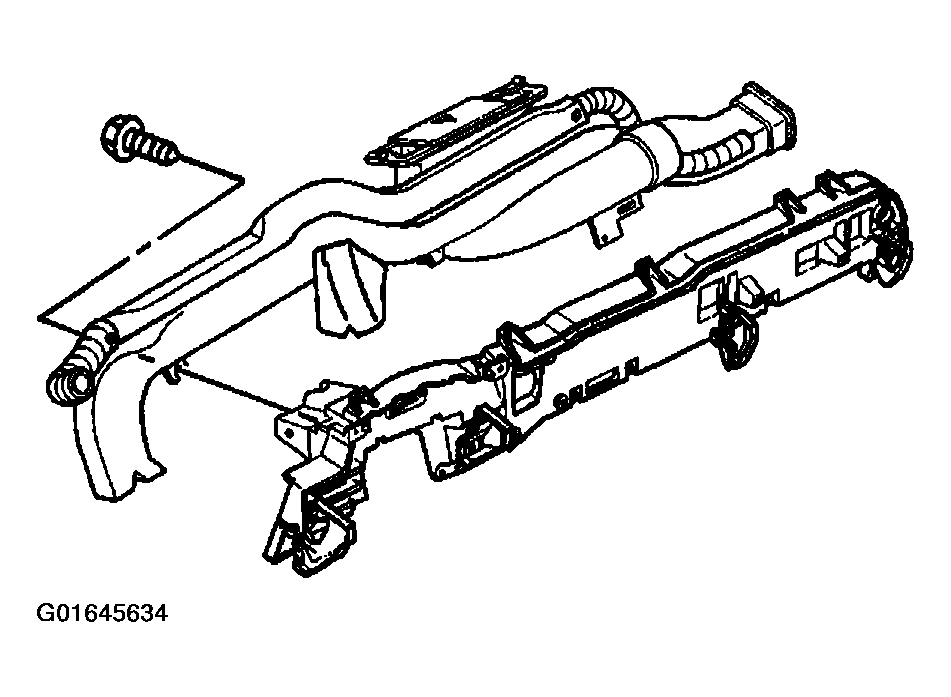

    Fig 1: Installing Air Outlet Duct From Instrument Panel
    G01645634Courtesy of GENERAL MOTORS CORP.
  2. Install the side window defroster ducts.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the floor air outlet duct to the instrument panel carrier.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the windshield defroster duct. Refer to AIR OUTLET REPLACEMENT - DEFROSTER .
  5. Install the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages, and Console.
