Removal Procedure

Important:  Do not remove the instrument panel.

  1. Roll the instrument panel down. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the duct from the left side floor air outlet.
  3. Remove the duct from the left body side window defogger outlet.
  4. Remove the duct from the vehicle.

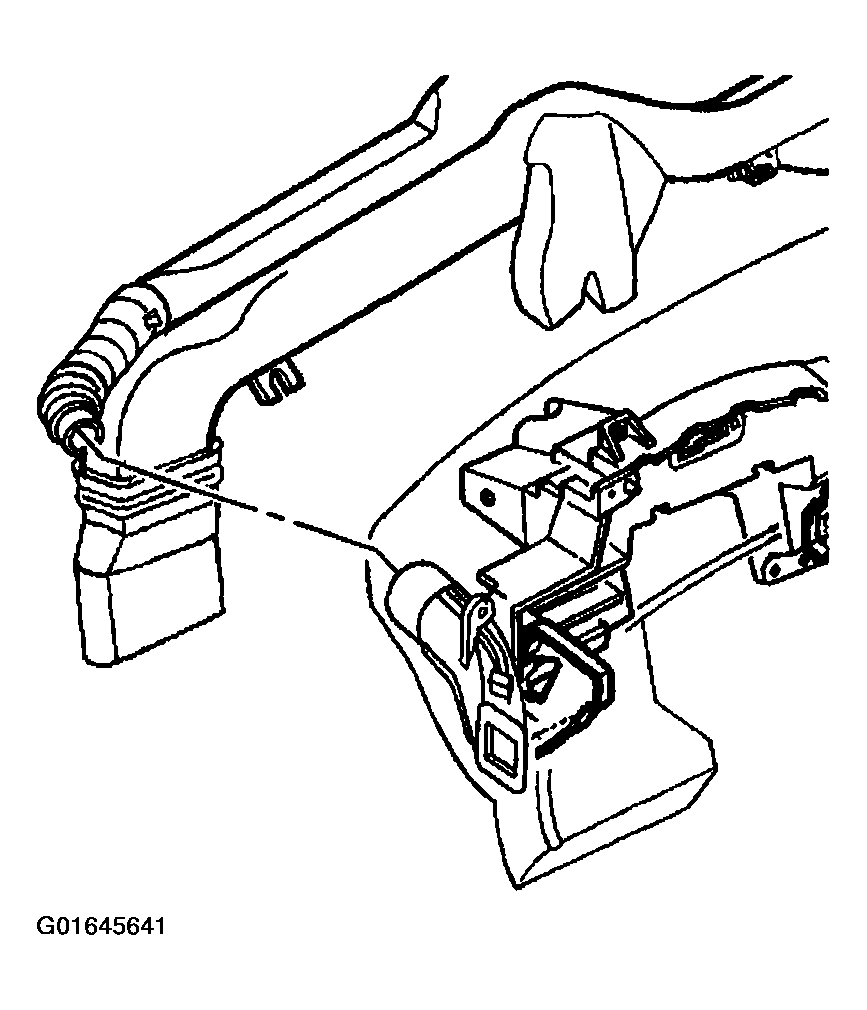

    Fig 1: Removing Left Defogger Air Outlet Duct
    G01645641Courtesy of GENERAL MOTORS CORP.
