Installation Procedure

  1. Install the duct to the vehicle.

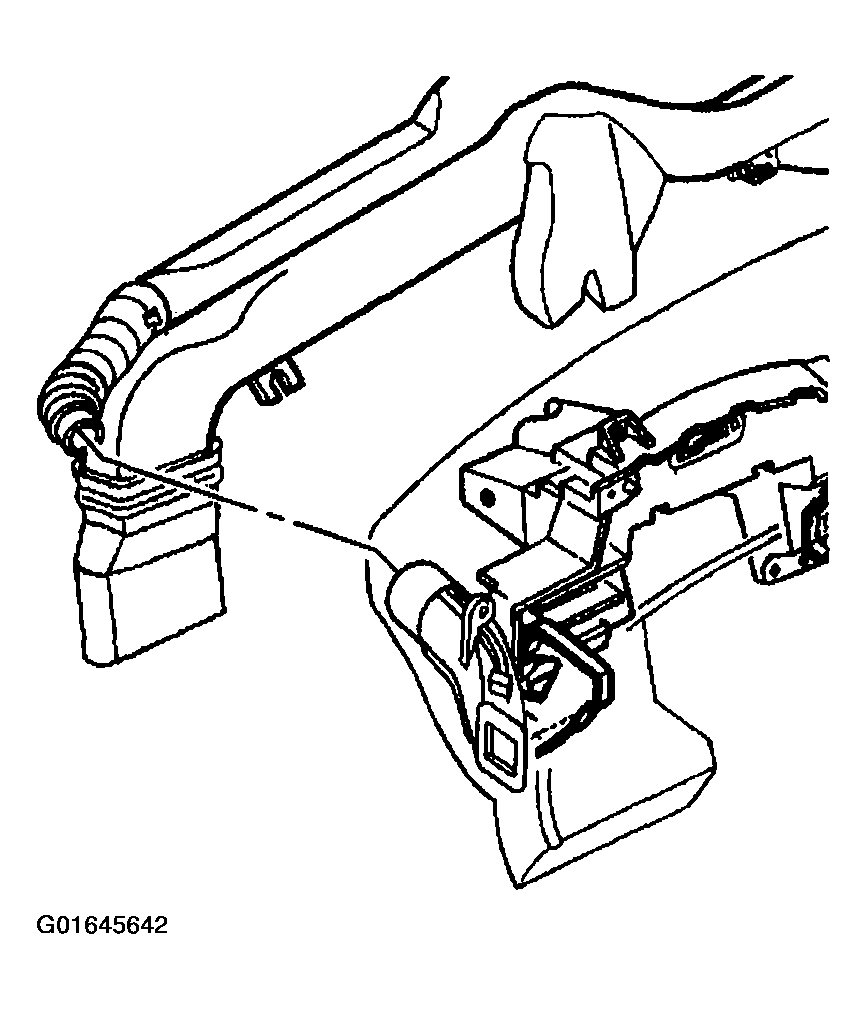

    Fig 1: Installing Left Defogger Air Outlet Duct
    G01645642Courtesy of GENERAL MOTORS CORP.
  2. Install the duct to the left body side window defogger outlet.
  3. Install the duct to the left side floor air outlet.
  4. Roll the instrument panel up. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.
