Removal Procedure

  1. Remove the left fourth pillar garnish molding. Refer to TRIM REPLACEMENT -- FOURTH PILLAR -- LEFT in Interior Trim.
  2. Remove the set screw in the side of the 2 piece duct.
  3. Slide the bottom half of the duct up into the top half.
  4. Swing the bottom edge of the duct toward the interior of the vehicle.
  5. Remove the top edge of the duct clear of the headliner duct.
  6. Remove the air outlet duct from the vehicle.

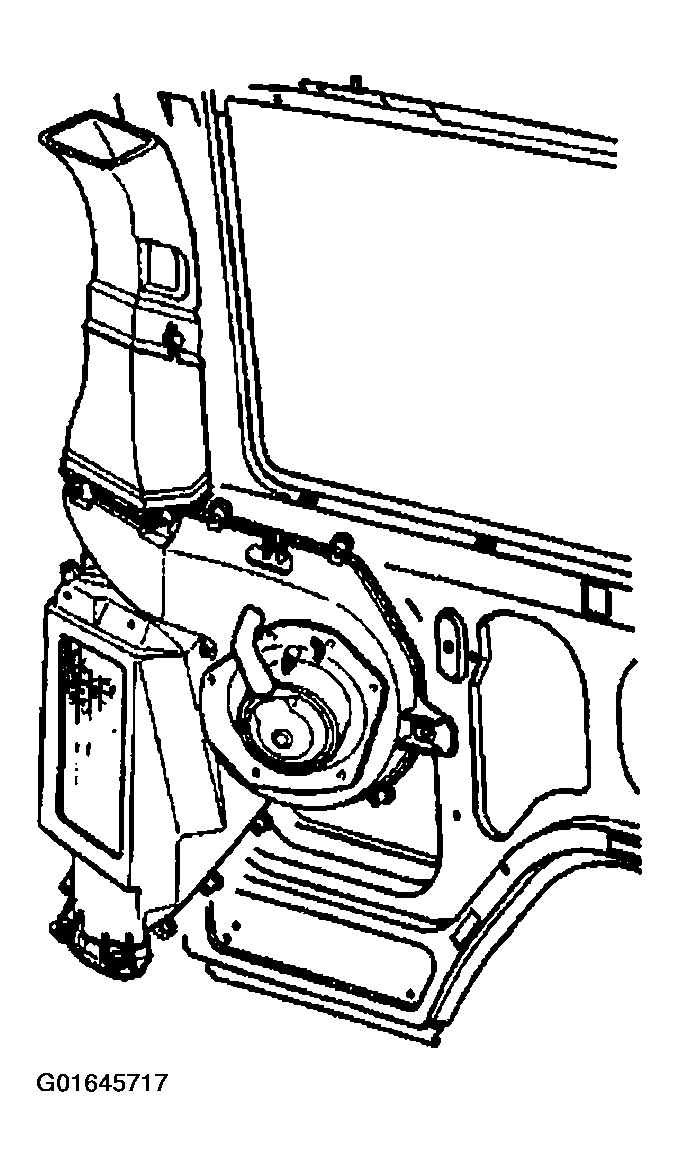

    Fig 1: Removing Air Outlet Duct - Auxiliary
    G01645717Courtesy of GENERAL MOTORS CORP.
