Removal Procedure

  1. Remove the IP assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Remove the left floor air outlet. Refer to AIR OUTLET DUCT REPLACEMENT - LEFT FLOOR .

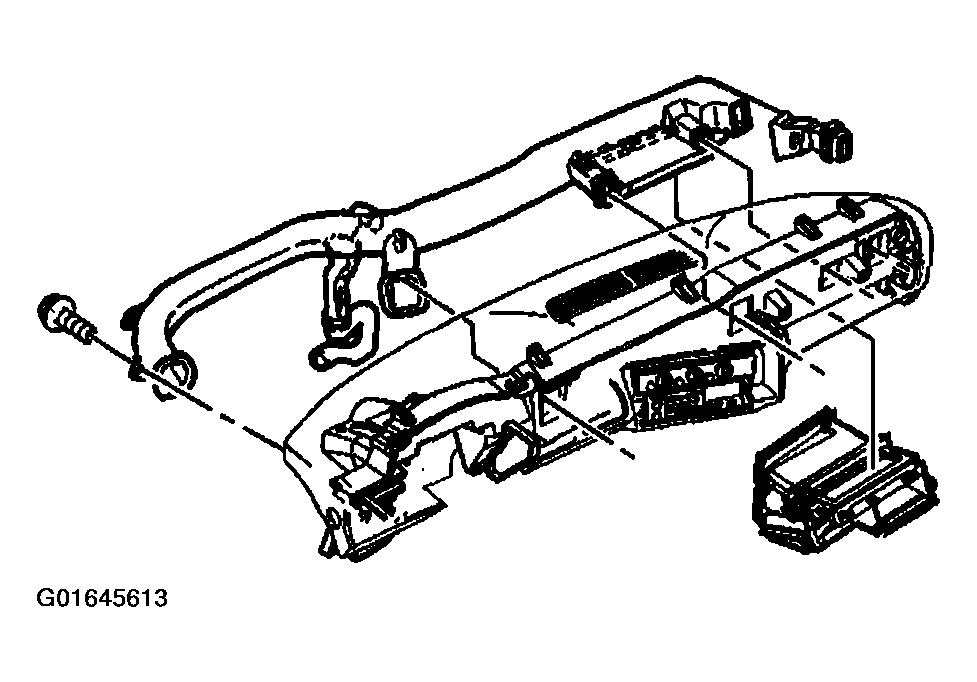

    Fig 1: Removing Left Floor Air Outlet
    G01645613Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining screw at the IP assembly on the left side of the duct.
  4. Remove the retaining clips from the air distributor assembly.
  5. Remove the duct from the IP vent extensions.
  6. Remove the air distributor duct from the IP.

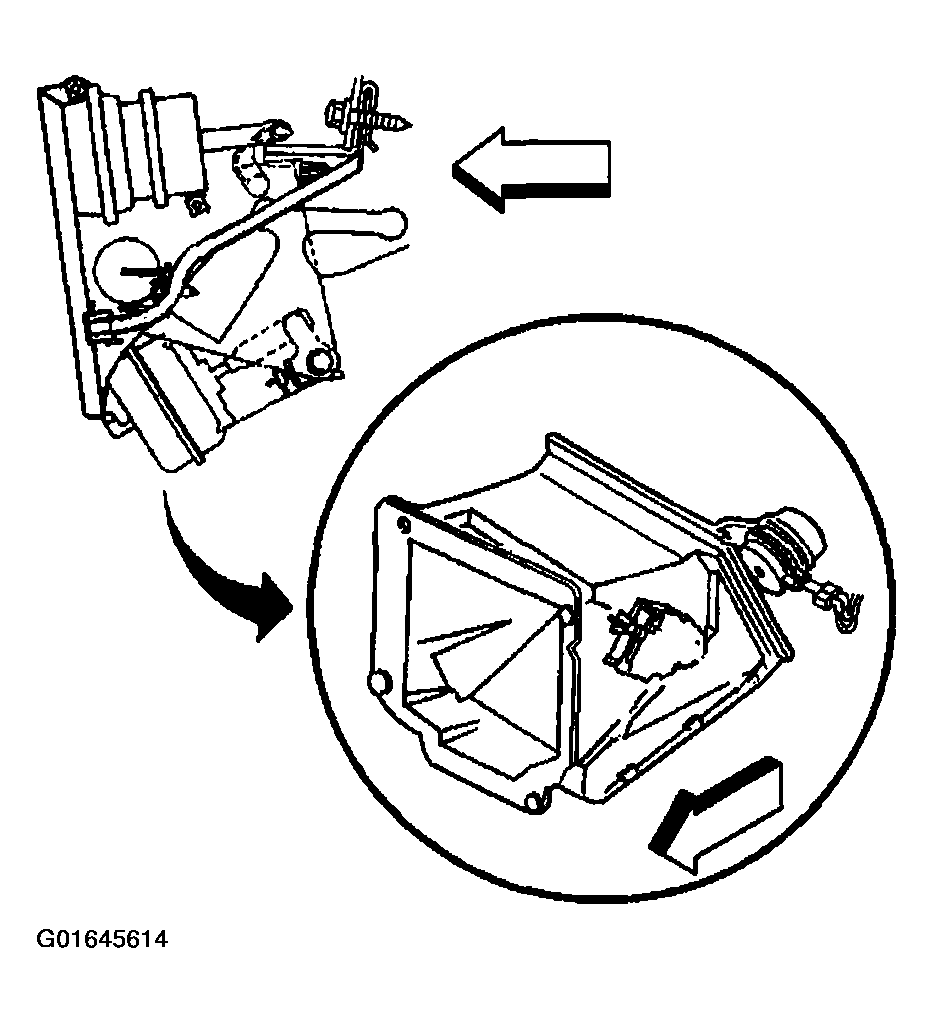

    Fig 2: Removing Air Distributor Duct
    G01645614Courtesy of GENERAL MOTORS CORP.
