Installation Procedure

  1. Install the air distributor duct to the IP.
  2. Install the air distributor duct to the IP vent extensions.
  3. Install the retaining clips to the air distributor assembly.

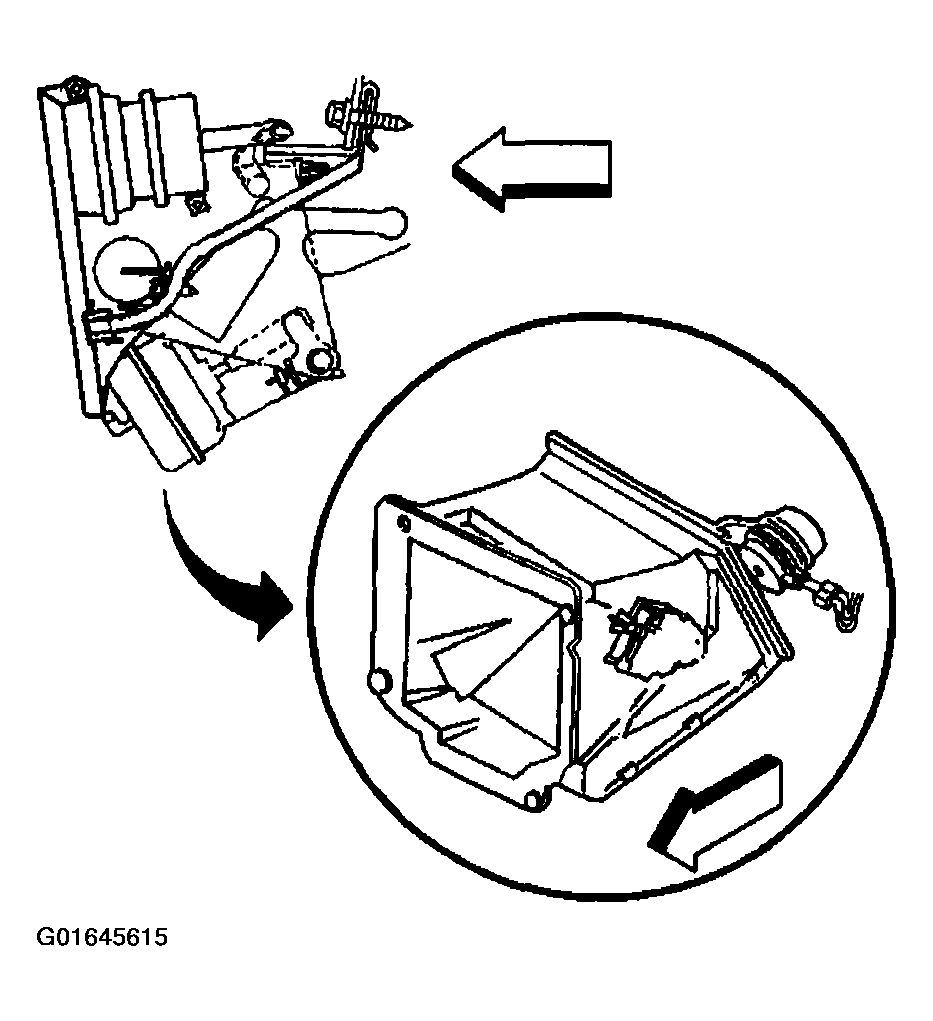

    Fig 1: Installing Air Distributor Duct
    G01645615Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the retaining screws to the IP carrier on the left side of the duct.

    Tighten

    Tighten the screws to the IP carrier on the left side of the duct to 2 N.m (18 lb in).

  5. Install the left floor air outlet. Refer to AIR OUTLET DUCT REPLACEMENT - LEFT FLOOR .

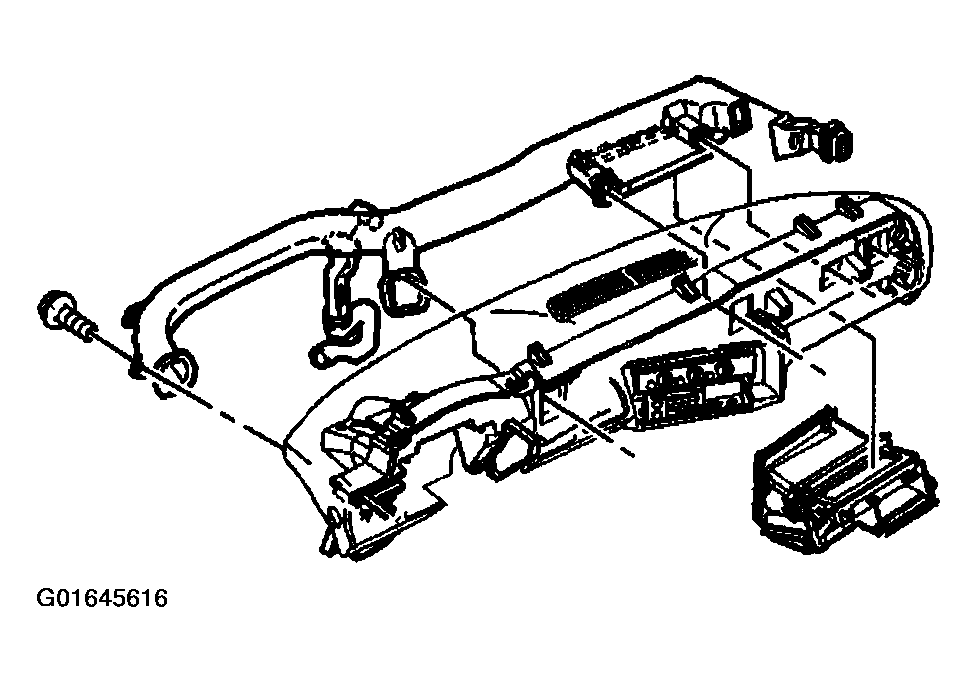

    Fig 2: Installing Left Floor Air Outlet
    G01645616Courtesy of GENERAL MOTORS CORP.
  6. Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT in Instrument Panel, Gages, and Console.
