Removal Procedure

  1. Recover the refrigerant from the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the auxiliary evaporator outlet side tube (3) from the rear tube.
  4. Remove the O-ring seal.

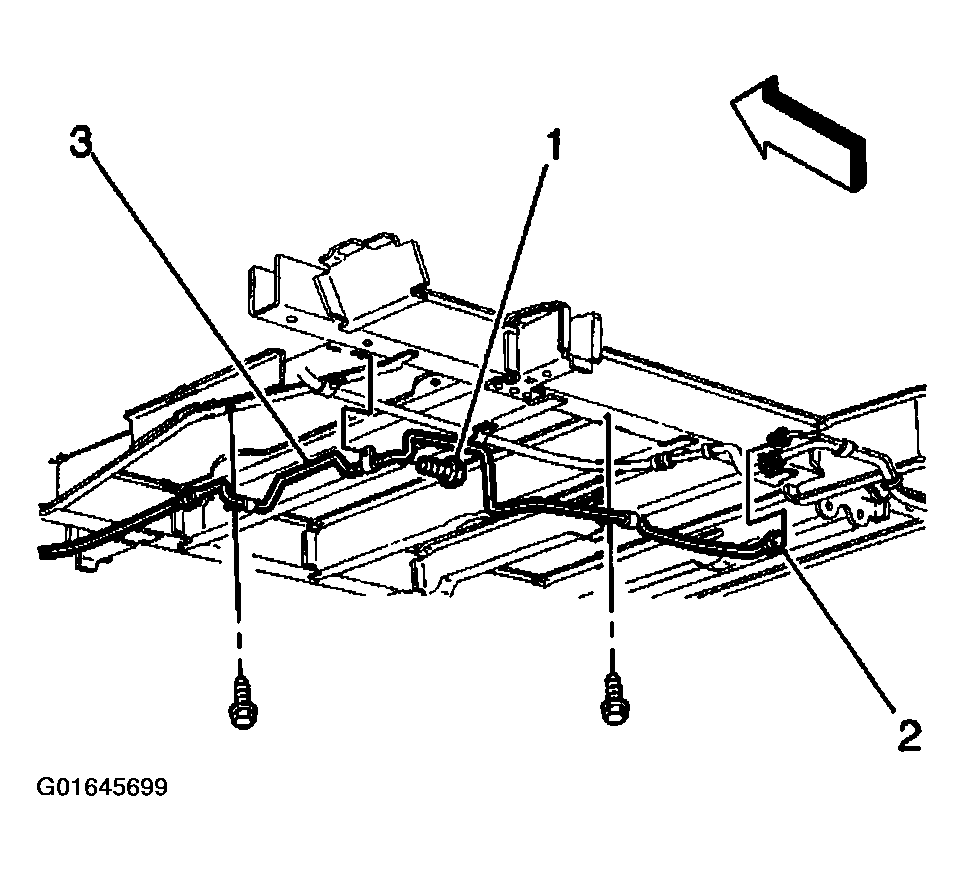

    Fig 1: Removing Auxiliary Evaporator Outlet Side Tube
    G01645699Courtesy of GENERAL MOTORS CORP.
  5. Remove the auxiliary evaporator outlet side tube from the compressor hose assembly.
  6. Remove the O-ring seal.

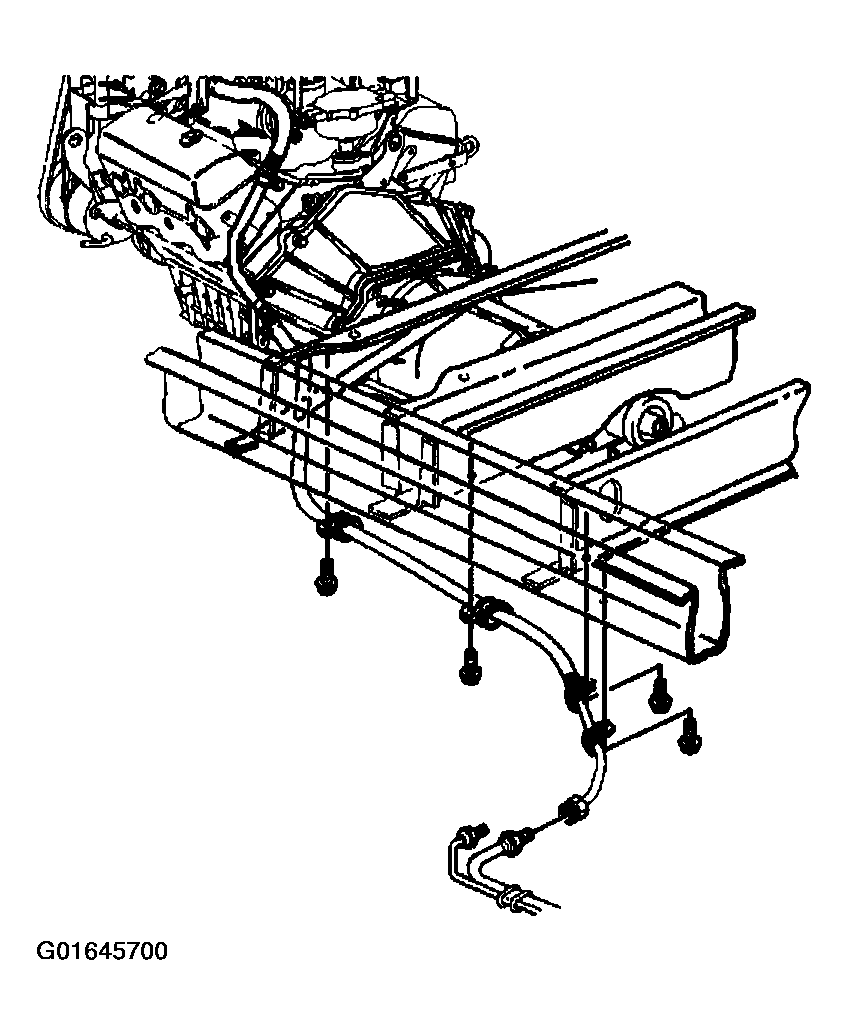

    Fig 2: Removing Auxiliary Evaporator Outlet Side Tube From Hose Assembly
    G01645700Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolts (1) that retain the clips on the outlet side tube (3) to the body.
  8. Remove the auxiliary evaporator side tube (3) from the vehicle.
    Fig 3: Removing Auxiliary Evaporator Outlet Side Tube Bolts
    G01645701Courtesy of GENERAL MOTORS CORP.
