Odor Diagnosis

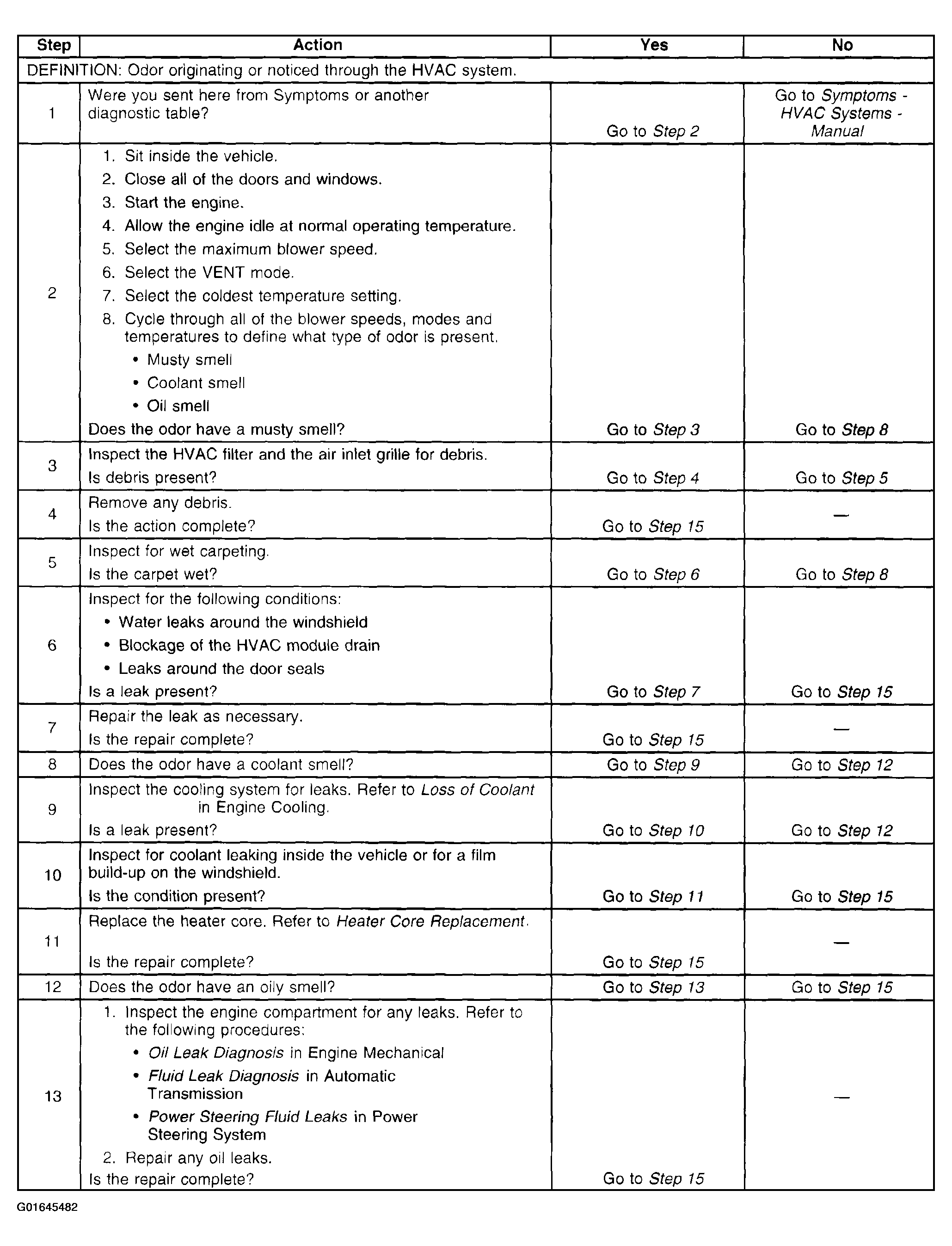

Fig 1: Odor Diagnosis Chart (Steps 1-13)
G01645482Courtesy of GENERAL MOTORS CORP.

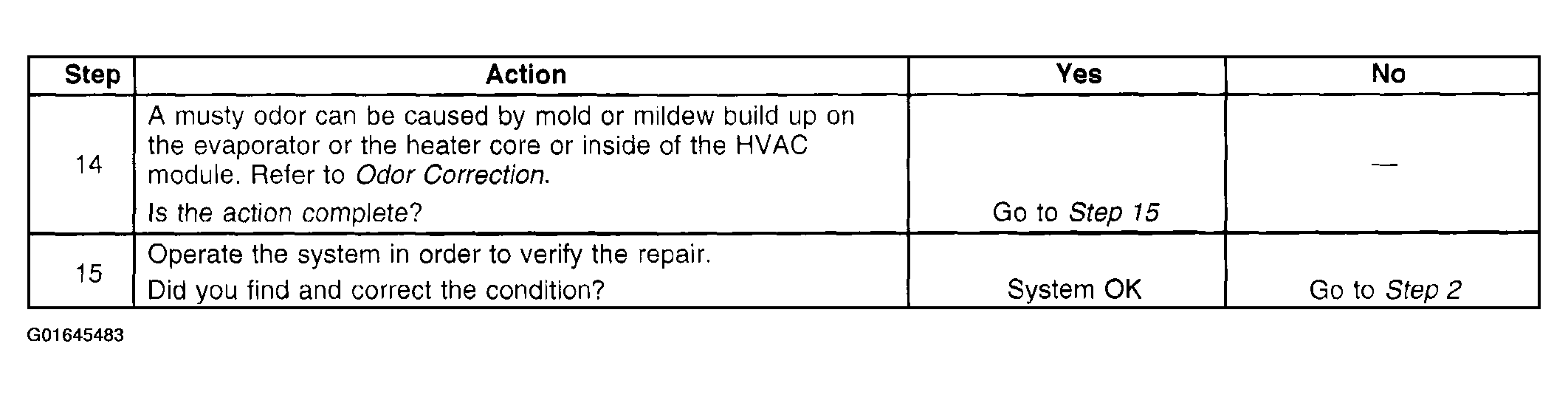

Fig 2: Odor Diagnosis Chart (Steps 14-15)
G01645483Courtesy of GENERAL MOTORS CORP.
