Noise Diagnosis - Air Conditioning (A/C) System

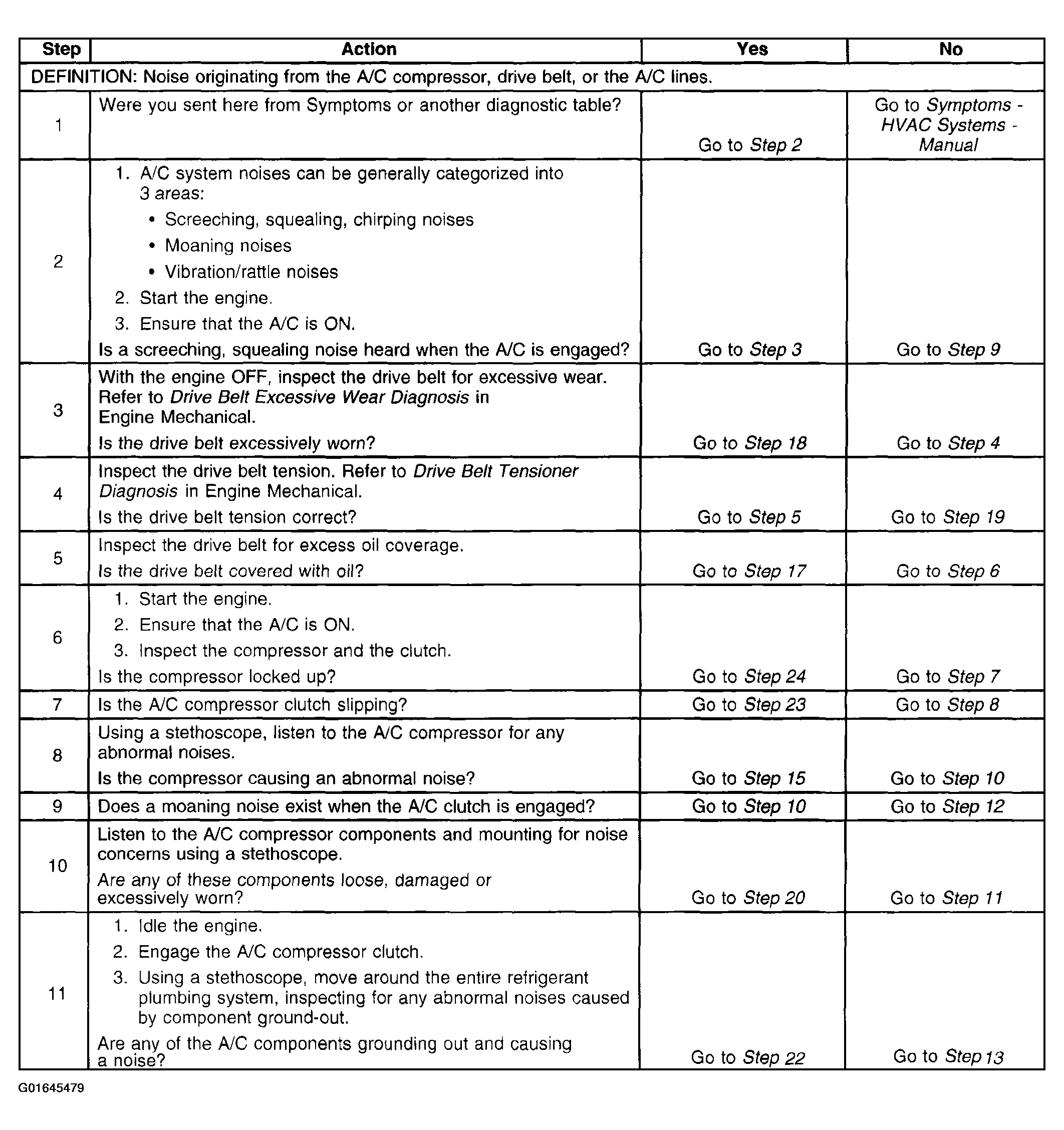

Fig 1: Noise Diagnosis Chart - Air Conditioning System (Steps 1-11)
G01645479Courtesy of GENERAL MOTORS CORP.

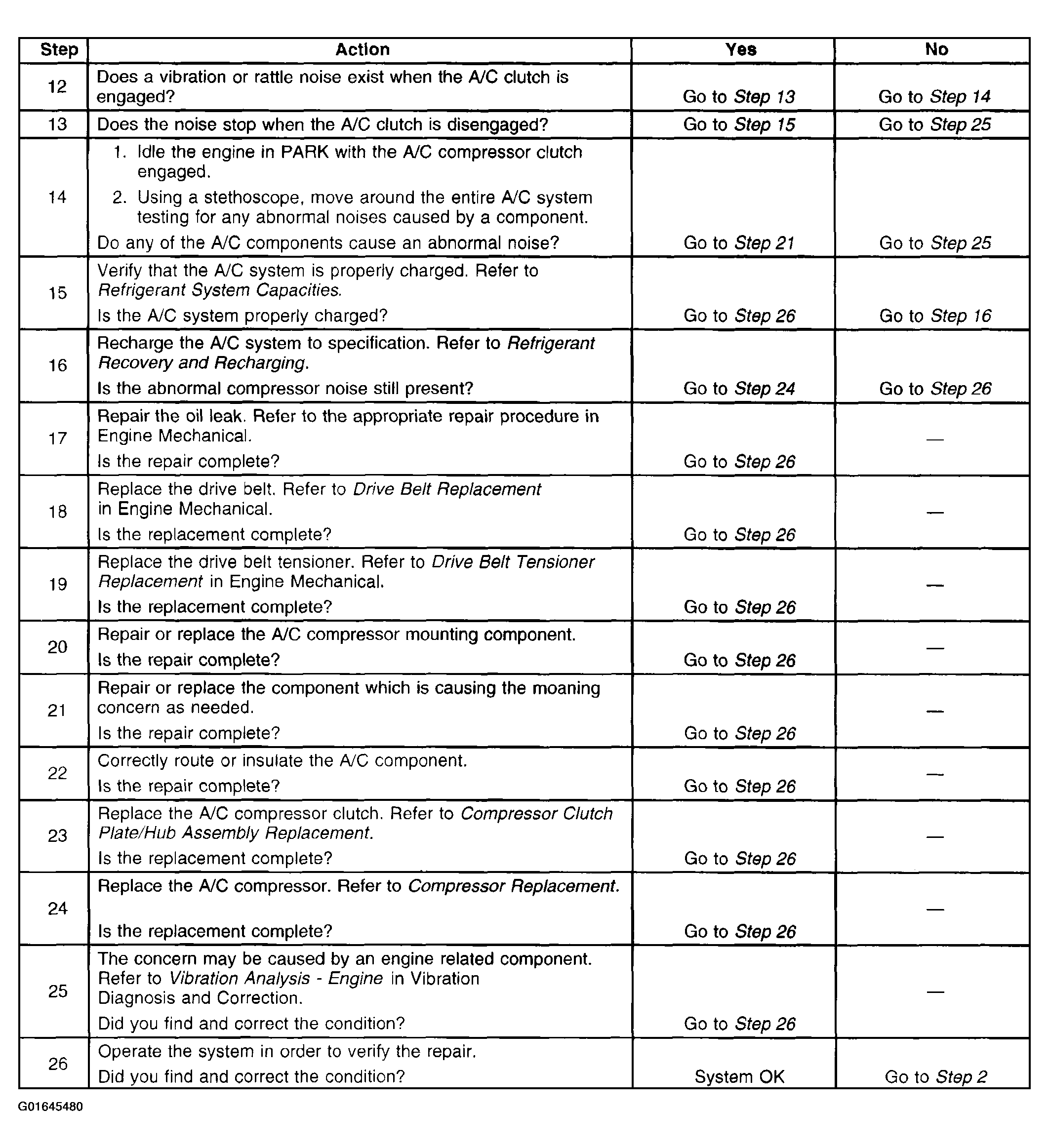

Fig 2: Noise Diagnosis Chart - Air Conditioning System (Steps 12-26)
G01645480Courtesy of GENERAL MOTORS CORP.
