Heating Performance Diagnostic (Front System)

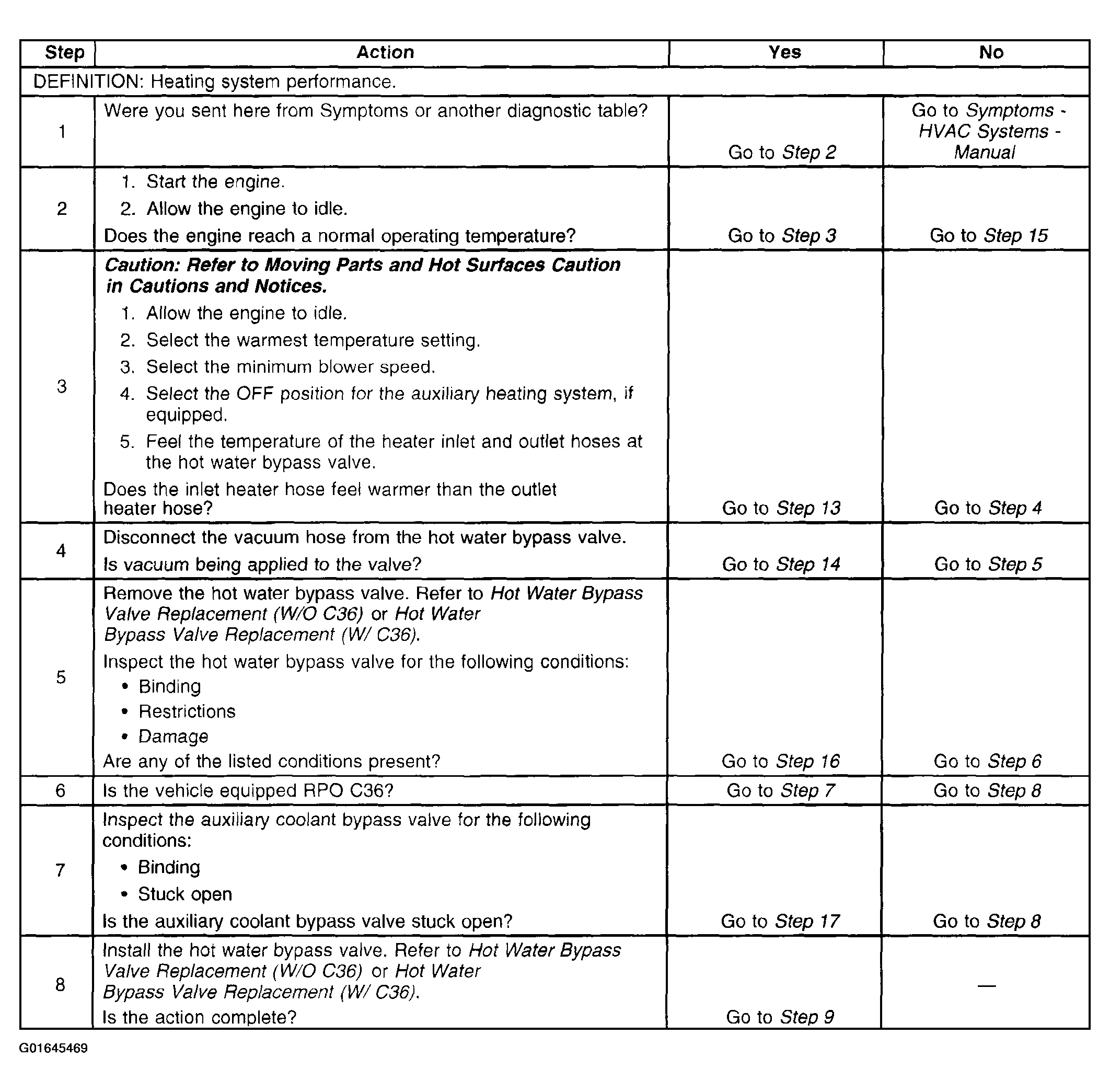

Fig 1: Heating Performance Diagnostic Chart (Front System) (Steps 1-8)
G01645469Courtesy of GENERAL MOTORS CORP.

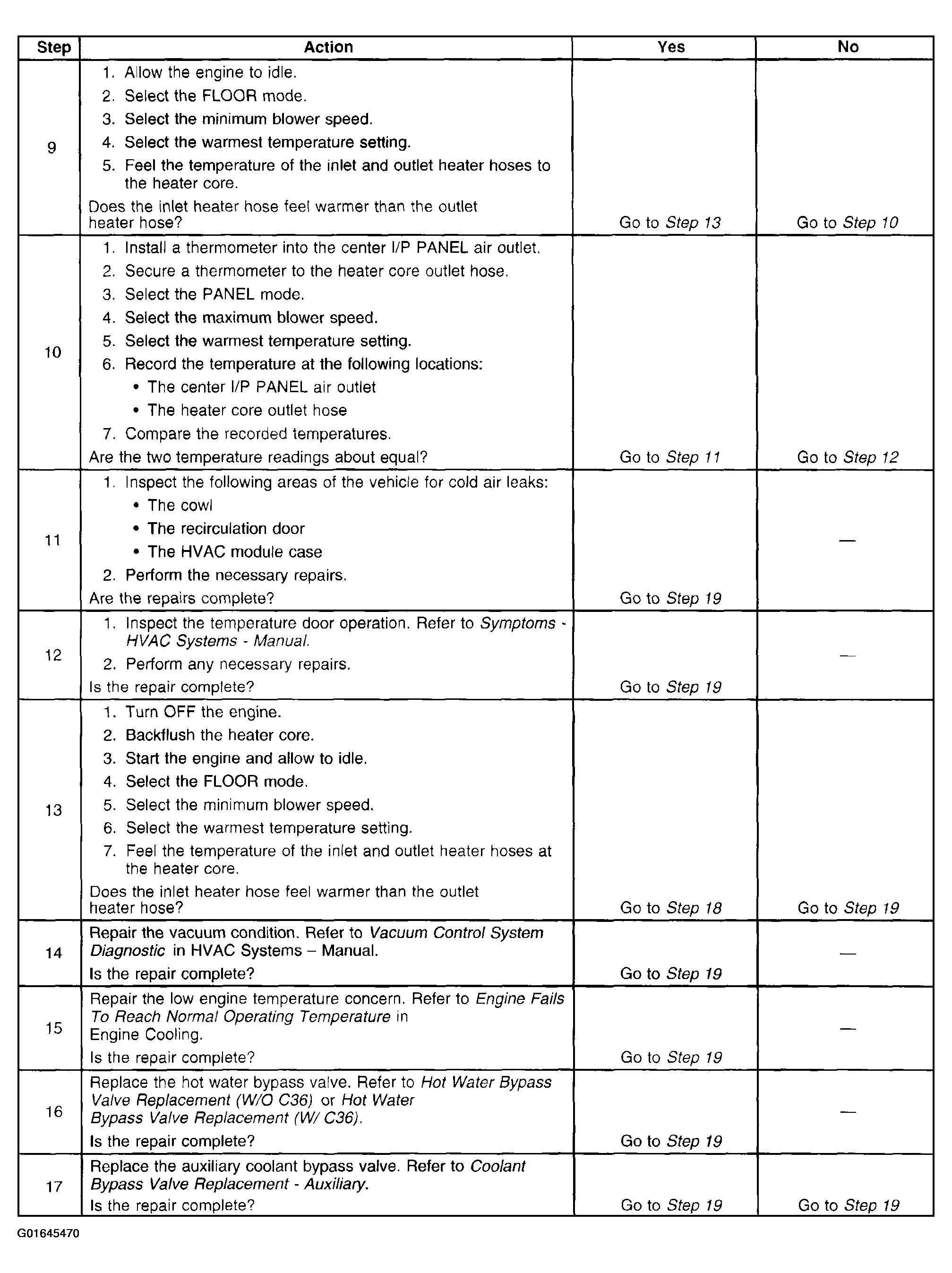

Fig 2: Heating Performance Diagnostic Chart (Front System) (Steps 9-17)
G01645470Courtesy of GENERAL MOTORS CORP.

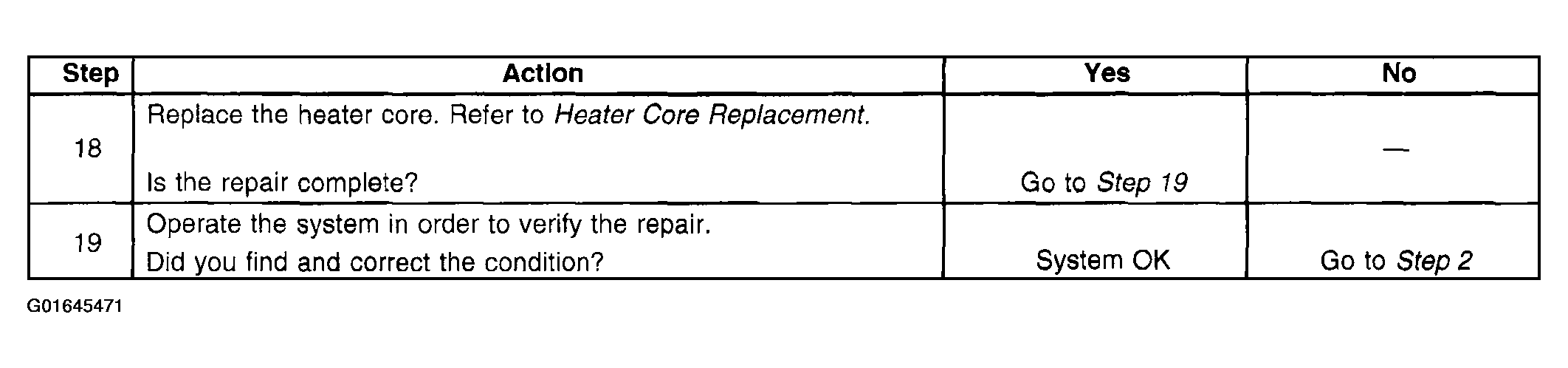

Fig 3: Heating Performance Diagnostic Chart (Front System) (Steps 18-19)
G01645471Courtesy of GENERAL MOTORS CORP.
