Heating Performance Diagnostic (Auxiliary System)

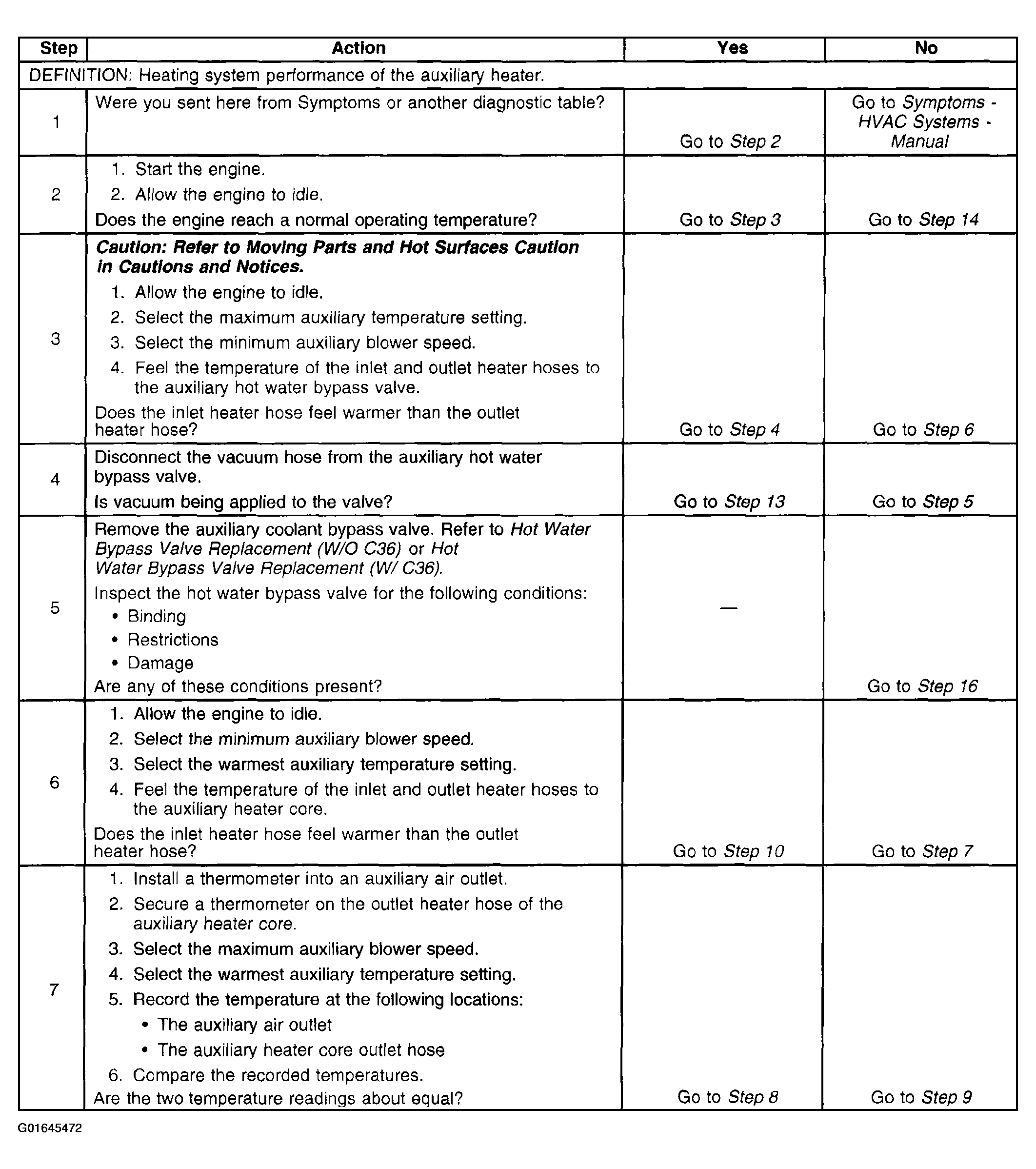

Fig 1: Heating Performance Diagnostic Chart (Auxiliary System) (Steps 1-7)
G01645472Courtesy of GENERAL MOTORS CORP.

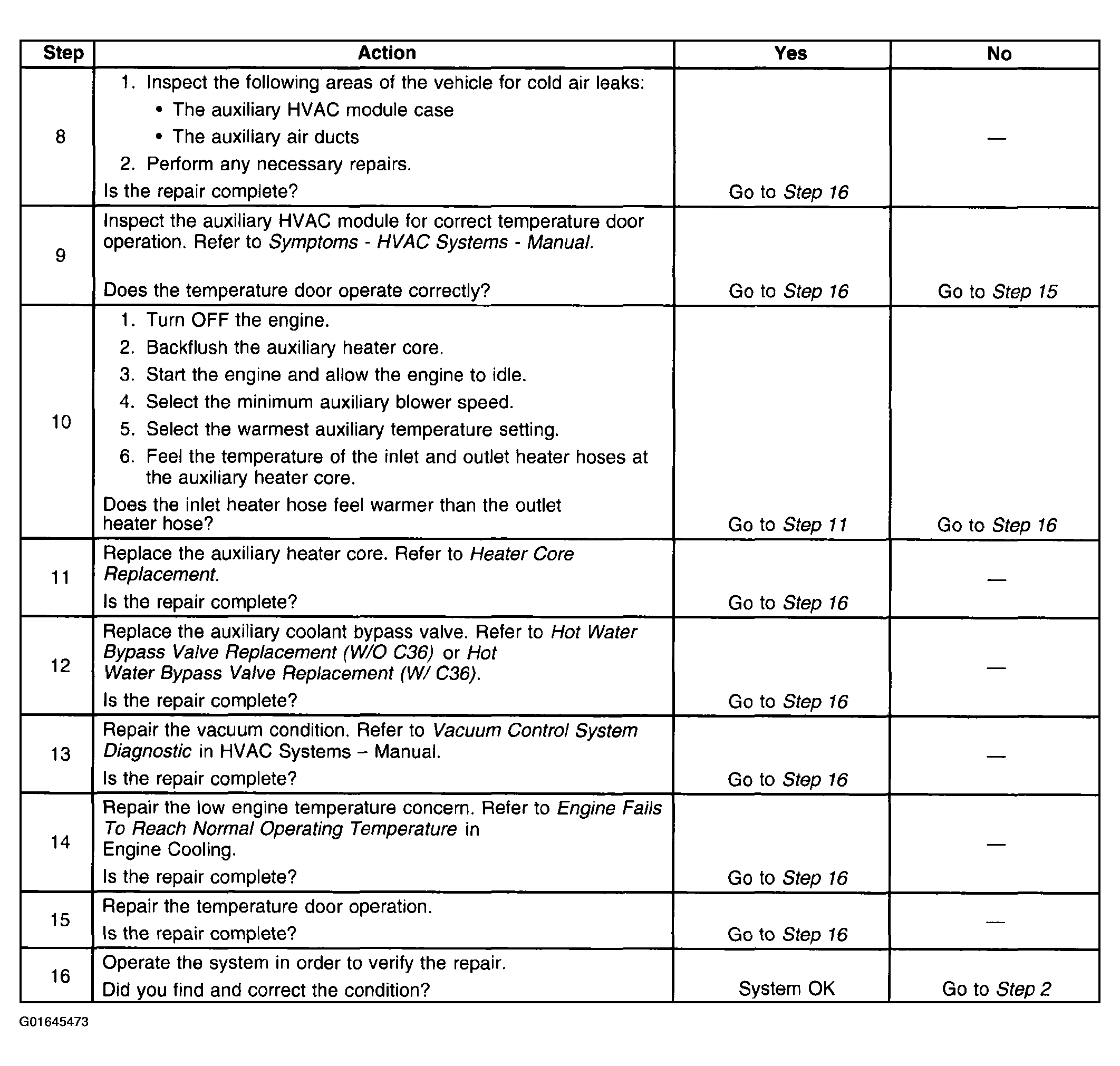

Fig 2: Heating Performance Diagnostic Chart (Auxiliary System) (Steps 8-16)
G01645473Courtesy of GENERAL MOTORS CORP.
