Air Conditioning System Performance Test

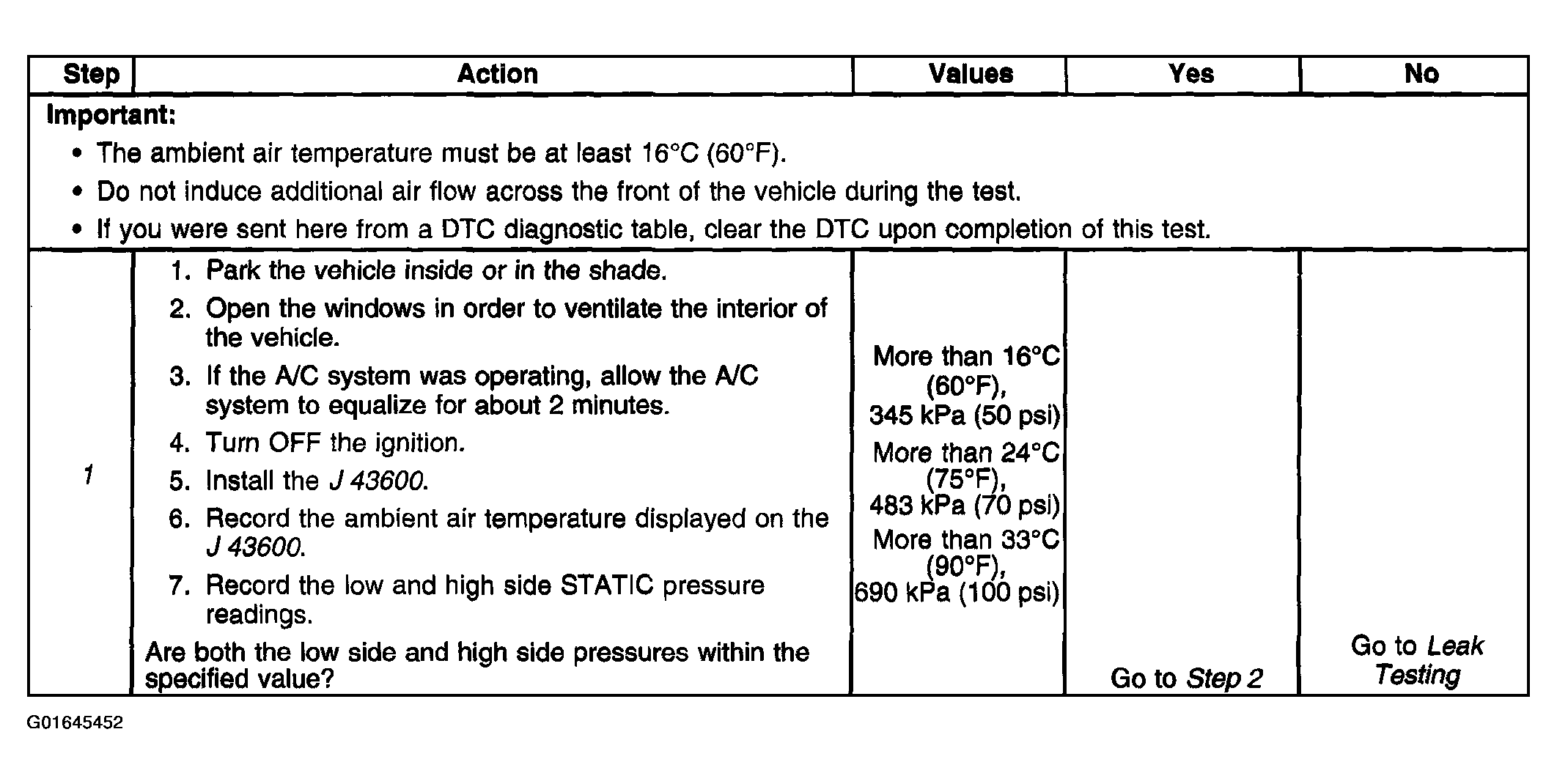

Fig 1: Air Conditioning System Performance Test Chart (Steps 1)
G01645452Courtesy of GENERAL MOTORS CORP.

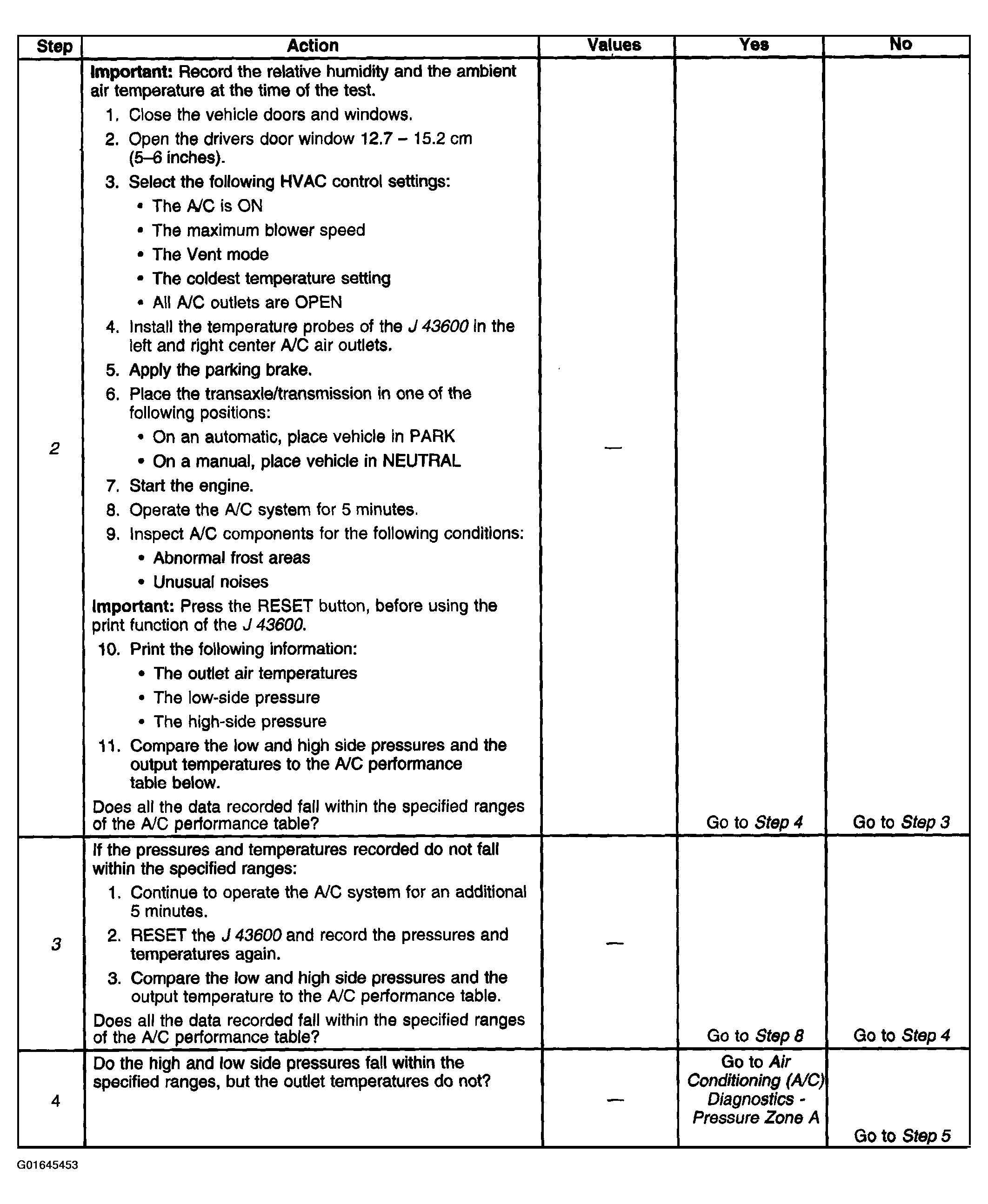

Fig 2: Air Conditioning System Performance Test Chart (Steps 2-4)
G01645453Courtesy of GENERAL MOTORS CORP.

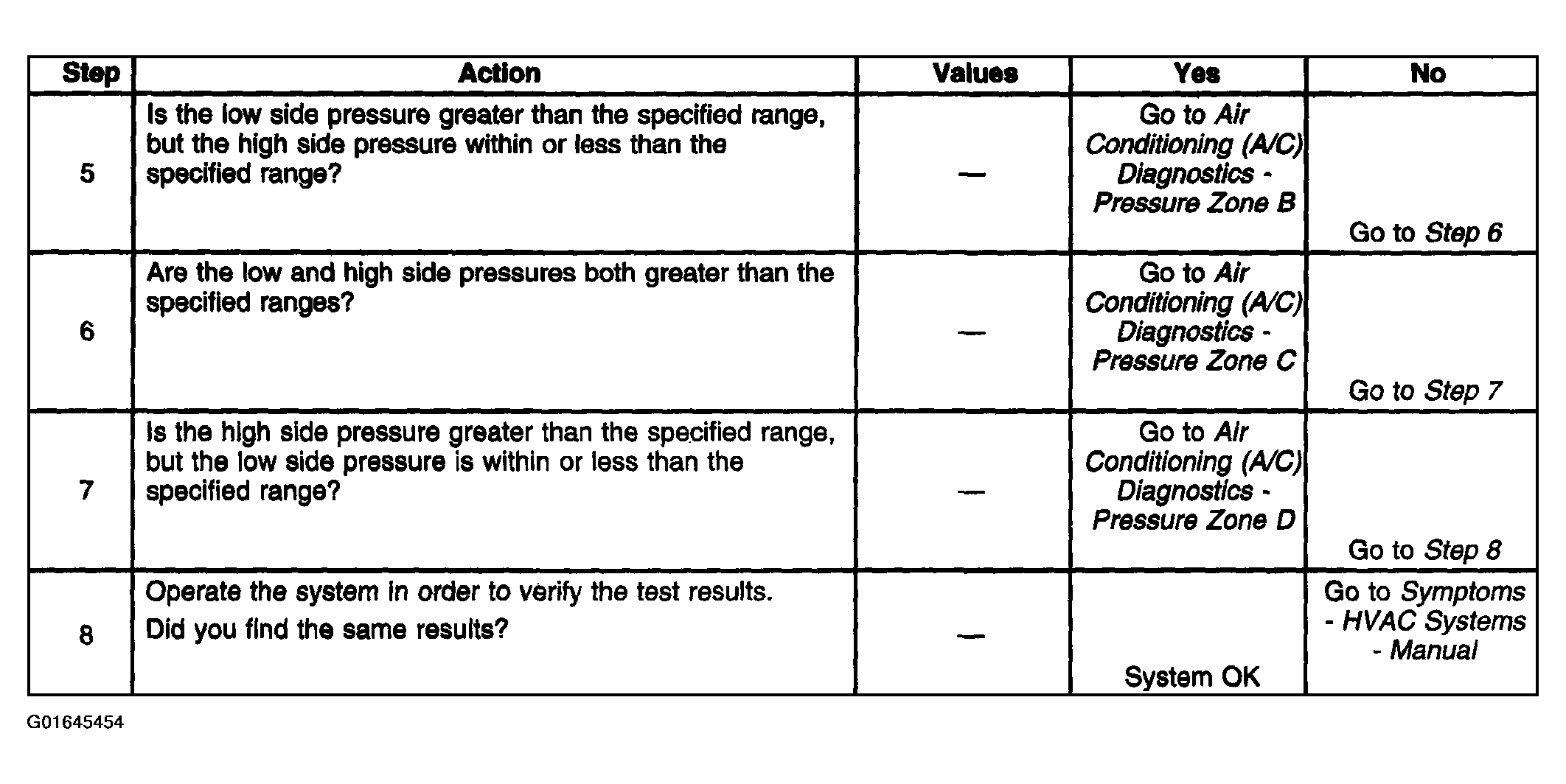

Fig 3: Air Conditioning System Performance Test Chart (Steps 5-8)
G01645454Courtesy of GENERAL MOTORS CORP.
