A/C Performance Table With Rear A/C

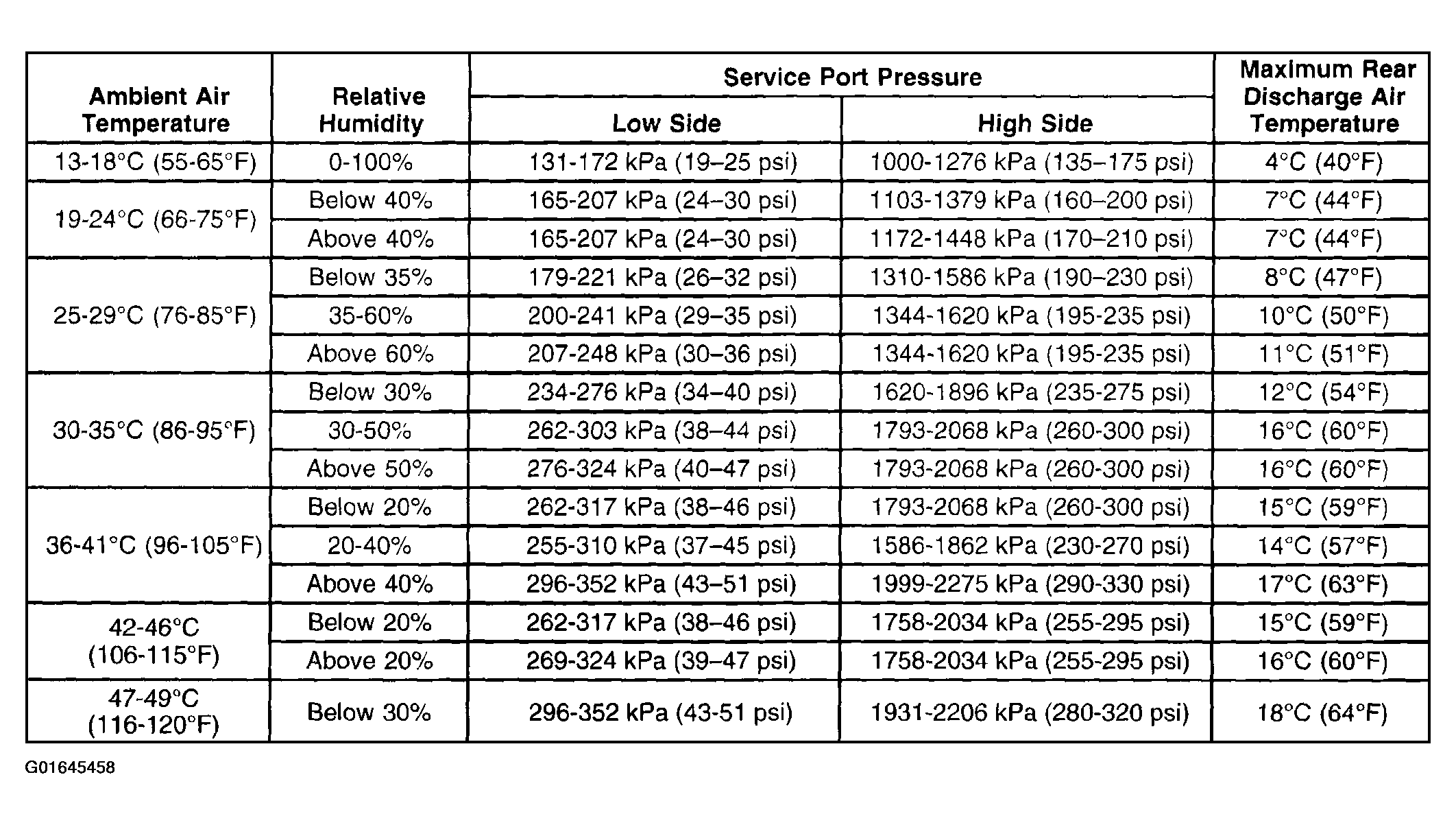

Fig 1: A/C Performance Table With Rear A/C
G01645458Courtesy of GENERAL MOTORS CORP.
