Air Conditioning (A/C) Diagnostics - Pressure Zone D

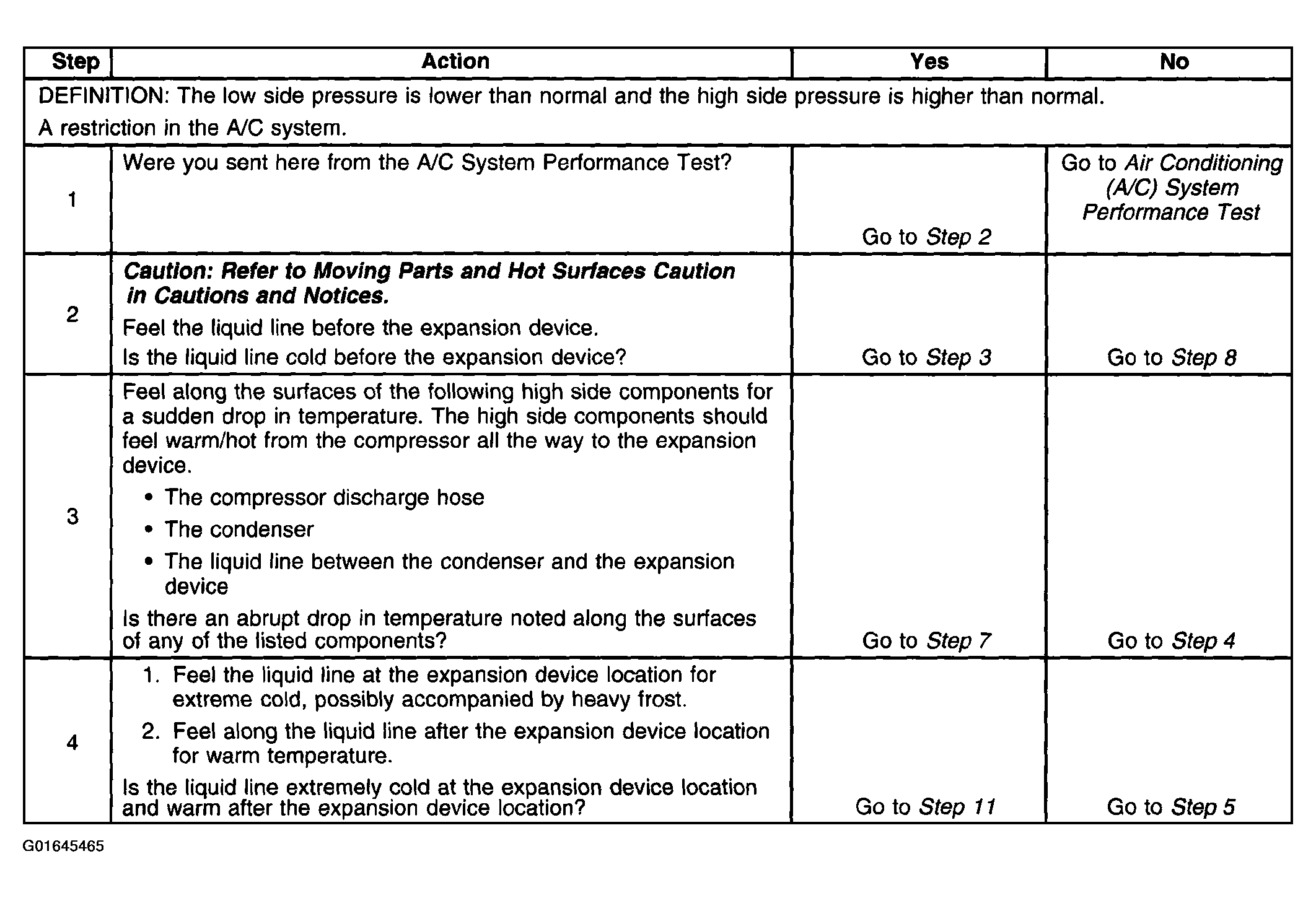

Fig 1: Air Conditioning Diagnostics Chart - Pressure Zone D (Steps 1-4)
G01645465Courtesy of GENERAL MOTORS CORP.

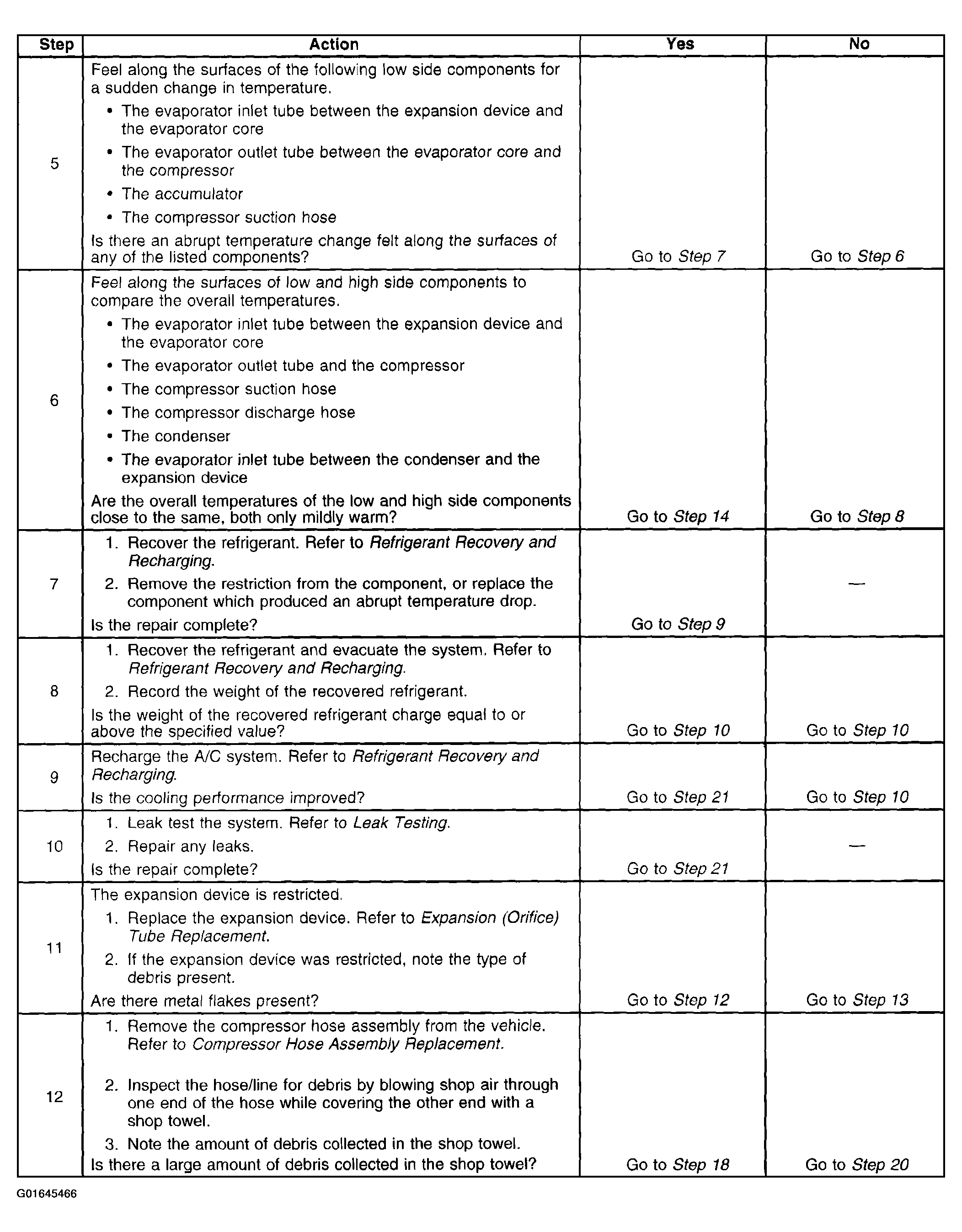

Fig 2: Air Conditioning Diagnostics Chart - Pressure Zone D (Steps 5-12)
G01645466Courtesy of GENERAL MOTORS CORP.

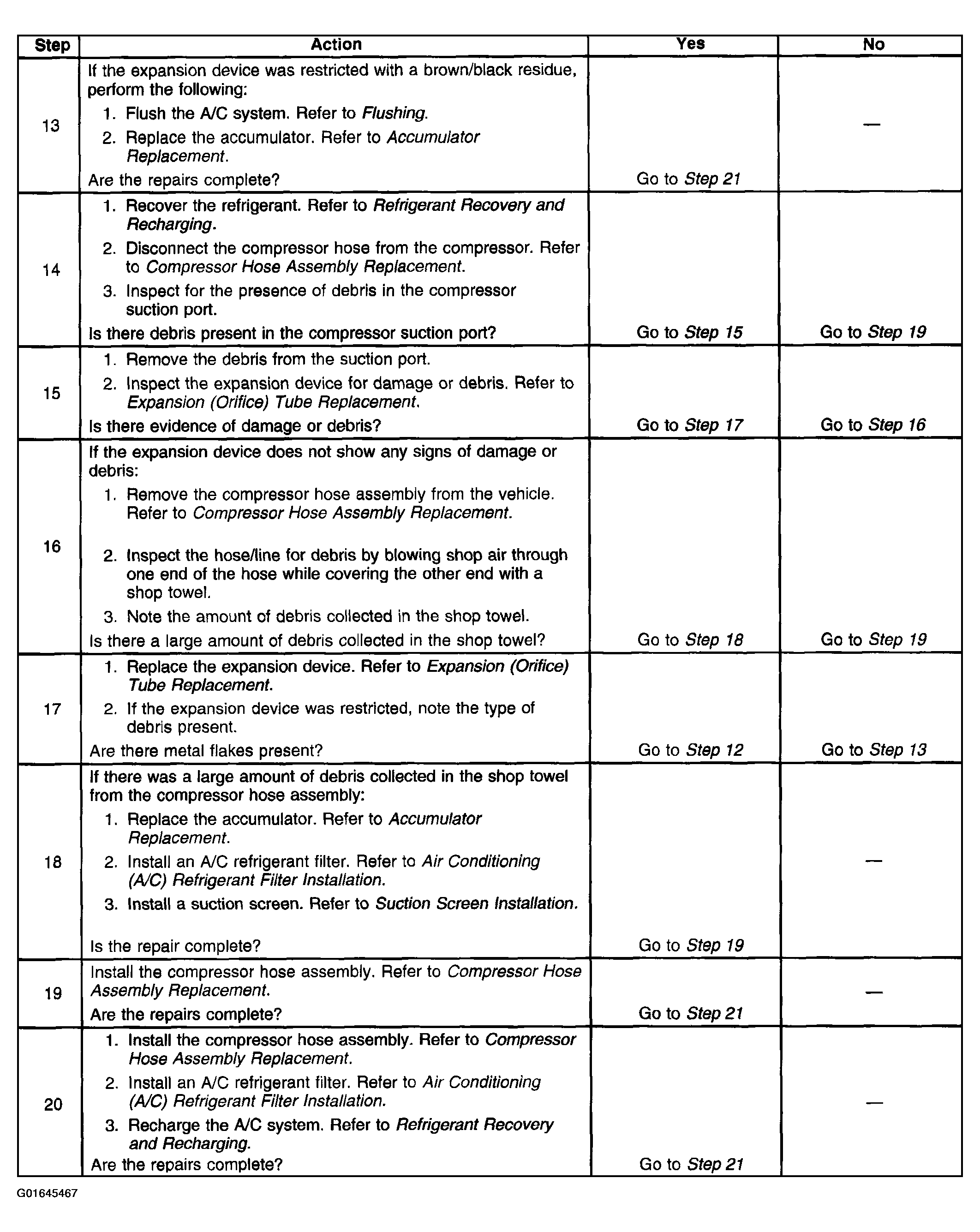

Fig 3: Air Conditioning Diagnostics Chart - Pressure Zone D (Steps 13-20)
G01645467Courtesy of GENERAL MOTORS CORP.

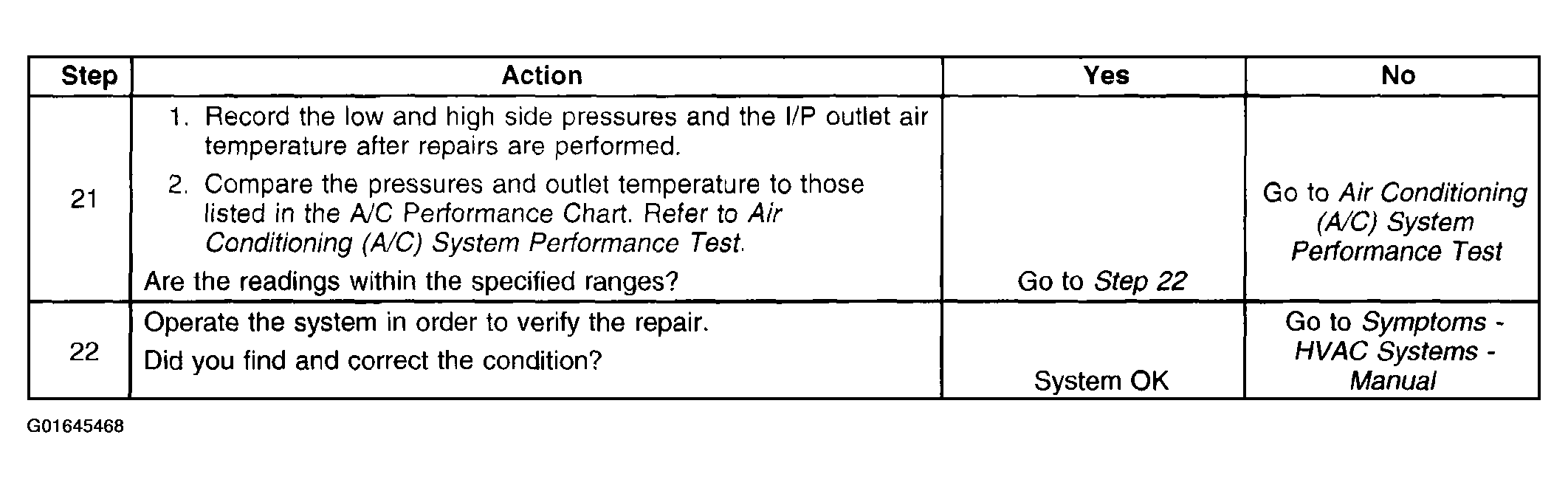

Fig 4: Air Conditioning Diagnostics Chart - Pressure Zone D (Steps 21-22)
G01645468Courtesy of GENERAL MOTORS CORP.
