Air Conditioning (A/C) Diagnostics - Pressure Zone C

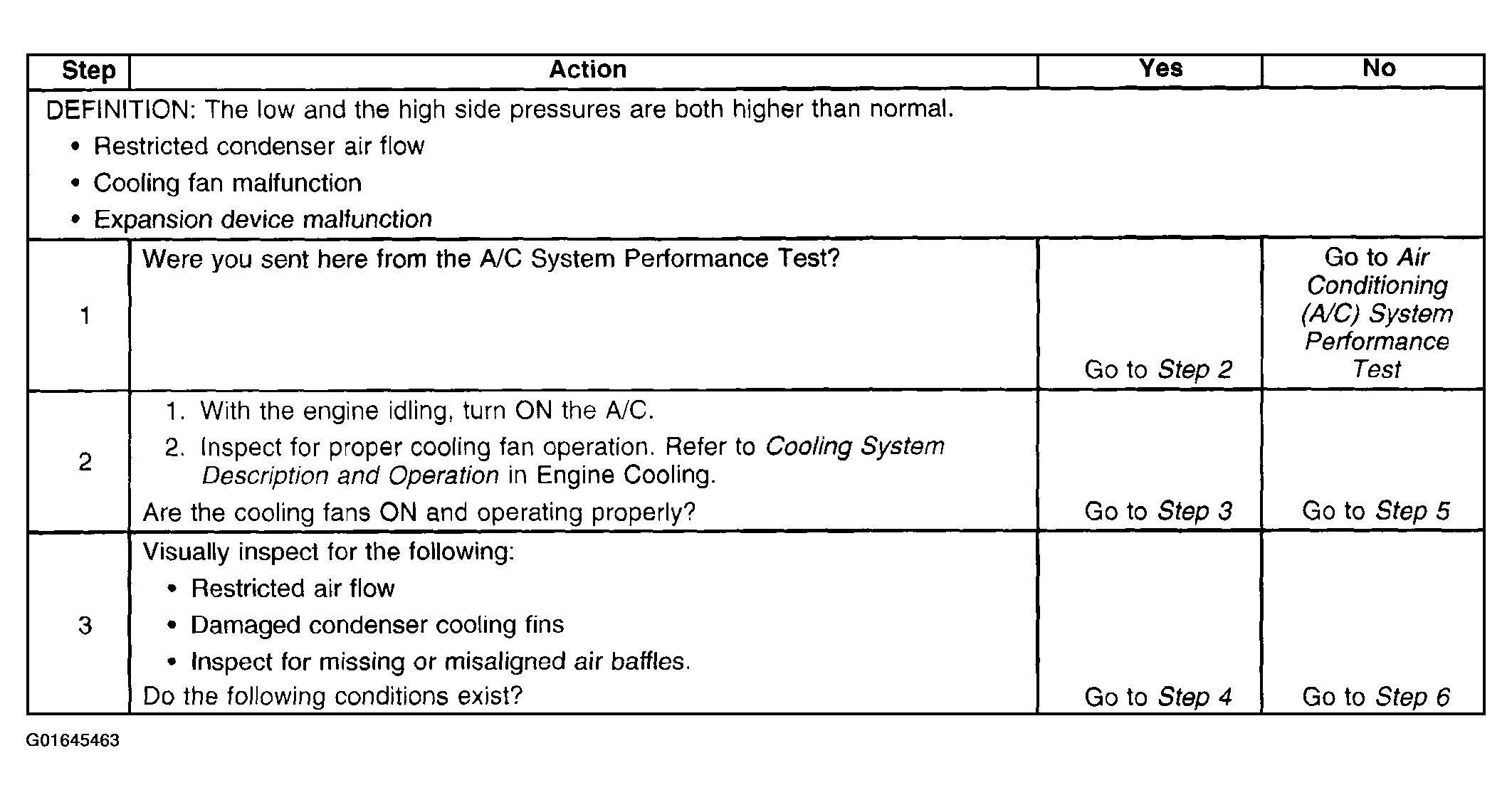

Fig 1: Air Conditioning Diagnostics Chart - Pressure Zone C (Steps 1-3)
G01645463Courtesy of GENERAL MOTORS CORP.

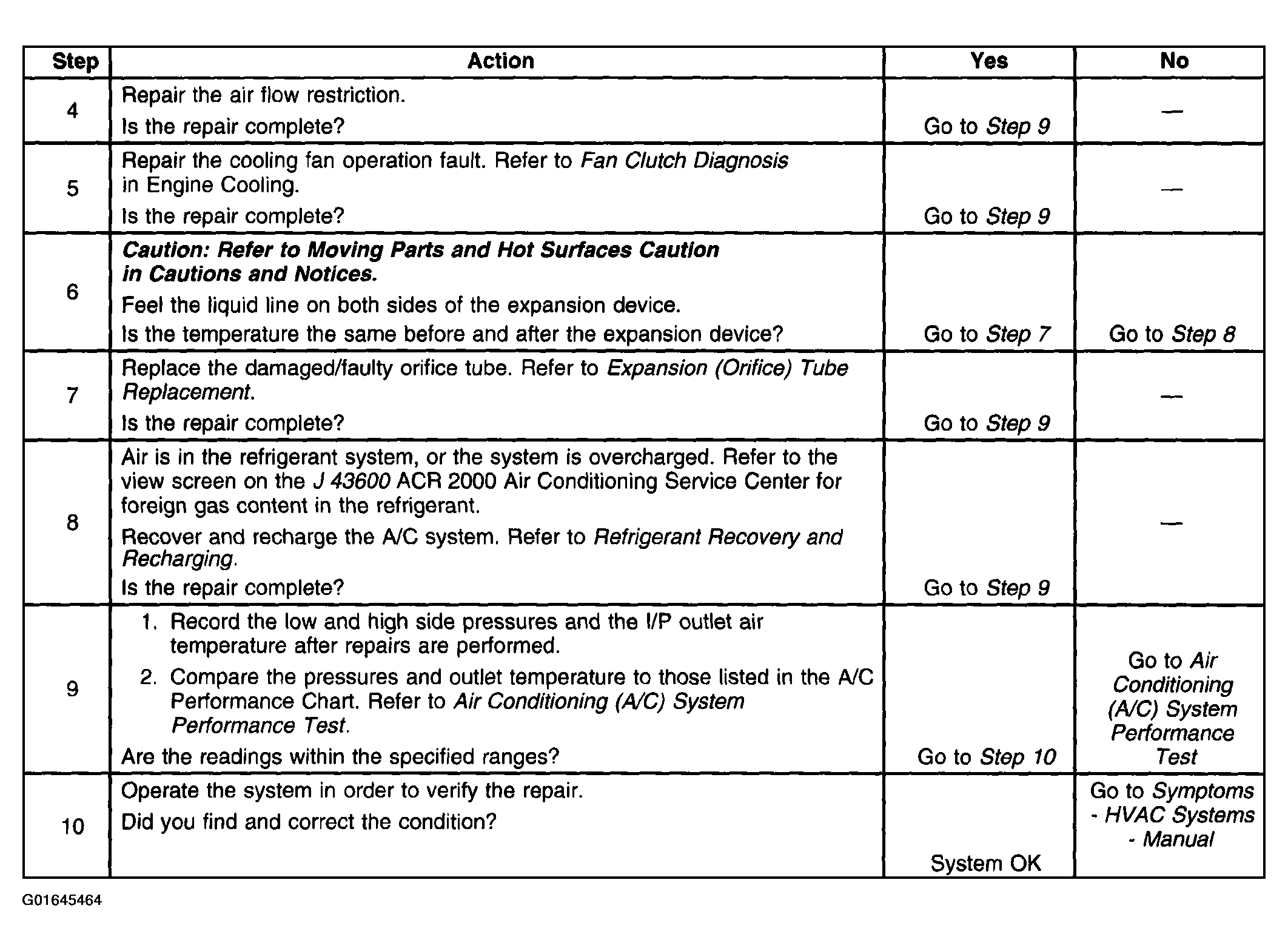

Fig 2: Air Conditioning Diagnostics Chart - Pressure Zone C (Steps 4-10)
G01645464Courtesy of GENERAL MOTORS CORP.
