Air Conditioning (A/C) Diagnostics - Pressure Zone B

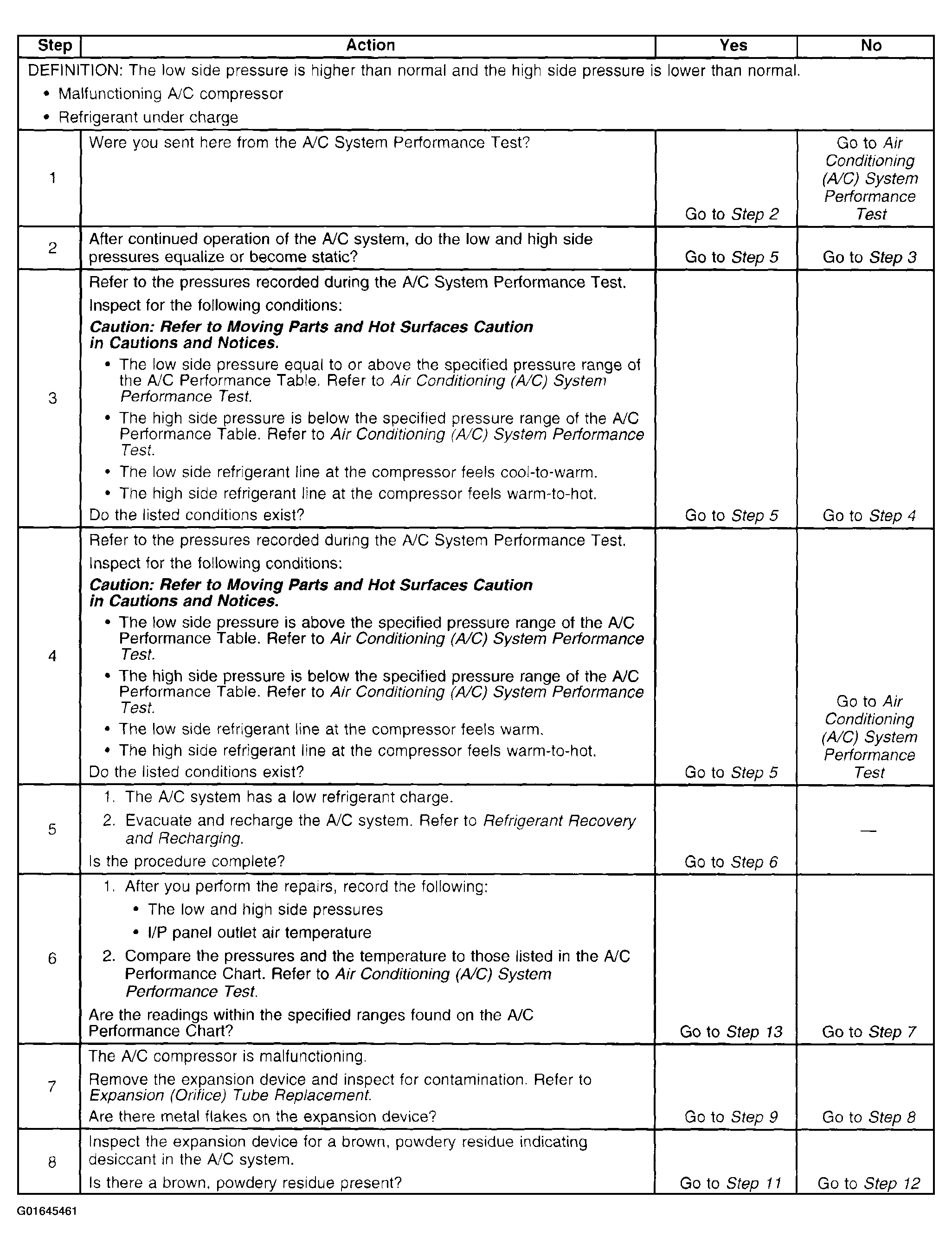

Fig 1: Air Conditioning Diagnostics Chart - Pressure Zone B (Steps 1-8)
G01645461Courtesy of GENERAL MOTORS CORP.

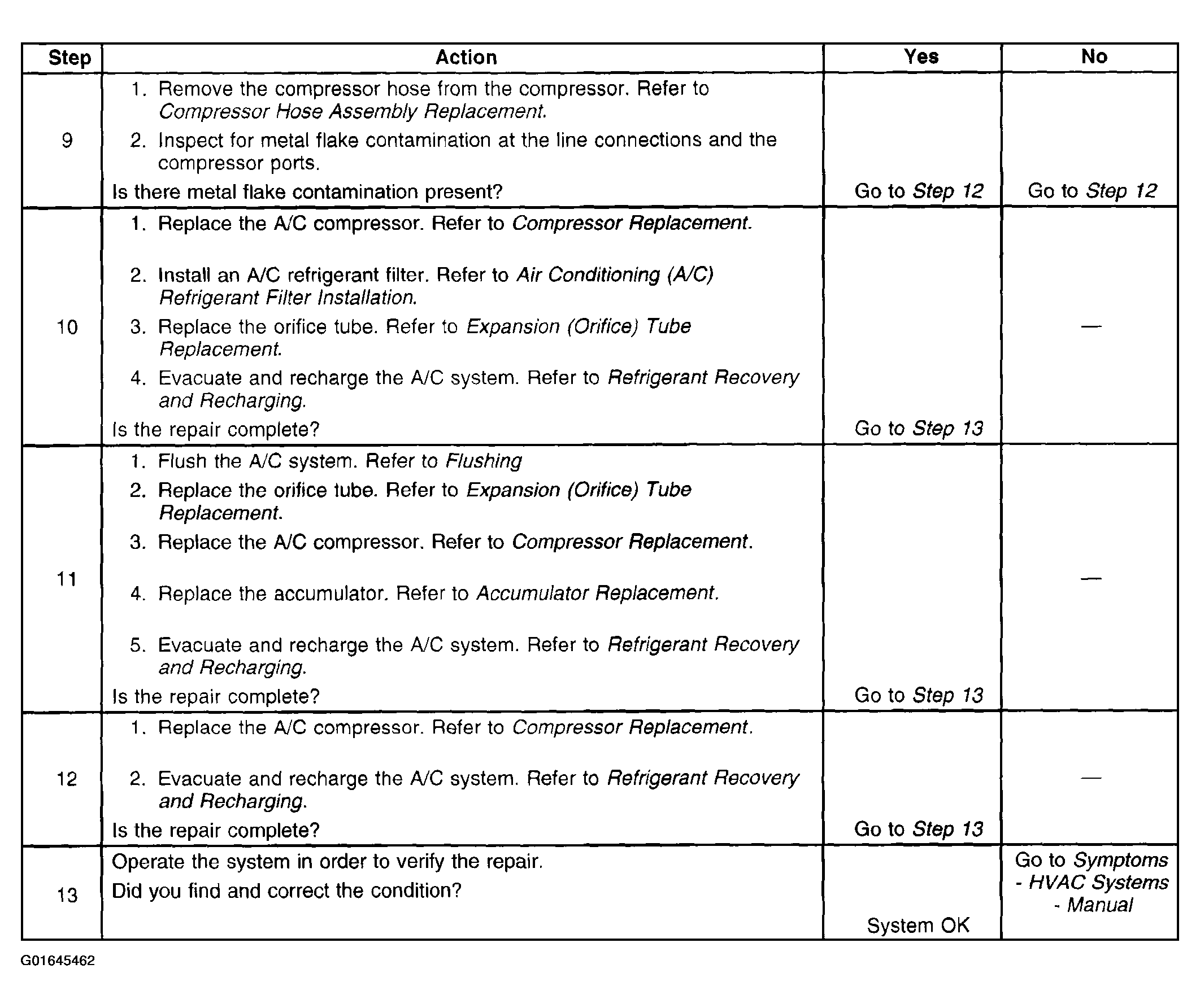

Fig 2: Air Conditioning Diagnostics Chart - Pressure Zone B (Steps 9-13)
G01645462Courtesy of GENERAL MOTORS CORP.
