Air Conditioning (A/C) Diagnostics - Pressure Zone A

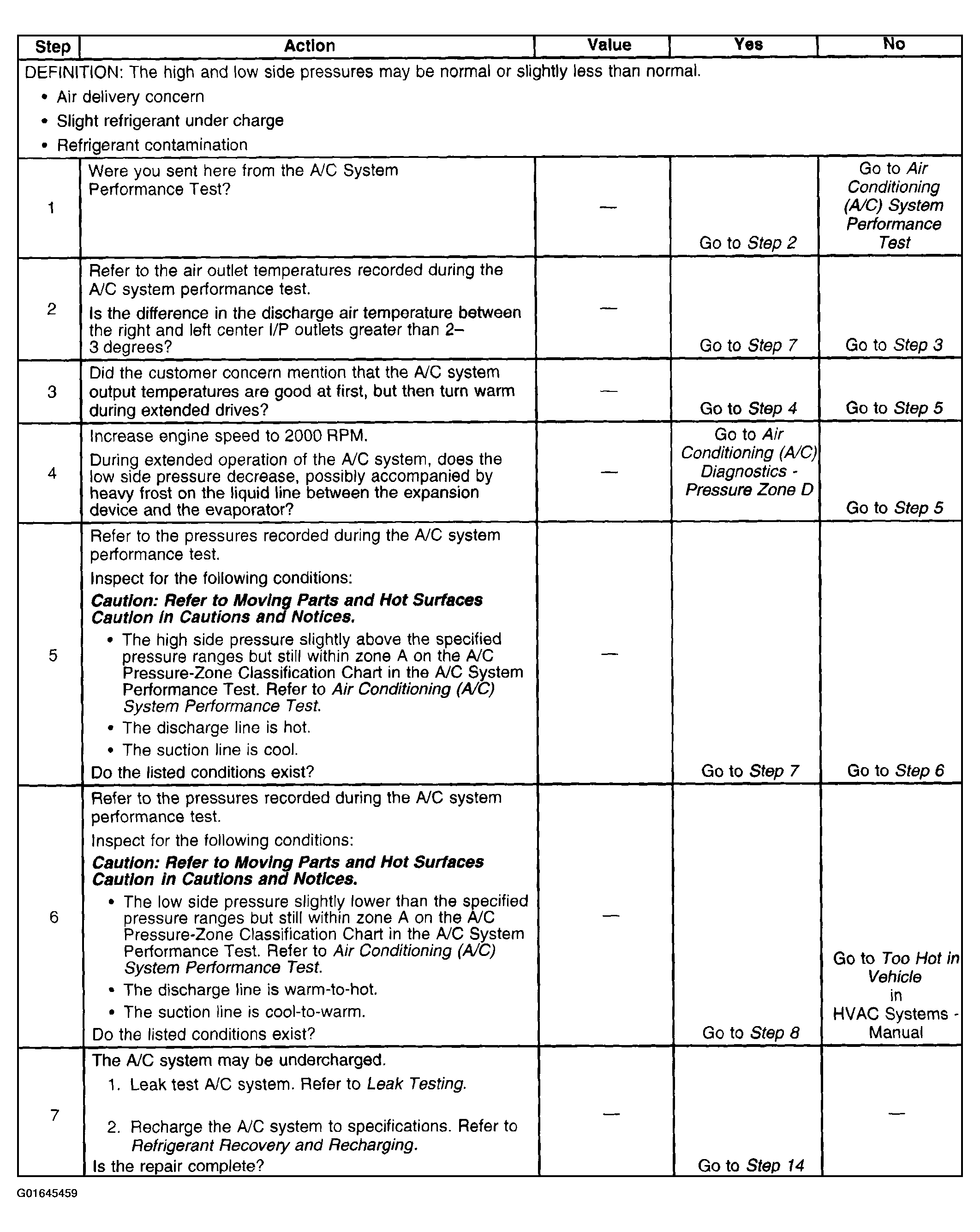

Fig 1: Air Conditioning Diagnostics Chart - Pressure Zone A (Steps 1-7)
G01645459Courtesy of GENERAL MOTORS CORP.

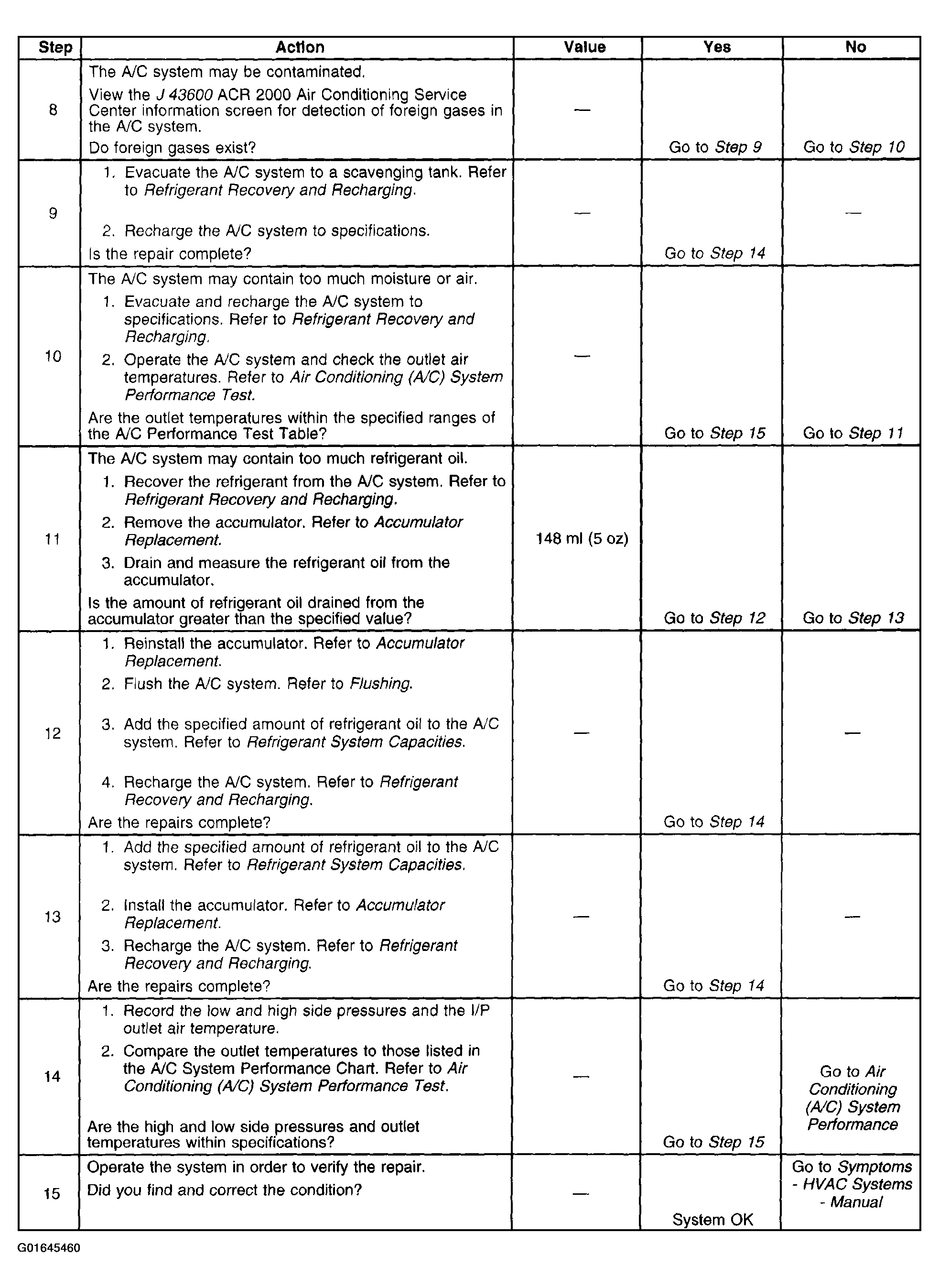

Fig 2: Air Conditioning Diagnostics Chart - Pressure Zone A (Steps 8-15)
G01645460Courtesy of GENERAL MOTORS CORP.
