HVAC Schematics (Front Blower Controls w/o Front A/C)

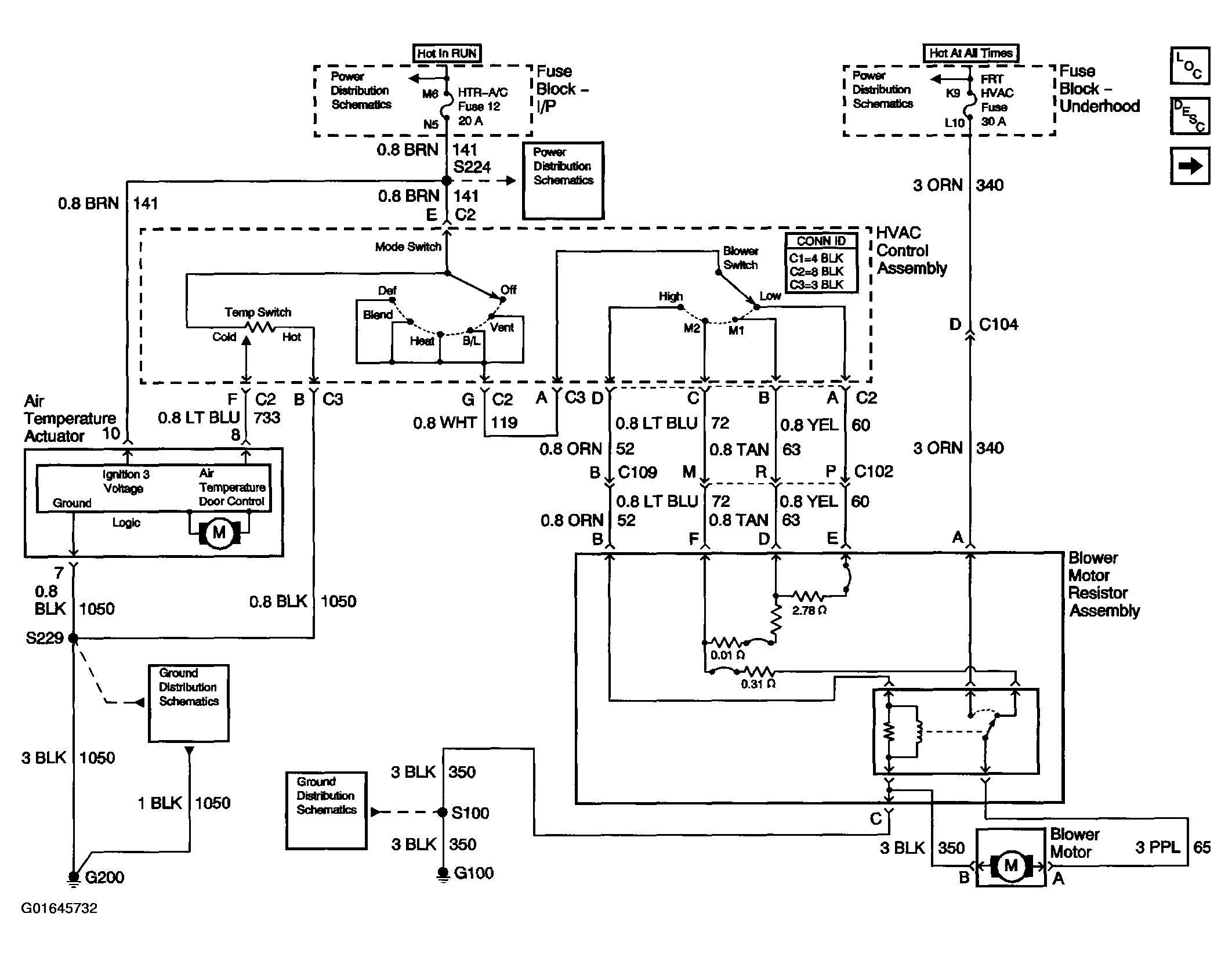

Fig 1: HVAC Schematics (Front Blower Controls W/O Front A/C)

Courtesy of GENERAL MOTORS CORP.

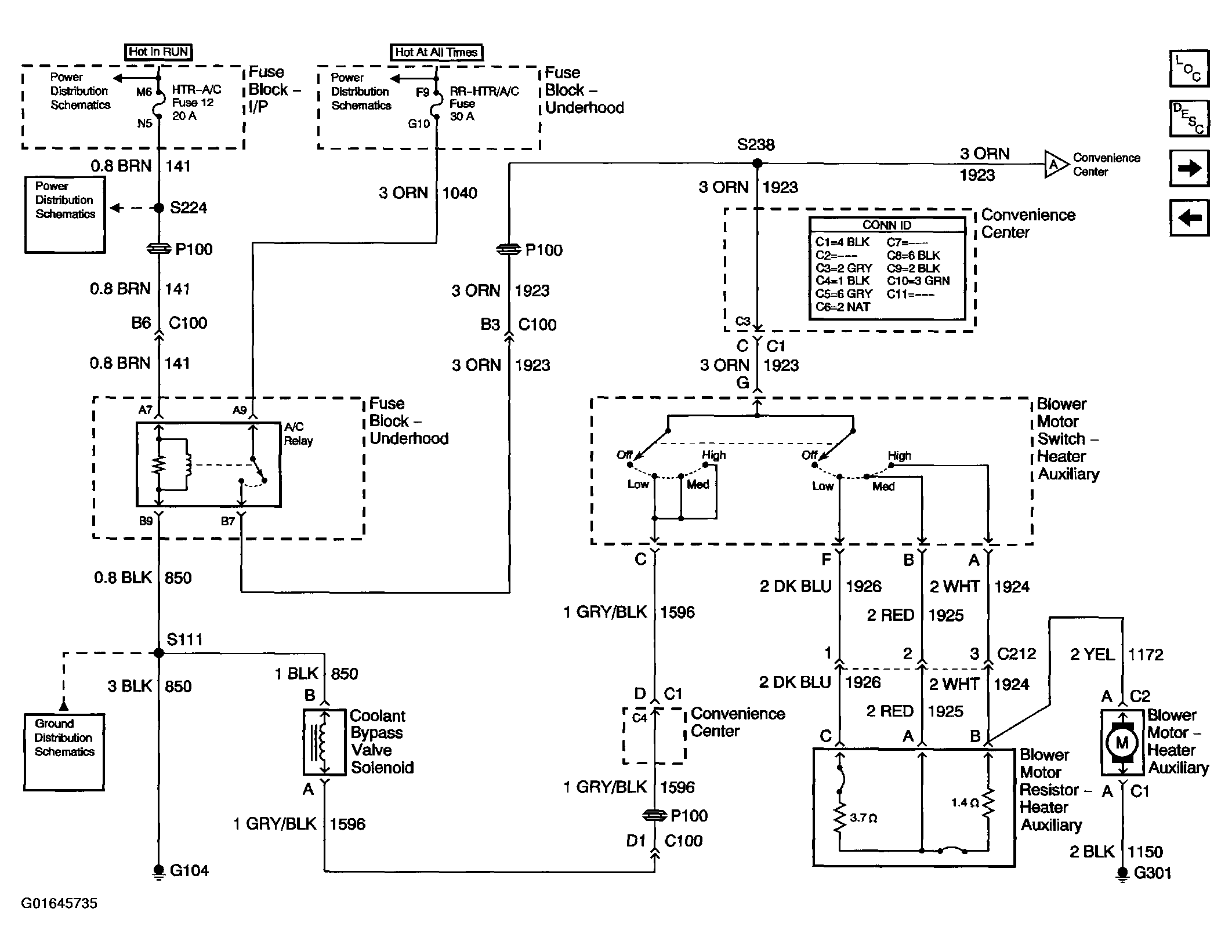

Fig 2: HVAC Schematics (Rear Blower Controls W/O Rear A/C)

Courtesy of GENERAL MOTORS CORP.

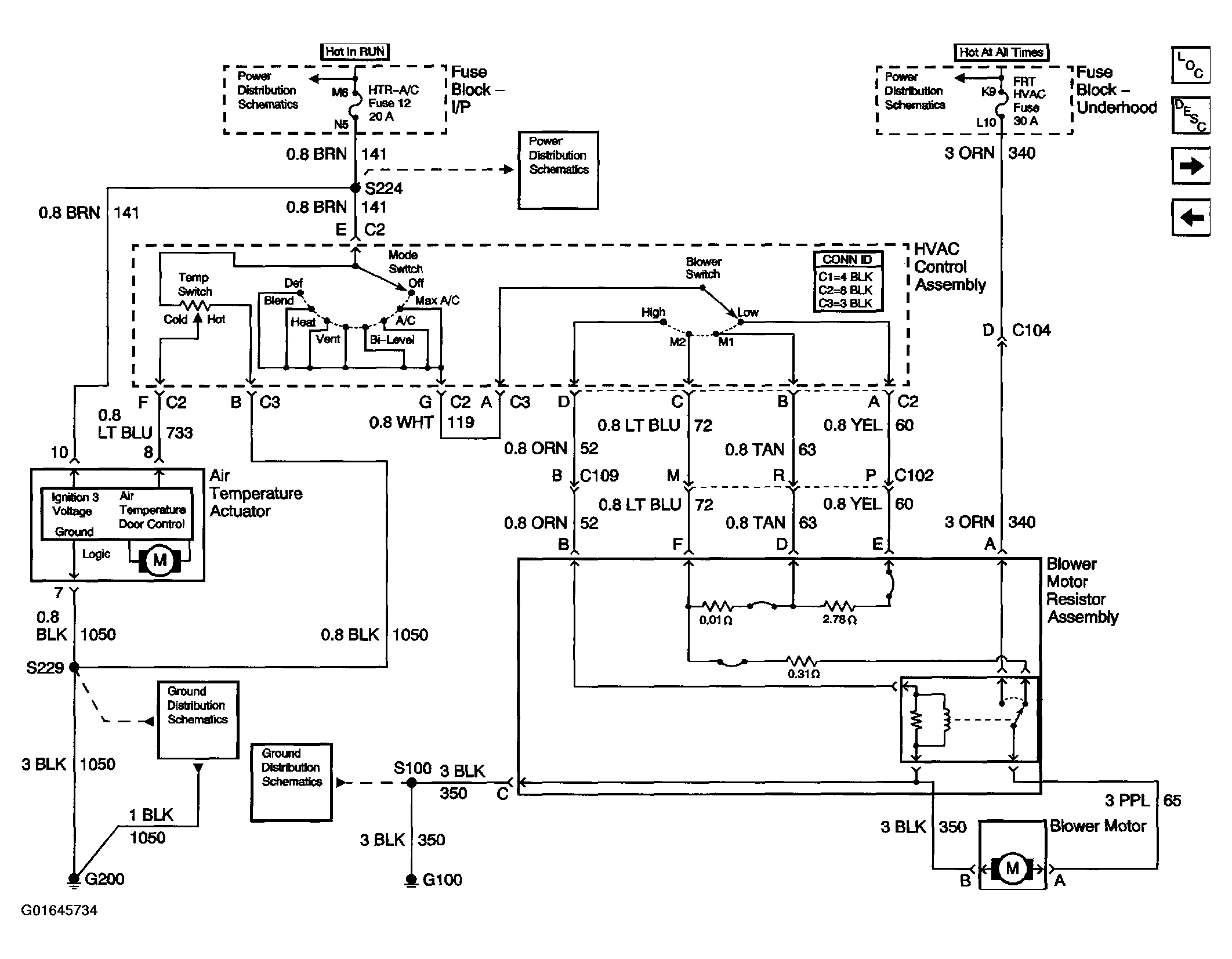

Fig 3: HVAC Schematics (Front Blower Controls W/ Front A/C)

Courtesy of GENERAL MOTORS CORP.

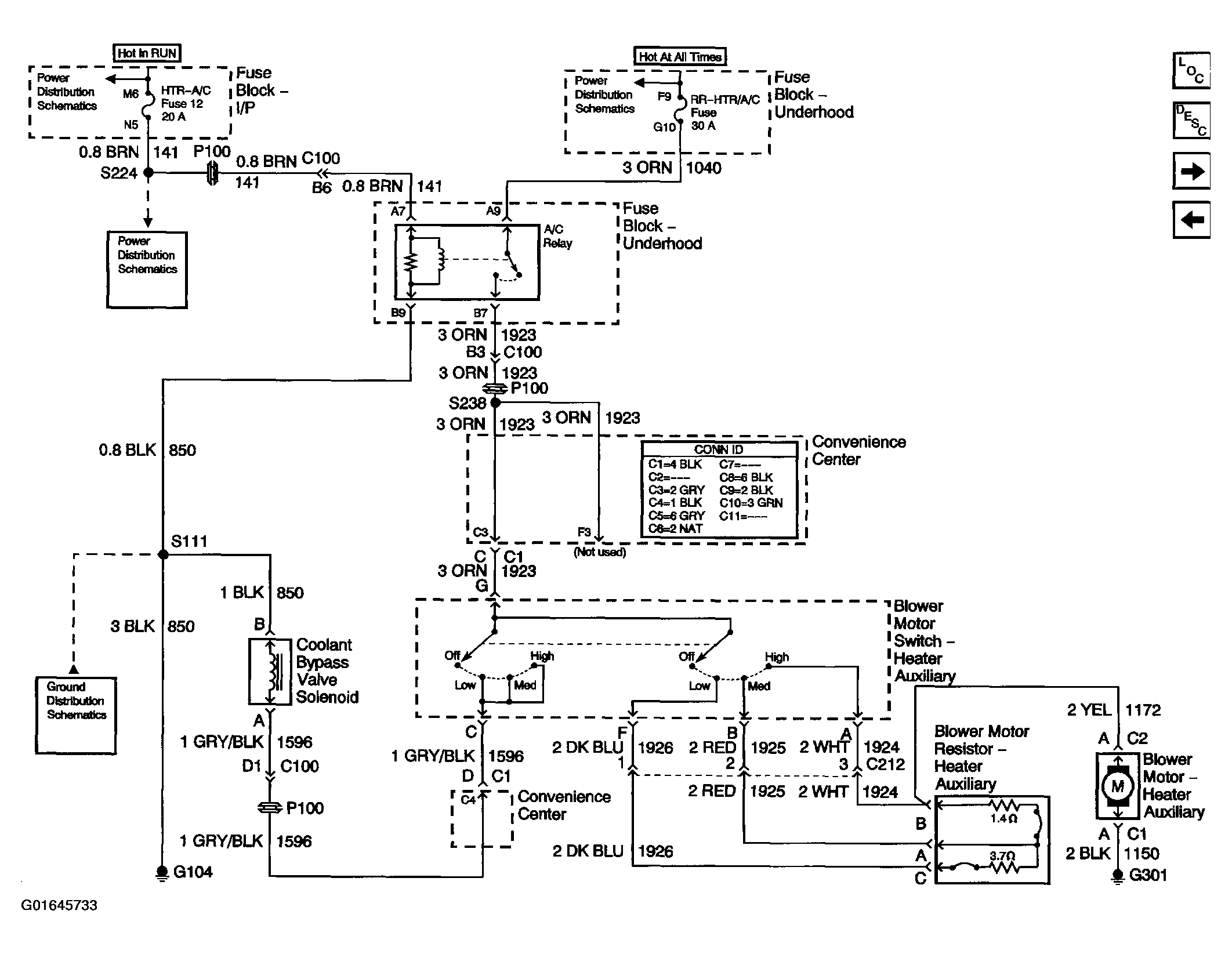

Fig 4: HVAC Schematics (Rear Blower Controls W/ Rear A/C (1 Of 2))

Courtesy of GENERAL MOTORS CORP.

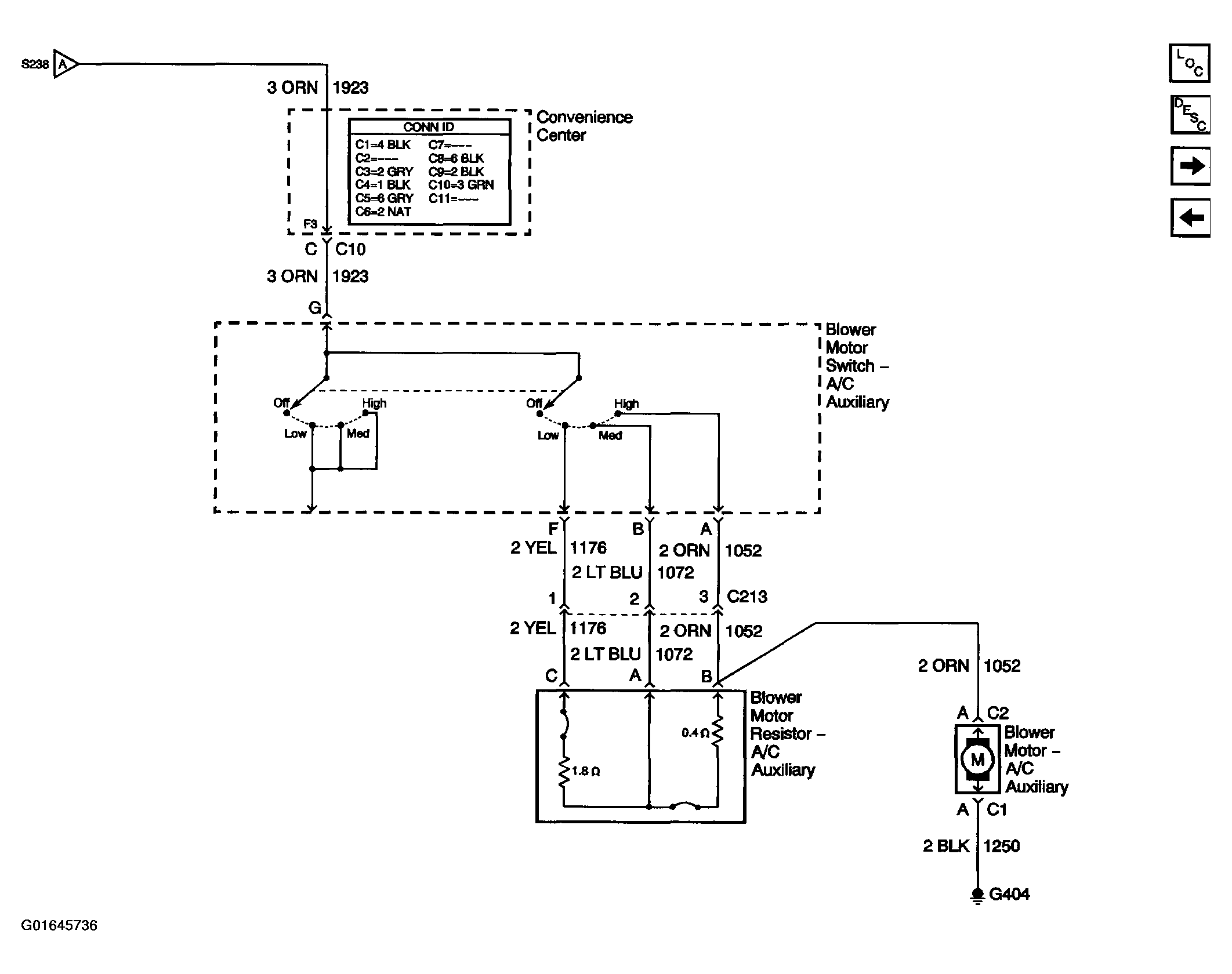

Fig 5: HVAC Schematics (Rear Blower Controls W/ Rear A/C (2 Of 2))

Courtesy of GENERAL MOTORS CORP.

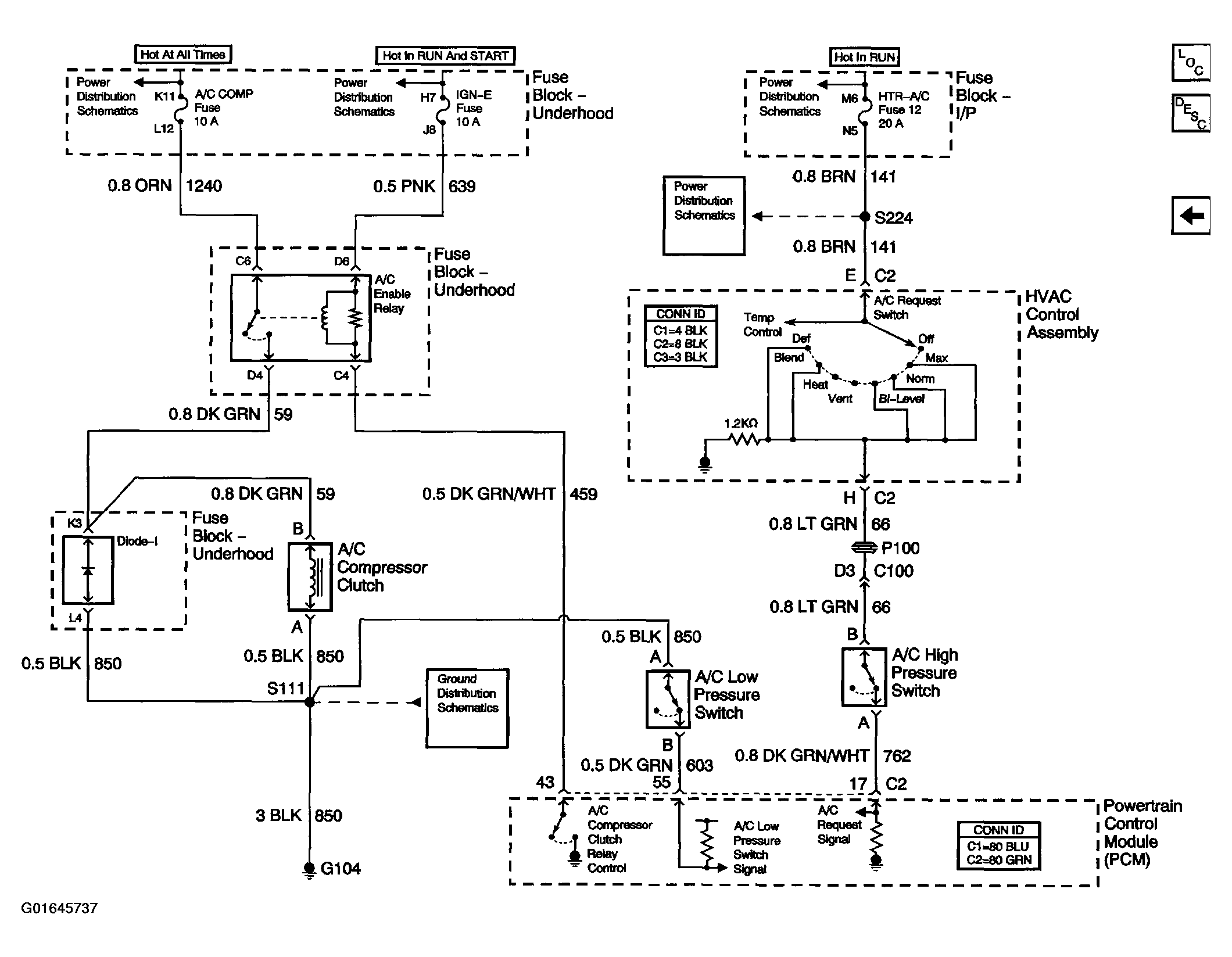

Fig 6: HVAC Schematics (Compressor Controls)

Courtesy of GENERAL MOTORS CORP.

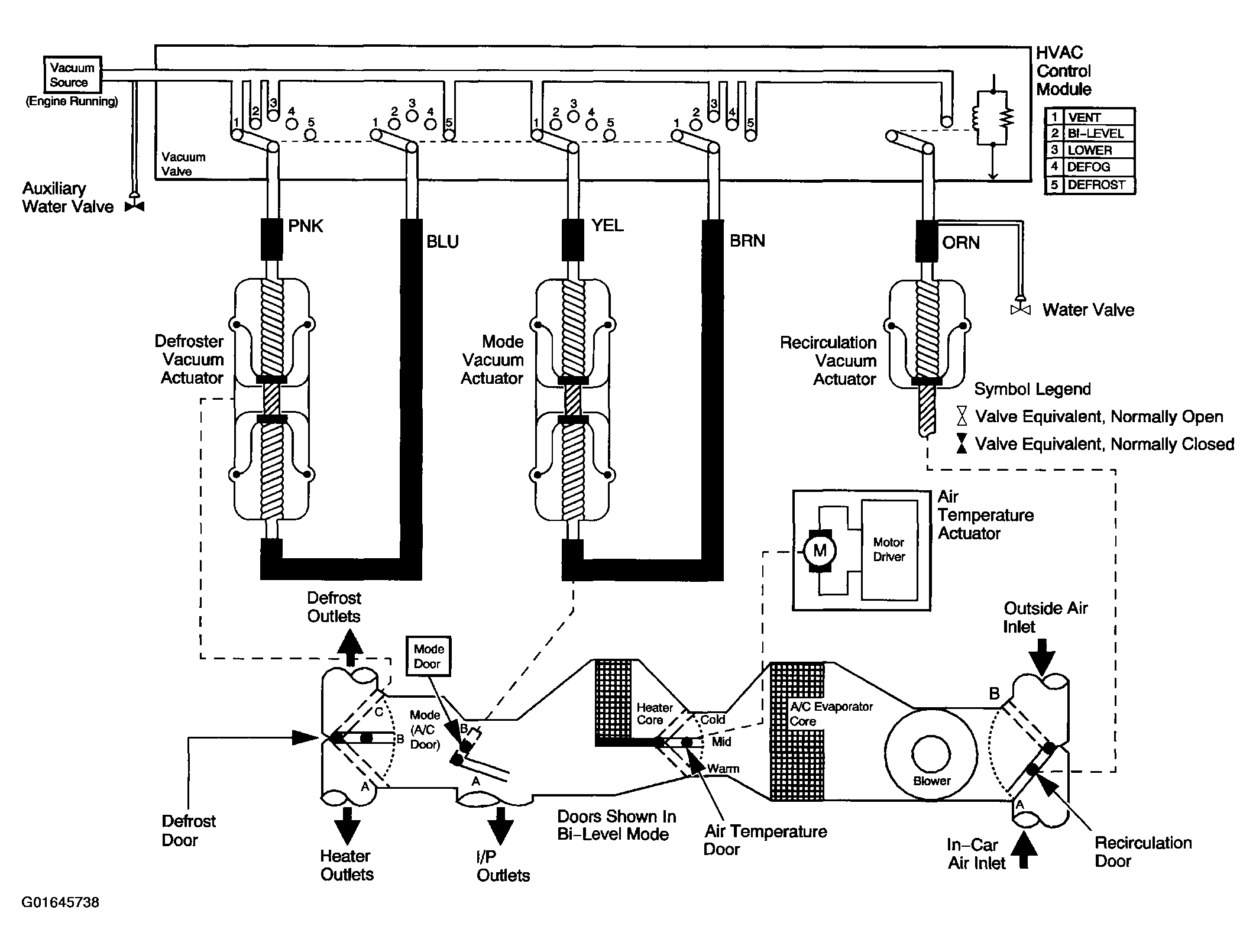

Fig 7: HVAC Vacuum Schematics

Courtesy of GENERAL MOTORS CORP.
