Removal Procedure

  1. Remove the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Controls - 4.3L.
  2. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT - UPPER in Engine Cooling.
  3. Remove the vacuum hoses from the vacuum tank.

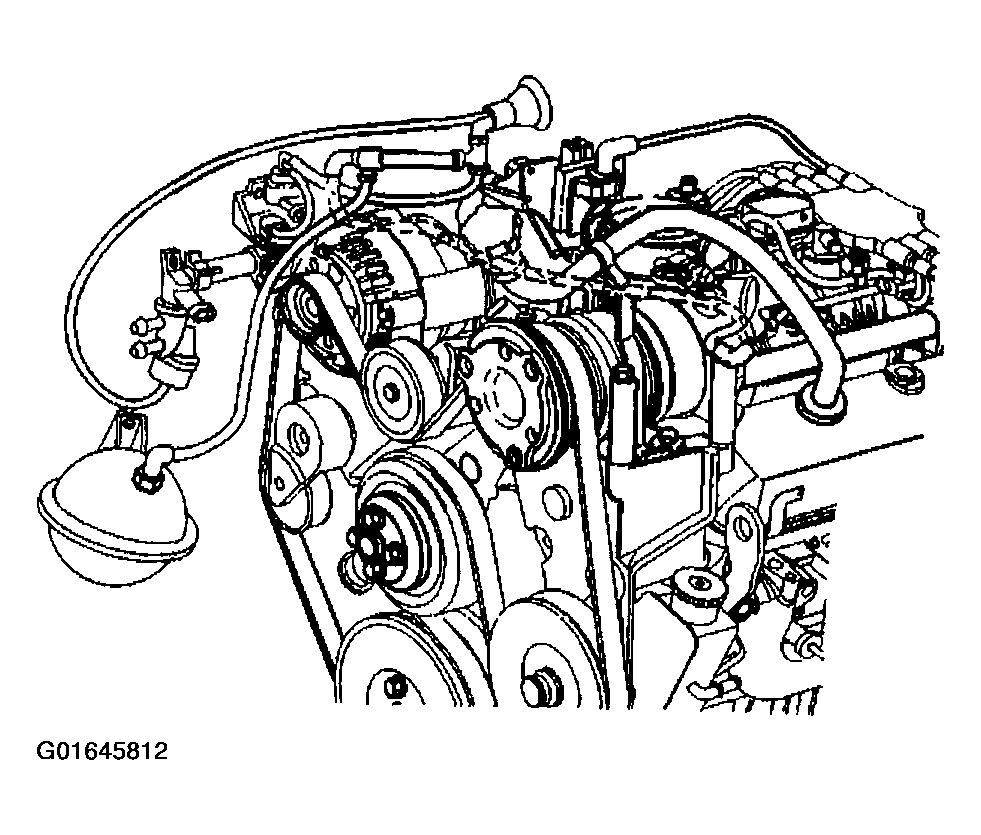

    Fig 1: Removing Vacuum Hoses From Vacuum Tank
    G01645812Courtesy of GENERAL MOTORS CORP.
  4. Remove the vacuum tank mounting screws.
    Fig 2: Vacuum Tank Mounting Screws
    G01645813Courtesy of GENERAL MOTORS CORP.
  5. Remove the vacuum tank.
