Installation Procedure

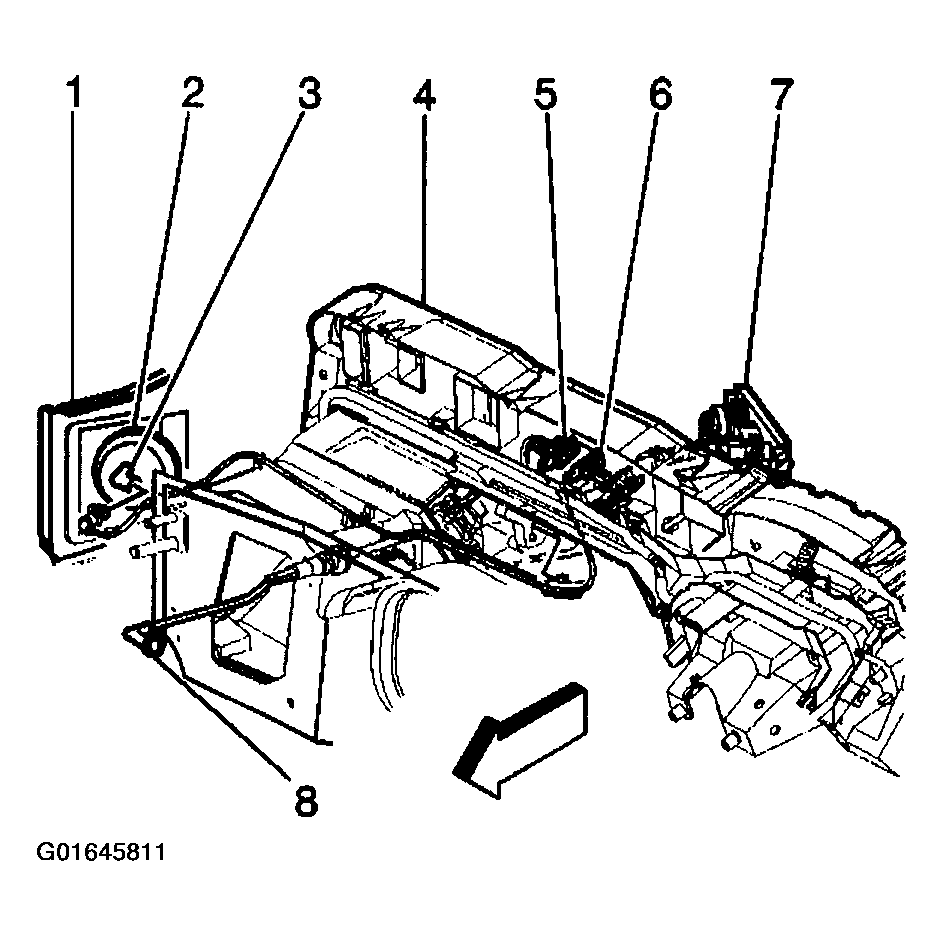

Fig 1: Recirculation Actuator
G01645811Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation actuator to the recirculation door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts that retain the recirculation actuator.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

  3. Install the vacuum hose (3) to the recirculation actuator (2).
  4. Install the right cowl trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE in Interior Trim.
  5. Install the passenger side knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
